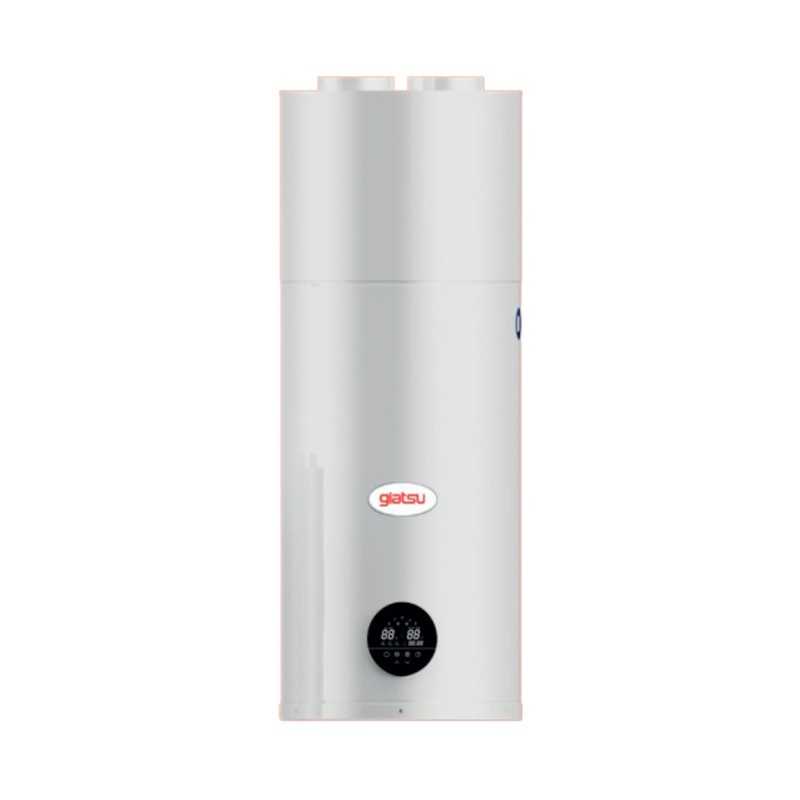

Heat Pump DHW Giatsu GIA-AT-V160MR290A Vitrified
Heat Pump medium capacity aerothermal for sanitary hot water with 160 litre vitrified steel tank and advanced ecological technology with natural R290 refrigerant. This efficient economic team Giatsu combines A+ classification in both climates, magnesium antico-red anode, anti-legionela protection up to 75°C, optimised COP up to 3.40 in warm weather, recovery time of 6h:24min in favorable conditions, L consumption profile for medium families, rotary compressor Inverter, reinforcement resistance of 1,5 kW, connections prepared for photovoltaic PV and Smart Grid essential, ideal for families.
- ▷ Average capacity: 160L economic vitrified with magnesium anode
- ▷ Constant efficiency: A+ in both climates (medium and warm)
- ▷ Upper COP: 3.40 in warm climate with profile L medium-sized families
- ▷ Ecological R290: GWP 3 vs 1.430 traditional synthetic gases
- ▷ Inverter technology: Rotary compressor with maximum efficiency
- ▷ Smart future: WiFi + PV + Smart Grid ready for affordable price
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-AT-V160MR290A - Vitrified steel - Refrigerant Gas R290 (0.15 kg) - Profile L
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump Giatsu GIA-AT-V160MR290A Vitrified
Referencia: GIA-AT-V160MR290A
€924.13
Tax included
We don't have stock right now. Check availability!!
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Giatsu GIA-AT-V160MR290A Vitrified
Heat Pump medium capacity aerothermal for sanitary hot water with 160 litre vitrified steel tank and advanced ecological technology with natural R290 refrigerant. This efficient economic team Giatsu combines A+ classification in both climates, magnesium antico-red anode, anti-legionela protection up to 75°C, optimised COP up to 3.40 in warm weather, recovery time of 6h:24min in favorable conditions, L consumption profile for medium families, rotary compressor Inverter, reinforcement resistance of 1,5 kW, connections prepared for photovoltaic PV and Smart Grid essential, ideal for families.
- ▷ Average capacity: 160L economic vitrified with magnesium anode
- ▷ Constant efficiency: A+ in both climates (medium and warm)
- ▷ Upper COP: 3.40 in warm climate with profile L medium-sized families
- ▷ Ecological R290: GWP 3 vs 1.430 traditional synthetic gases
- ▷ Inverter technology: Rotary compressor with maximum efficiency
- ▷ Smart future: WiFi + PV + Smart Grid ready for affordable price
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-AT-V160MR290A - Vitrified steel - Refrigerant Gas R290 (0.15 kg) - Profile L
Security policy
Delivery policy
Refund policy
Heat Pump DHW Giatsu GIA-AT-V160MR290A Vitrified
Average capacity 160L 日本語 Profile L Families Δ R290 Ecological Δ Price Accessible
Perfect Media Capacity with Economic Ecological Technology
The heat pump DHW GIA-AT-V160MR290A of Giatsu represents the ideal solution for medium-sized families looking for the perfect balance between sufficient capacity and affordable price, combining a 160-liter vitrified steel tank with the revolutionary natural R290 coolant and rotary compressor Inverter. With constant A+ energy rating in both climates and L consumption profile specifically designed for families of 3-4 people, this economic team offers a COP of up to 3.40 and up to 70% energy savings without compromising essential benefits.
Especially optimized for medium-sized families that require more capacity than the basic models of 100L but without reaching the large capacities, the GIA-AT-V160MR290A incorporates antico-reel magnesium anode and automatic anti-legionela protection up to 75°C, ensuring safe water for the entire family with basic economic maintenance. Its R290 coolant with only 3 GWP sets new sustainability standards in the medium-economic capacity segment.
The optimized dimensions of Ø510×1715 mm maintain the same compact diameter as the 100L model but with higher height to accommodate the 160L capacity, while the weight of 73 kg allows professional installation without structural complications. The connections prepared for PV and Smart Grid photovoltaic, together with integrated WiFi connectivity, ensure future compatibility with intelligent renewable and domotic energies, making this model the perfect choice for families seeking medium capacity, energy efficiency, ecological sustainability and competitive price on a single team.
Technical Specifications Medium Capacity
Capacity and Performance
- Capacity: 160 litres
- Total power: 1,10 kW
- Nominal power: 500W
- COP 7°C: 2,86
- COP 20°C: 3,40
- Classification: A+ (both climates)
Operational characteristics
- Time recovery: 7h:48min (7°C) / 6h:24min (20°C)
- SCOP: 2,86 (7°C) / 3.30 (14°C)
- Profile declared: L (middle families)
- Resistance: 1.5 kW
- Maximum DHW: 75°C
- Continuous flow: 23.6 L/h
Technology and Materials
- Refrigerant Gas: R290 (0.15 kg)
- GWP: 3 (ecological)
- Deposit: Vitrified steel
- Protection: Magnesium anode
- Exchanger: Microchannel
- Sound level: 55 dB(A)
Connectivity and Installation
- Dimensions: Ø510×1715 mm
- Net weight: 73 kg
- WiFi: Integrated
- Smart Grid: Ready
- Connection PV: Ready
- Code: GIA-AT-V160MR290A
Exclusive advantages Economic Media Capacity
A️ Perfect Capacity
160L ideal balance between 100L basic and 200L+ large. Profile L families 3-4 people.
Economic Ecology
R290 GWP 3 + Inverter compressor at affordable price. Sustainability without premium.
Improved COP
3.40 in warm climate vs 3.13 of model 100L. Increased efficiency with more capacity.
ROI Exceptional
60% more capacity than 100L with minimal incremental price. Maximum economic value.
Comparison V100 vs V160 Vitrified
| Feature | GIA-AT-V100MR290A | GIA-AT-V160MR290A | Variance |
|---|---|---|---|
| Capacity | 100L | 160L | +60L (60% more) |
| COP warm weather | 3,13 | 3,40 | +0.27 (better) |
| SCOP 14°C | 3,10 | 3,30 | +0.20 (best) |
| Recovery time 20°C | 3h:57min | 6h:24min | +2h:27min |
| Profile | M | L | Medium families |
| Height | 1.245 mm | 1.715 mm | +470 mm |
| Weight | 59 kg | 73 kg | +14 kg |
| Ideal for | 2-3 persons | 3-4 persons | Medium families |
Why choose 160L model?
vs 100L
- ▷ 60% more capacity per minimum price increase
- ▷ Higher COP 3,40 vs 3.13 best efficiency
- ▷ Improved SCOP 3,30 vs 3.10 in real condition
- ▷ Profile L vs M specific for medium-sized families
- ▷ Same diameter Ø510 mm, only +470 mm height
vs Models 200L+
- ▷ Economic price vs. large capacity models
- ▷ Simple installation 73 kg vs 86+ kg
- ▷ Less losses lower surface vs large
- ▷ Capacity sufficient without paying unnecessary excess
- ▷ ROI optimized perfect balance price/capacity
Ideal applications Average capacity
👨👩👧
Median families
3-4 people with standard consumption
▪
Standard housing
Households, large apartments
💰
Smart Budget
Maximum price/capacity
🔄
Substitution
Replace thermos 120-180L
📈
Growth
Family increase
Technical information
Reference code: GIA-AT-V160MR290A - Vitrified steel - Profile L
Refrigerant Gas: R290 (0.15 kg) - GWP: 3 - CO2 eq: 0,00045T
Mandatory installation: Hydraulic security group 3/4" + siphon according to regulations
Connectivity: WiFi Δ Smart Grid Ready Δ Connection PV prepared
Perfect Media Capacity with Ecological Technology!
Giatsu GIA-AT-V160MR290A - 160L Equilibrium Ideal Δ COP 3,40 Δ R290 Economics
️ Perfect capacity
160L for families 3-4 persons
📈 Improved COP
3,40 vs 3.13 model 100L
🌿 R290 Ecological
GWP 3 price accessible
💰 ROI Exceptional
60% more capacity minimum price
Why choose the Giatsu GIA-AT-V160MR290A Vitrified?
▷ Perfect balance: 160L ideal medium-sized families
▷ Higher COP: 3.40 better than 100L model
▷ Maximum value: 60% more capacity incremental price
▷ Inverter technology: R290 + economic compressor
▷ Smart ready: WiFi + PV + Smart Grid
▷ Profile L: Specific families 3-4 persons
▪ The Perfect Balance: Capacity + Price + Sustainability!
Delivery at 24-48h 日本語 en Professional installation Ș gratuito Free technical advice
✓ Best value for money
✓ Certified installers
GIA-AT-V160MR290A
Data sheet
- Brand
- Giatsu
- Refrigerant Gas
- R290
- Consumption profile
- L
- Capacity (L)
- 160
- Type of installation
- Mural
- Type
- Compacta
- Anti-corrosion system
- Ánodo Magnesio
- Energy efficiency DHW
- A+
- SCOP
- 2,86
- COP (Tª Air 14ºC)
- 2,86
- Weather Heating Accumulator (Tª Air 7ºC)
- 7h:48min
- Power Electrical Resistance (W)
- 1.500
- Maximum production temperature DHW with heat pump
- 65
- Max. DHW with support electrical resistance
- 75
- Additional coil
- No
- Sound level DB
- 55
- High (mm)
- 1.810
- Width (mm)
- 570
- Background (mm)
- 570
- Weight (kg)
- 73
- WiFi
- Incluido
