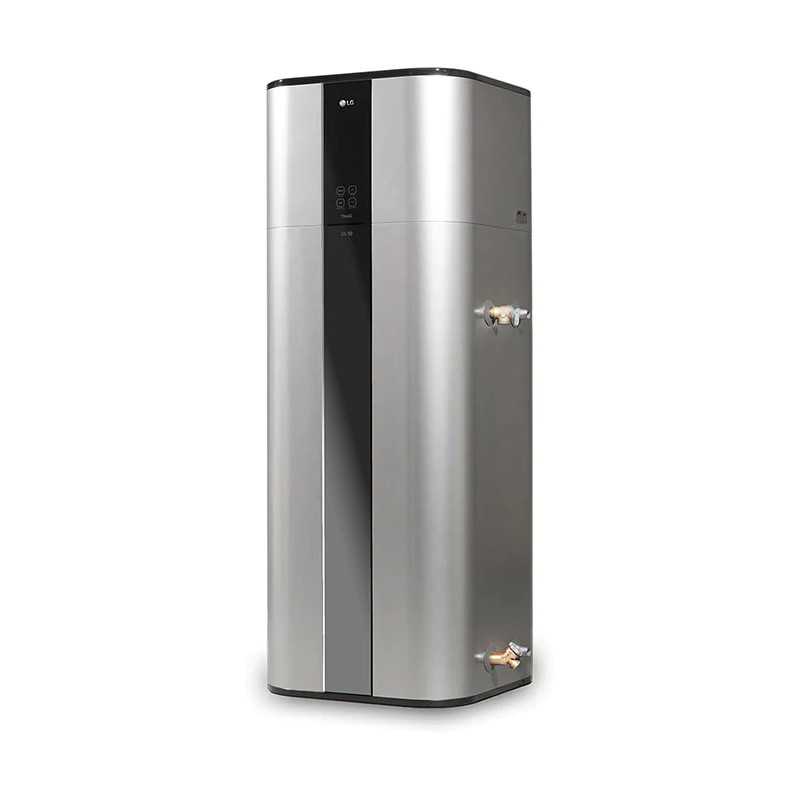

Heat Pump DHW LG WH20S.F5
Compact Vertical 200L Δ A+/A+ Δ Dual Inverter Δ ThinQ WiFi Δ 10 Years Warranty
La Heat Pump DHW LG WH20S.F5 combines Dual Inverter technology with 200 litre vertical storage for families of 3-4 people. With energy rating A+/A+ and COP up to 3,5, it offers up to 3,5 65% energy saving thanks to the 500W Twin Rotary compressor and smart modulation system. Its innovative ICCP anode enameled steel tank and ThinQ WiFi connectivity makes it the ideal solution for single-family homes that look for maximum efficiency, exceptional durability of 10 years warranty and advanced smart control.
Compacta 200L
580×1625×582 mm - 100 kg
▪ COP 3.5 A+
Dual Inverter 15°C
Twin Rotary
Compressor 500W
ThinQ WiFi
Smart control
Key Specifications
Capacity: 200 litres
Maximum COP: 3.5 (15°C)
SCOP: 3.96 (perfil L)
Annual summary: 709 kWh
Double resistance: 2×2000W
Sound level: 38 dB(A)
Guarantee: 10 years
Temperature range: -5°C to +48°C
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump LG WH20S F5
Referencia: WH20S F5
€1,721.93
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW LG WH20S.F5
Compact Vertical 200L Δ A+/A+ Δ Dual Inverter Δ ThinQ WiFi Δ 10 Years Warranty
La Heat Pump DHW LG WH20S.F5 combines Dual Inverter technology with 200 litre vertical storage for families of 3-4 people. With energy rating A+/A+ and COP up to 3,5, it offers up to 3,5 65% energy saving thanks to the 500W Twin Rotary compressor and smart modulation system. Its innovative ICCP anode enameled steel tank and ThinQ WiFi connectivity makes it the ideal solution for single-family homes that look for maximum efficiency, exceptional durability of 10 years warranty and advanced smart control.
Compacta 200L
580×1625×582 mm - 100 kg
▪ COP 3.5 A+
Dual Inverter 15°C
Twin Rotary
Compressor 500W
ThinQ WiFi
Smart control
Key Specifications
Capacity: 200 litres
Maximum COP: 3.5 (15°C)
SCOP: 3.96 (perfil L)
Annual summary: 709 kWh
Double resistance: 2×2000W
Sound level: 38 dB(A)
Guarantee: 10 years
Temperature range: -5°C to +48°C
Security policy
Delivery policy
Refund policy
Heat Pump DHW LG WH20S.F5
Compact Vertical 200L Δ Dual Inverter Δ A+/A+ Δ ThinQ WiFi Δ Warranty 10 years (*in compressor)
Dual Inverter Technology: Maximum Family Efficiency
The heat pump DHW LG WH20S.F5 represents the evolution of domestic hot water systems, combining a vertical stainless steel tank of 200 litres with the revolutionary Dual Inverter technology LG which allows continuous power modulation for maximum energy efficiency. With A+/A+ and POP rating of up to 3.5 in warm climate (15°C), this team offers up to 65% of energy savings using 500W Twin Rotary compressor with inverter control that automatically adapts consumption to the real needs of each moment, eliminating the traditional on/off cycles for smoother and more efficient operation.
Designed specifically for families of 3-4 people in single homes, the WH20S.F5 features intuitive digital display and ThinQ WiFi connectivity for smart remote control via smartphone. Its innovative dual-power heating system with 2×2000W electrical resistances ensures fast production of hot water even in extreme conditions, while the printed cathodic protection system (ICCP) instead of the traditional anode eliminates periodic maintenance and provides anti-reistance protection throughout the life of the equipment.
The compact dimensions of 580×1625×582 mm and the optimized weight of 100 kg facilitate the installation in standard technical spaces, while the sound level of only 38 dB in automatic mode guarantees silent operation for installation in any area of the house. With operating range from -5°C to 48°C, variable airflow of 4.4-6.7 m3/min and exceptional warranty of 10 years of the manufacturer, this model sets new standards for users seeking to combine maximum energy efficiency, cutting-edge technology and proven reliability LG Electronics on a state-of-the-art compact team.

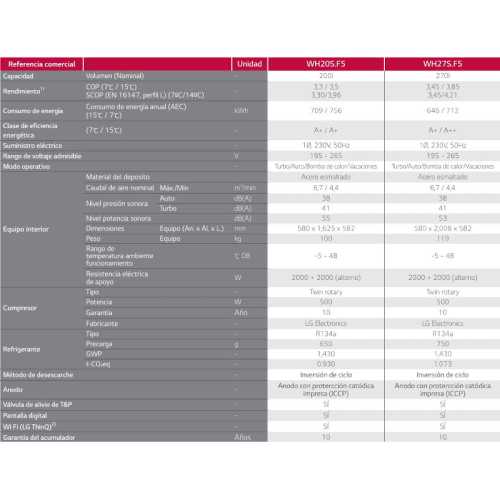

Technical Specifications Dual Inverter System
Capacity and Performance
- Deposit capacity: 200 litres
- COP 7°C: 3.3 (A+)
- COP 15°C: 3.5 (A+)
- SCOP EN 16147: 3,30/3,96
- Annual consumption (15°C): 709 kWh
- Annual consumption (7°C): 756 kWh
Dual Inverter Technology
- Compressor: Twin Rotary 500W
- Control: Dual Inverter
- Refrigerant Gas: R134a (650g)
- GWP: 1.430
- Variable air flow rate: 4.4-6.7 m3/min
- Filter: Laundry included
Operational characteristics
- Modes operation: Turbo/Auto/Bomba/Vacaciones
- Double resistance: 2×2000W (alternate)
- Electrical supply: 1Ø 230V 50Hz
- Voltage range: 195-265V
- Environment: -5°C to +48°C
- Digital screen: Yes + ThinQ WiFi
Construction and Protection
- Deposit: Enameled steel
- Protection: ICCP format printed
- Resisting: Ceramic
- Válvula T streetP: Included
- Drainage: Integrated
- Water guide: Stainless steel
Sound level
- Automatic mode: 38 dB(A)
- Turbo mode: 41 dB(A)
- Sound power: 55 dB(A)
- Operation: Ultra silent
- Installation: Any area
- Certification: Standards
Installation and Dimensions
- Dimensions: 580×1625×582 mm
- Net weight: 100 kg
- Installation: Vertical interior
- Air conduct: Optional
- Conduit accessory: PHDCLA0
- Guarantee: 10 years LG (in compressor)
Exclusive Advantages Technology LG Dual Inverter
Dual Inverter Unique
Continuous modulation without cycles on/off. Twin Rotary compressor with inverter control for maximum efficiency.
Zado️ Advanced ICCP anode
Printed cathodic protection without maintenance. Eliminates periodic replacement of the traditional anode.
Doble Double Resistance
2×2000W alternate operation for fast heating in extreme conditions.
ThinQ WiFi Smart
Smart remote control + temperature monitoring + maintenance warnings.
Technology LG: Innovation Brand variance
🔄
Dual Inverter Revolution
Twin Rotary compressor with inverter control removes abrupt boots. Continuous modification 0-100% according to real demand.
️
ICCP protection
Anode with printed cathodic protection eliminates maintenance. Permanent anti-red protection without spare parts.
📱
Smart ThinQ
Smart remote control, real-time monitoring and predictive diagnosis using WiFi.
Comparative WH Series LG: Choose your Capacity
| Model | Capacity | COP 15°C | SCOP | Target |
|---|---|---|---|---|
| WH20S.F5 | 200L | 3,5 | 3,96 | 3-4 persons |
| WH27S.F5 | 270L | 3,85 | 4,21 | 4-5 persons |
Ideal applications System LG WH20S.F5
👨👩👧👦
Families 3-4 Persons
Single-family housing
▪
New housing
Efficient construction
🔄
Substitution
Replacement gas boilers
▼
Smart Homes
Domotic integration
️
Extreme Climates
-5°C to +48°C
Technical information
Reference code: WH20S.F5 - Heat Pump DHW Vertical 200L Dual Inverter
Refrigerant Gas: R134a (650g) - GWP: 1.430 - CO2 eq: 0.930T
Mandatory installation: Vertical interior + standard hydraulic connections
Certifications: A+/A+ ErP Δ ThinQ WiFi Δ Warranty 10 years LG Electronics
▪ BOMBA CALOR DHW 200L DUAL INVERTER ⋅
Technology LG + ThinQ WiFi + Warranty 10 Years*
Dual Inverter LG
200L Twin Rotary continuous modulation
COP 3.5 + SCOP 3.96 for maximum efficiency
▪ A+/A+ Compact
65% guaranteed energy saving
580×1625×582mm - Only 38 silent dB
Á️ ICCP anode
No traditional maintenance
Permanent anti-red protection
ThinQ WiFi
Smart remote control
Monitoring + predictive diagnosis
👨👩👧👦 200L for families 3-4 persons
▪ Vertical compact without ducts
▪ 65% energy saving A+/A+
🔇 Only 38 dB ultra silent
🔥 Double resistance 2×2000W
️ Warranty 10 years LG Electronics (in compressor)
DUAL INVERTER TECHNOLOGY
Single with compressor Twin Rotary + anode ICCP + ThinQ WiFi
Ideal families, single homes and efficient substitutions
▷ INCLUDED PROFESSIONAL INSTALMENT
️ Warranty 10 years LG
🔧 National Technical Service
📋 Certification A+/A+ ErP
📱 ThinQ WiFi Smart
WH20S F5
Data sheet
- Brand
- LG
- Refrigerant Gas
- R134a
- Consumption profile
- L
- Capacity (L)
- 200
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo con Protección Catódica Impresa (ICCP)
- Power consumed Nominal (W)
- 500
- Energy efficiency DHW
- A+
- SCOP
- 3,30
- COP (Tª Air 14ºC)
- 3,37
- Power Electrical Resistance (W)
- 2.000
- Maximum production temperature DHW with heat pump
- 50
- Max. DHW with support electrical resistance
- 60
- Additional coil
- No
- Sound level DB
- 38
- High (mm)
- 1.625
- Width (mm)
- 580
- Background (mm)
- 582
- Weight (kg)
- 100
- WiFi
- Incluido
