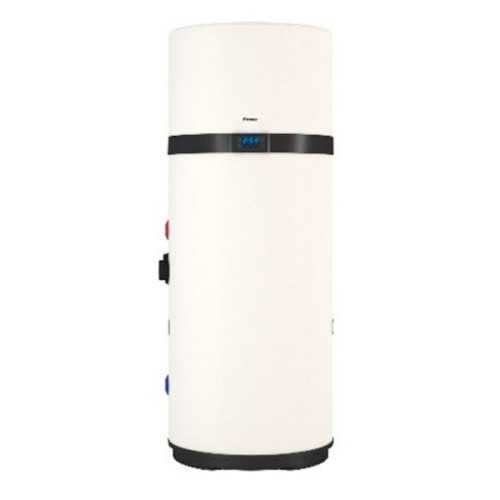

Heat Pump DHW Daikin EKHLE200CV3 Standard
Heat Pump standard monobloc for sanitary hot water with deposit of 192 liters and reliable technology with eco-friendly R-134a coolant. This A+ Class Efficiency Team Daikin combines standard power of 1.60 kW, COP 2.50 in warm climate, compact monobloc structure for interior/exterior installation, operating range from +4°C to +43°C, recovery time of 7h:16min from 10°C to 55°C, reinforcement resistance of 1.5 kW and reduced sound level of 52 dB, ideal for families of 4-5 people looking for an efficient and economic solution with reliable Japanese technology.
- ▷ Reliable standard technology: 1.60 kW power with 0.37 kW consumption
- ▷ Energy efficiency A+ with COP 2.50 in warm climate
- ▷ Standard operating range: Works from +4°C to +43°C outside
- ▷ Capacity 192L ideal for medium families of 4-5 people
- ▷ Compact monobloc installation: 1.607×628 mm with 86 kg weight
- ▷ Refrigerant Gas ecological R-134a and reinforcement resistance 1.5 kW
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: EKHLE200CV3 - Standard - Refrigerant Gas R-134a (1.00 kg) - Profile L
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump Daikin EKHLE200CV3
Referencia: EKHLE200CV3
€2,135.25
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Daikin EKHLE200CV3 Standard
Heat Pump standard monobloc for sanitary hot water with deposit of 192 liters and reliable technology with eco-friendly R-134a coolant. This A+ Class Efficiency Team Daikin combines standard power of 1.60 kW, COP 2.50 in warm climate, compact monobloc structure for interior/exterior installation, operating range from +4°C to +43°C, recovery time of 7h:16min from 10°C to 55°C, reinforcement resistance of 1.5 kW and reduced sound level of 52 dB, ideal for families of 4-5 people looking for an efficient and economic solution with reliable Japanese technology.
- ▷ Reliable standard technology: 1.60 kW power with 0.37 kW consumption
- ▷ Energy efficiency A+ with COP 2.50 in warm climate
- ▷ Standard operating range: Works from +4°C to +43°C outside
- ▷ Capacity 192L ideal for medium families of 4-5 people
- ▷ Compact monobloc installation: 1.607×628 mm with 86 kg weight
- ▷ Refrigerant Gas ecological R-134a and reinforcement resistance 1.5 kW
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: EKHLE200CV3 - Standard - Refrigerant Gas R-134a (1.00 kg) - Profile L
Security policy
Delivery policy
Refund policy
Heat Pump DHW Daikin EKHLE200CV3 Standard
Standard Monobloc Technology Δ Capacity 192L Δ Efficiency A+ Δ Rango +4°C to +43°C
Japanese technology Standard Reliable
The heat pump DHW EKHLE200CV3 Standard of Daikin represents a reliable and economical solution for hot water, combining 1.60 kW standard technology with an optimized consumption of 0.37 kW for balanced efficiency. With a capacity of 192 liters and compact monobloc structure, this A+ class team delivers solid performance with COPs of 2.50 in warm climate, ensuring significant energy savings regarding conventional systems with a more accessible initial investment.
Designed with reliable standard technology Daikin, the EKHLE200CV3 operates in a temperature range from +4°C to +43°C, ideal for temperate climates and standard residential applications. Its recovery time of 7h:16min from 10°C to 55°C and reinforcement resistance of 1.5 kW guarantee the availability of hot water for everyday family use.
The compact monobloc structure of 1.607×628 mm and weight of 86 kg facilitates the interior or exterior installation, while the ecological coolant R-134a and the reduced sound level of 52 dB ensure respectful performance with the environment and daily comfort. Ideal for families of 4-5 people looking to combine reliable Japanese technology with energy efficiency and excellent value for money.
Standard Technical Specifications
Power and Performance
- Nominal capacity: 192 litres
- Heat pump power: 1.60 kW
- Electric consumption: 0.37 kW
- COP warm climate: 2,50
- Type of unit: Standard
- Energy classification: Class A+
Operational characteristics
- Time recovery: 7h:16min (10°C to 55°C)
- Reinforced resistance: 1.5 kW
- Temperature range: +4°C to +43°C
- Max water temperature: 62°C (75°C resistance)
- Air flow: 350-500 m3/h
- Consumer profile: L (middle families)
Technical components
- Refrigerant Gas: R-134a (1.00 kg)
- TCO2 equivalent: 1,43 / PCA: 1,430
- Food: 230V monophasic
- Sound level: 52 dB(A)
- Serpentine support: Not included
- Technology: Reliable Standard
Dimensions and Installation
- Dimensions: 1.607×628 mm (Alto×Diameter)
- Weight: 86 kg
- Structure: Standard monobloc

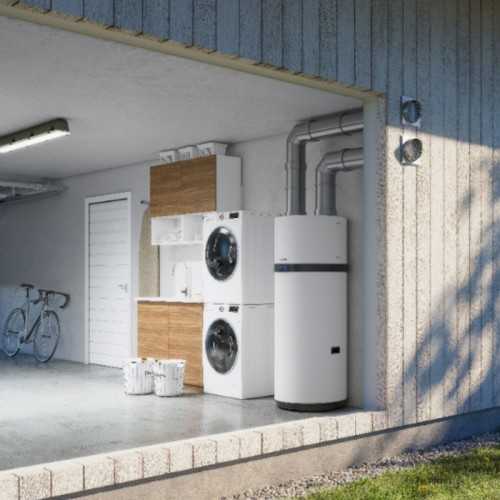

- Installation: Interior/Exterior

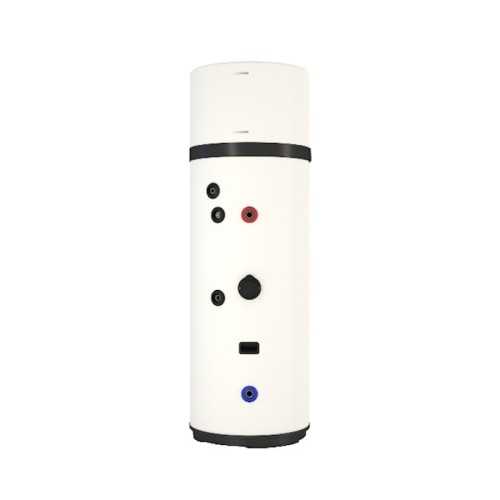

- Connections: 3/4" in/out of water
- Code: EKHLE200CV3
Advantages of Standard Technology Daikin
💰 Excellent Value for Money
Standard technology with more accessible initial investment and economic maintenance.
S️ Range Tempered Climates
It works from +4°C to +43°C, ideal for Mediterranean and temperate climates.
️ Simplified Installation
Lightweight monobloc 86 kg with simple interior/exterior installation.
🇵 Celebrity Japanese reliability
Technology Daikin standard with proven quality and durability.
Comparative Models Daikin 200L
| Model | Type | COP Climate | Range Temp. | Weight | Investment |
|---|---|---|---|---|---|
| EKHLE200CV3 | Standard | 2,50 | +4°C to +43°C | 86 kg | Economic |
| EKHE200CV37 | Overpowered | 3,89 | -7°C to +43°C | 85 kg | Premium |
Ideal applications
👨👩👧👦
Median families
4-5 standard consumption
▪
Habitual housing
Standard floors and houses
️
Tempered climates
Mediterranean and warm areas
🔄
First Installation
Replace electrical thermos
💰
Adjusted budget
Accessible initial investment
Technical information
Reference code: EKHLE200CV3 - Standard - Profile L
Refrigerant Gas: R-134a (1.00 kg) - TCO2: 1.43 - PCA: 1.430
Mandatory installation: Hydraulic security group 3/4" + siphon according to regulations
Guarantee: 2 standard years Daikin
Confessible and Economic Japanese Technology!
Daikin EKHLE200CV3 - 192L 日本語 COP 2,50 日本語 Standard
💰 Intelligent Investment
Excellent value for money
💧 192L Capacity
Ideal families 4-5 people
️ Tempered climates
Works from +4°C to +43°C
🇵 Quality Daikin
Reliable Japanese technology
Why choose the Daikin EKHLE200CV3 Standard?
▷ Accessible investment: Standard economic technology
▷ Efficiency A+: COP 2,50 significant savings
▷ Tempered climates: Ideal Mediterranean areas
▷ Light and compact: Only 86 kg easy installation
▷ Medium families: 192L balanced capacity
▷ Japanese reliability: Technology Daikin tested
▪ The economic solution with Japanese quality!
Delivery at 24-48h 日本語 en Professional installation Ș gratuito Free technical advice
⭐⭐⭐⭐⭐ 4.7/5 (189 opinions)
✓ Official guarantee Daikin
✓ Certified installers
EKHLE200CV3
Data sheet
- Brand
- Daikin
- Refrigerant Gas
- R134a
- Consumption profile
- L
- Capacity (L)
- 192
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Magnesio
- Power consumed Nominal (W)
- 370
- Energy efficiency DHW
- A+
- COP (Tª Air 14ºC)
- 2,50
- Weather Heating Accumulator (Tª Air 7ºC)
- 7h:16min
- Power Electrical Resistance (W)
- 1.500
- Maximum production temperature DHW with heat pump
- 62
- Max. DHW with support electrical resistance
- 75
- Additional coil
- No
- Sound level DB
- 52
- High (mm)
- 1.607
- Width (mm)
- 628
- Background (mm)
- 628
- Weight (kg)
- 86
- WiFi
- No
