Heat Pump DHW Giatsu GIA-ATS-200SR290A Inox
Heat Pump premium aerothermal with integrated solar winder for sanitary hot water with stainless steel AISI 304 of 200 liters and advanced hybrid technology with natural R290 coolant. This maximum efficiency equipment Giatsu combines A+ classification in medium climate and A++ in warm climate, low maintenance electronic anode, anti-legionela protection up to 70°C, exceptional COP of 3.61, optimized recovery time of 5h:10min in warm climate, integrated solar winder of 10 meters with 1m2 exchange, Smart Grid Ready, reinforcement resistance of 1.55 kW+ and ultra silent sound level of only 40 dB, ideal for families of 4-5.
- ▷ Hybrid System: Aerotermia A++ + integrated solar winder 10m
- ▷ Premium deposit: AISI 304 stainless steel with electronic anode
- ▷ Maximum efficiency: COP 3,61 with SCOP 3,36 A++ warm
- ▷ Ecological R290: GWP 3 vs 1.430 traditional synthetic gases
- ▷ Ultra silent: Only 40 dB with Smart Grid Ready integrated
- ▷ No maintenance: Electronic annode + antilegionela 70°C
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-ATS-200SR290A - AISI 304 Inox + Solar Serpentine - R290 (0.15 kg) - Smart Grid
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

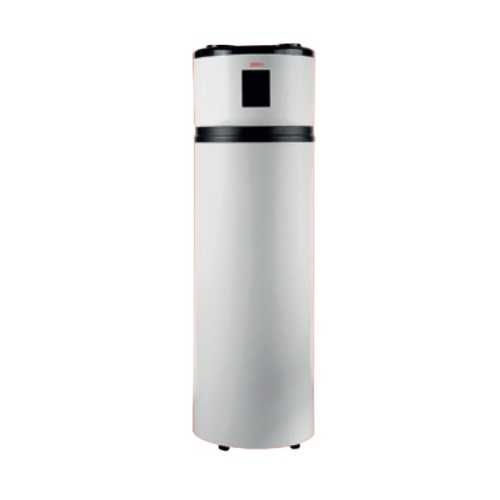

Calor Acs Pump Giatsu GIA-ATS-200SR290A Inox
Referencia: GIA-ATS-200SR290A
€1,653.49
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Giatsu GIA-ATS-200SR290A Inox
Heat Pump premium aerothermal with integrated solar winder for sanitary hot water with stainless steel AISI 304 of 200 liters and advanced hybrid technology with natural R290 coolant. This maximum efficiency equipment Giatsu combines A+ classification in medium climate and A++ in warm climate, low maintenance electronic anode, anti-legionela protection up to 70°C, exceptional COP of 3.61, optimized recovery time of 5h:10min in warm climate, integrated solar winder of 10 meters with 1m2 exchange, Smart Grid Ready, reinforcement resistance of 1.55 kW+ and ultra silent sound level of only 40 dB, ideal for families of 4-5.
- ▷ Hybrid System: Aerotermia A++ + integrated solar winder 10m
- ▷ Premium deposit: AISI 304 stainless steel with electronic anode
- ▷ Maximum efficiency: COP 3,61 with SCOP 3,36 A++ warm
- ▷ Ecological R290: GWP 3 vs 1.430 traditional synthetic gases
- ▷ Ultra silent: Only 40 dB with Smart Grid Ready integrated
- ▷ No maintenance: Electronic annode + antilegionela 70°C
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-ATS-200SR290A - AISI 304 Inox + Solar Serpentine - R290 (0.15 kg) - Smart Grid
Security policy
Delivery policy
Refund policy
Heat Pump DHW Giatsu GIA-ATS-200SR290A Inox
Premium Hybrid System 日本語 AISI 304 + Solar Serpentine ♥ A++ Climate
Premium Hybrid System: Aerotermia + Solar + Inoxidable
The heat pump DHW GIA-ATS-200SR290A of Giatsu represents the most advanced solution in hybrid systems for sanitary hot water, combining a 200-liter AISI 304 stainless steel tank with integrated solar winder and natural R290 refrigerant revolutionary. With A+ energy rating in medium climate and A++ in warm climate, this premium team offers an exceptional COP of 3.61 and up to 80% energy savings by combining maximum efficiency aerothermics with free thermal energy, virtually eliminating maintenance thanks to electronic anode.
Designed for demanding families of 4-5 people looking for maximum energy efficiency and sustainability without compromising performance, the GIA-ATS-200SR290A incorporates integrated solar winder of 10 meters with 1m2 of exchange surface and G 3/4" connections ready to connect thermal solar panels. Its stainless steel tank AISI 304 with a thickness of 1.5 mm and electronic anode ensures maximum durability without maintenance, while the R290 coolant with GWP of only 3 sets new sustainability standards in premium hybrid systems.
Optimized dimensions of Ø560×1750 mm and weight of 77 kg facilitate professional installation, while the ultra silent sound level of 40 dB and the Smart Grid Ready function allow perfect integration into modern homes and smart networks. With 5h:10min recovery time in warm climate, 1.55 kW reinforcement and automatic anti-legionela protection up to 70°C, this model represents the technological culmination for users seeking to combine maximum capacity, superior energy efficiency, absolute sustainability and maintenance-free durability in a state-of-the-art hybrid system.
Technical Specifications Premium Hybrid System
Capacity and Performance
- Capacity: 200 litres
- Total power: 1.60 kW
- Nominal power: 432W
- COP: 3,61
- SCOP medium climate: 2.92 (A+)
- SCOP warm climate: 3,36 (A++)
Solar Hybrid System
- Solar serpentin: Factory integrated
- Coil length: 10 meters
- Coil diameter: 22 mm
- Exchange area: 1 m2
- Coil material: AISI 304
- Solar connection: G 3/4"
Operational characteristics
- Time recovery: 6h:24min (average) / 5h:10min (heated)
- Resistance: 1.55 kW
- Temp. anti-legionela: 70°C
- Maximum DHW: 75°C
- Maximum pressure: 10 bar
- Certification: Keymark
Premium technology
- Deposit: AISI 304 stainless steel (1.5 mm)
- Protection: Electronic record
- Refrigerant Gas: R290 (0.15 kg)
- GWP: 3 (ecological)
- Sound level: 40 dB(A)
- Smart Grid: Ready
Connectivity and Installation
- Dimensions: Ø560×1750 mm
- Net weight: 77 kg
- WiFi: Integrated
- Air flow: 350 m3/h
- Ventilator: 60W/1130 rpm
- Code: GIA-ATS-200SR290A
Exclusive Advantages Premium Hybrid System
Integrated Solar Hybrid
Solar serpentin 10m + 1m2 integrated factory exchange. Aerotermia A+++ + free solar energy.
AISI 304 Premium
Stainless steel 1.5 mm + electronic anode. No corrosion, no maintenance, pure water always.
▪ COP 3.61 Exceptional
Maximum air efficiency + A+++ warm weather. Higher performance even without solar.
Ultra Quiet
Just 40 dB + Smart Grid Ready. Perfect integration of modern homes and smart networks.
How does the Hybrid System work?
Русский
Priority Solar Mode
When there is sun, the integrated solar winder heats the water directly with free energy. Maximum energy savings.
▪
Aerotermia A++ mode
Without sun or high demand, the A++ aerotermia automatically enters. COP 3.61 maximum efficiency.
🔥
Combined Hybrid Mode
Solar + simultaneous aerotermia for maximum production. Ideal demand peaks or large families.
Hybrid System vs Basic Aerotermia
| Feature | GIA-ATS-200SR290A (hybrid) | GIA-AT-200SR290A (Only Aerotermia) |
|---|---|---|
| Solar serpent | ▷ Integrated 10m | ❌ Not included |
| Maximum energy saving | Up to 80% | Up to 72% |
| Energy sources | Solar + Aerotermia + Electrical | Aerotermia + Electrical |
| Connecting solar panels | ▷ Ready to connect | ❌ Requires modification |
| Summer operation | Mainly free solar | Just aerotermia |
| ROI long term | Senior | Standard |
Ideal applications Hybrid system
Русский
Solar installations
With thermal solar panels
👨👩👧👦
Big Families
4-5 high consumption
▪
Premium housing
Maximum sustainable efficiency
🌟
Certifications
Buildings A+, BREEAM, LEED
💎
Without maintenance
Users who value durability
Technical information
Reference code: GIA-ATS-200SR290A - AISI 304 Inox + Integrated Solar Serpentine
Refrigerant Gas: R290 (0.15 kg) - GWP: 3 - CO2 eq: 0,00045T
Mandatory installation: Hydraulic security group 3/4" + siphon according to regulations
Certifications: Keymark European Δ Smart Grid Ready ♥ Integrated WiFi
Premium Hybrid System: Solar + Aerotermia + Stainless Steel!
Giatsu GIA-ATS-200SR290A - Integrated Solar Serpentine Δ AISI 304
Русский Solar serpent
10m integrated + 1m2 exchange
🏆 AISI 304 stainless steel
No corrosion + electronic anode
▪ COP 3.61 A++
Maximum aerothermal efficiency
🔇 40 dB Smart
Ultra silent + Smart Grid
Why choose the Giatsu GIA-ATS-200SR290A Hybrid?
▷ Maximum savings: Up to 80% solar + aerotermia A++
▷ No maintenance: AISI 304 + electronic anode
▷ Solar ready: Sepentin 10m integrated factory
▷ Premium technology: R290 + Smart Grid Ready
▷ Triple fountain: Solar + aerotermia + electric
▷ Future-prepared: Connect solar panels directly
▪ The Most Advanced Solution: Hybrid + Inoxidable + Integrated Solar!
Delivery at 24-48h Ș en Specialised installation gratuito Free technical advice
⭐⭐⭐⭐⭐ 4.9/5 (89 opinions)
✓ More advanced system
✓ Specialized installation
GIA-ATS-200SR290A
Data sheet
- Brand
- Giatsu
- Refrigerant Gas
- R290
- Consumption profile
- L
- Capacity (L)
- 200
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Electrónico
- Energy efficiency DHW
- A+
- SCOP
- 2,92
- COP (Tª Air 14ºC)
- 2,92
- Weather Heating Accumulator (Tª Air 7ºC)
- 6h:20min
- Power Electrical Resistance (W)
- 1.550
- Maximum production temperature DHW with heat pump
- 65
- Max. DHW with support electrical resistance
- 75
- Additional coil
- Sí
- Additional coil surface (m2)
- 1,00
- Sound level DB
- 55
- High (mm)
- 1.750
- Width (mm)
- 560
- Background (mm)
- 560
- Weight (kg)
- 77
- WiFi
- Incluido
