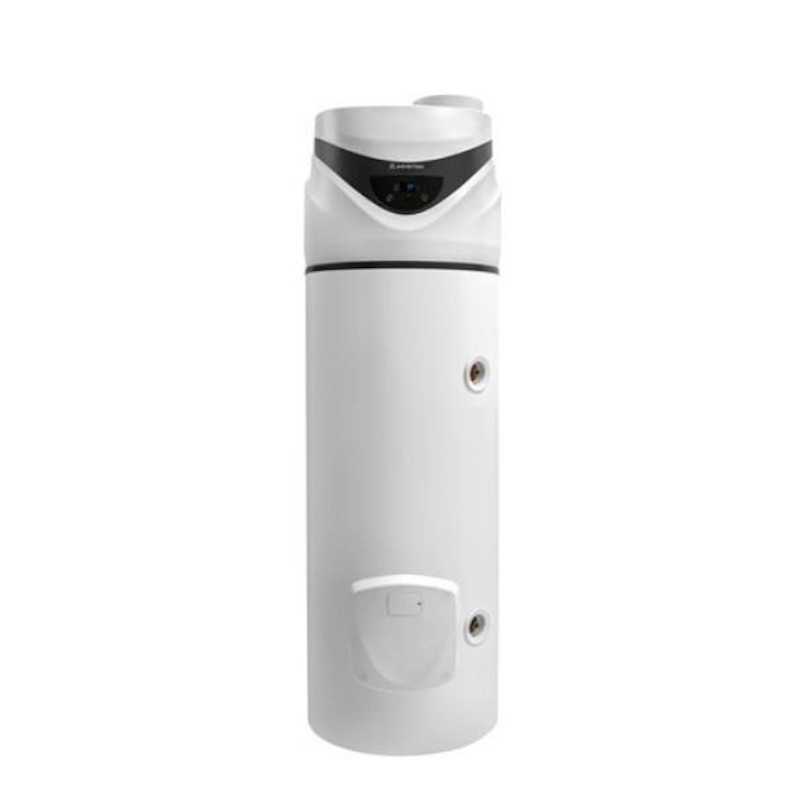

Heat Pump DHW OUR PRIMOT 240 SYS HC A+ Ariston
Heat Pump premium monobloc for exterior with deposit of 242 liters, integrated solar winder and aerothermal hybrid technology + thermal solar with ecological R134a coolant. This High Efficiency Team Class A Ariston combines SCOP up to 3.35, titanium-vitrified steel heater with double anode ProTech, rechargeable battery for night rate, integrated photovoltaic function, solar winder with B-C-D-E-F list connections, ideal monobloc structure for exterior and heating capacity up to 55°C with heat pump, ideal for large families looking for maximum energy savings combining monocle and solar thermal installation.
- ▷ Hybrid Technology: Aerotermia class A + integrated solar winder
- ▷ Maximum efficiency: SCOP 2,97 (7°C) and SCOP 3,35 (14°C) - Class A
- ▷ Large capacity: 242L with 313L water at 40°C - Profile XL large families
- ▷ Rechargeable battery + photovoltaic function for maximum energy saving
- ▷ Simplified exterior installation: Monobloc structure with ready solar winding
- ▷ Double anode ProTech + magnesium without maintenance - 53 dB sound level
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group (Code 877085) and a siphon (Code 877086) for each unit.
Reference: 3069798 - OUR PRIMO 240 SYS HC A+ - Refrigerant Gas R134a (900g) - Integrated solar serpentin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Heat Pump Acs OUR PRIMO 240 SYS HC A+ Ariston
Referencia: 3069798
€1,729.95
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW OUR PRIMOT 240 SYS HC A+ Ariston
Heat Pump premium monobloc for exterior with deposit of 242 liters, integrated solar winder and aerothermal hybrid technology + thermal solar with ecological R134a coolant. This High Efficiency Team Class A Ariston combines SCOP up to 3.35, titanium-vitrified steel heater with double anode ProTech, rechargeable battery for night rate, integrated photovoltaic function, solar winder with B-C-D-E-F list connections, ideal monobloc structure for exterior and heating capacity up to 55°C with heat pump, ideal for large families looking for maximum energy savings combining monocle and solar thermal installation.
- ▷ Hybrid Technology: Aerotermia class A + integrated solar winder
- ▷ Maximum efficiency: SCOP 2,97 (7°C) and SCOP 3,35 (14°C) - Class A
- ▷ Large capacity: 242L with 313L water at 40°C - Profile XL large families
- ▷ Rechargeable battery + photovoltaic function for maximum energy saving
- ▷ Simplified exterior installation: Monobloc structure with ready solar winding
- ▷ Double anode ProTech + magnesium without maintenance - 53 dB sound level
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group (Code 877085) and a siphon (Code 877086) for each unit.
Reference: 3069798 - OUR PRIMO 240 SYS HC A+ - Refrigerant Gas R134a (900g) - Integrated solar serpentin
Security policy
Delivery policy
Refund policy
Heat Pump DHW OUR PRIMOT 240 SYS HC A+ Ariston
Aerothermal Hybrid Technology + Solar Thermal Δ Maximum Energy Saving
Premium Hybrid Technology for Maximum Saving
The heat pump DHW OUR PRIMOT 240 SYS HC A+ of Ariston represents the maximum evolution in hybrid systems of sanitary hot water, combining the efficiency of class A aerotermia with the free energy of the sun by means of an integrated solar mill. With a capacity of 242 litres and monobloc technology specially designed for outdoor installation, this premium equipment offers up to 90% energy savings by combining aerotermia A+ with thermal solar energy.
Equipped with rechargeable battery for night and night fare integrated photovoltaic function, NUOS PRIMO 240 SYS incorporates a solar winder ready to connect with identified B-C-D-E-F connections, eliminating the need for subsequent modifications. Its stainless steel heated titanium with double anode ProTech guarantees maximum durability without maintenance.
The optimized monobloc structure facilitates outdoor installation, while the R134a eco-friendly coolant and the 500W optimized power ensure maximum efficiency in temperature range -5°C to 42°C. Ideal for large families of 5-6 people looking to combine premium Italian technology with maximum energy savings through double renewable source.
Advanced Technical Specifications
Capacity and Performance
- Nominal capacity: 242 litres
- Water at 40°C available: 313 litres
- SCOP: 2.97 (7°C) and 3.35 (14°C)
- Energy classification: Class A
- Consumer profile: XL (big families)
- Warming time: 7h:59min (7°C) /25070/ 7h:03min (14°C)
Solar Hybrid System
- Solar serpentin: Factory integrated
- Solar connections: B-C-D-E-F identified
- Maximum savings: Up to 90% combined
- Rechargeable battery: For night fare
- Photovoltaic function: Integrated
- Installation: Simplified outdoor monobloc
Technical components
- Heat pump power: 500W optimized
- Electrical resistance: 2,000W
- Refrigerant Gas: Organic R134a (900g)
- Max BC temperature: 55°C
- Temperature range: -5°C to 42°C
- Sound level: 53 dB(A)

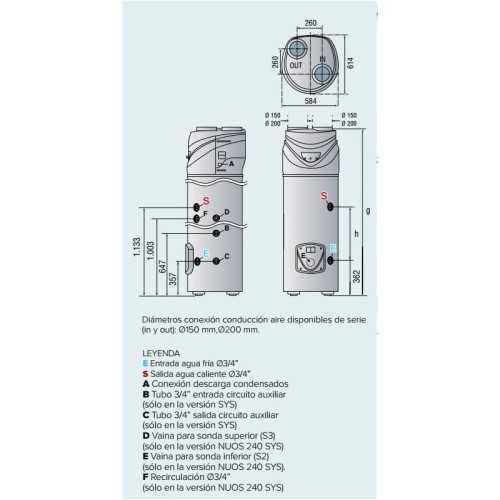

Dimensions and Installation
- Dimensions: 771×1.926 mm
- Total weight: 107 kg (with serpentine)
- Calderín: Stainless steel
- Anode: Double ProTech + magnesium
- Connections: 3/4" in/out of water
- Code: 3069798
Exclusive Advantages of Hybrid System
A Maximum Energy Saving
Up to 90% savings by combining class A aerotermia + free solar energy with integrated winding ready to connect.
Advanced technology
Exclusive rechargeable battery + integrated photovoltaic function for night and solar rates.
️ Simplified Installation
Monobloc structure for exterior with integrated solar winder and B-C-D-E-F connections identified.
️ Premium Durability
Double anode ProTech + magnesium without maintenance, calderín vitrified to titanium, enlarged warranty 5 years.
Ideal applications
👨👩👧👦👶
Big Families
5-6 people with high consumption DHW
Русский
Solar Energy
Facilities with solar thermal panels
▪
Eco Housing
Energy certifications A+ and higher
🔄
Substitution
Replace 200-300L systems
💰
Save Maximum
Night rates + solar energy
Technical information
Reference code: 3069798 - OUR PRIMO 240 SYS HC A+
Refrigerant Gas: R134a (900g) - Ecological and efficient
Mandatory installation: Hydraulic security group 3/4" (Code 877085) + siphon (Code 877086)
Guarantee: 2 standard years, expandable up to 5 total years
Transform your Home with Premium Hybrid Technology!
NUOS PRIMO 240 SYS - Aerothermal + Solar Thermal = Up to 90% Energy Saving
🌞 Solar Hybrid
Integrated serpentin + aerotermia
💧 313L Water 40°C
242L capacity for large families
🔋 Rechargeable battery
Night rate + photovoltaic
️ Monobloc Exterior
Simplified installation
Special Offer Full Installation
NUOS PRIMO 240 SYS + Professional Installation + Security Group + Siphon
4.200€ 3,890€ -310€ AHORRO
*VAT included. Financing available from 89€/month
Why choose the OUR PRIMO 240 SYS?
▷ Maximum savings: Up to 90% less electricity bill
▷ Exclusive technology: Battery + integrated photovoltaic
▷ Easy installation: Monobloc + winding ready
▷ No maintenance: Double anode ProTech
▷ Premium warranty: Up to 5 years total
▷ Italian quality: Technology Ariston premium
3069798
Data sheet
- Brand
- Ariston
- Refrigerant Gas
- R134a
- Consumption profile
- L
- Capacity (L)
- 240
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Activo PROTECH
- Power consumed Nominal (W)
- 500
- Energy efficiency DHW
- A
- SCOP
- 3,35
- COP (Tª Air 14ºC)
- 2,77
- Weather Heating Accumulator (Tª Air 7ºC)
- 7h:59min
- Power Electrical Resistance (W)
- 2.000
- Maximum production temperature DHW with heat pump
- 55
- Max. DHW with support electrical resistance
- 75
- Additional coil
- Sí
- Additional coil surface (m2)
- 0,65
- Sound level DB
- 55
- High (mm)
- 1.926
- Width (mm)
- 771
- Background (mm)
- 771
- Weight (kg)
- 107
- WiFi
- No
