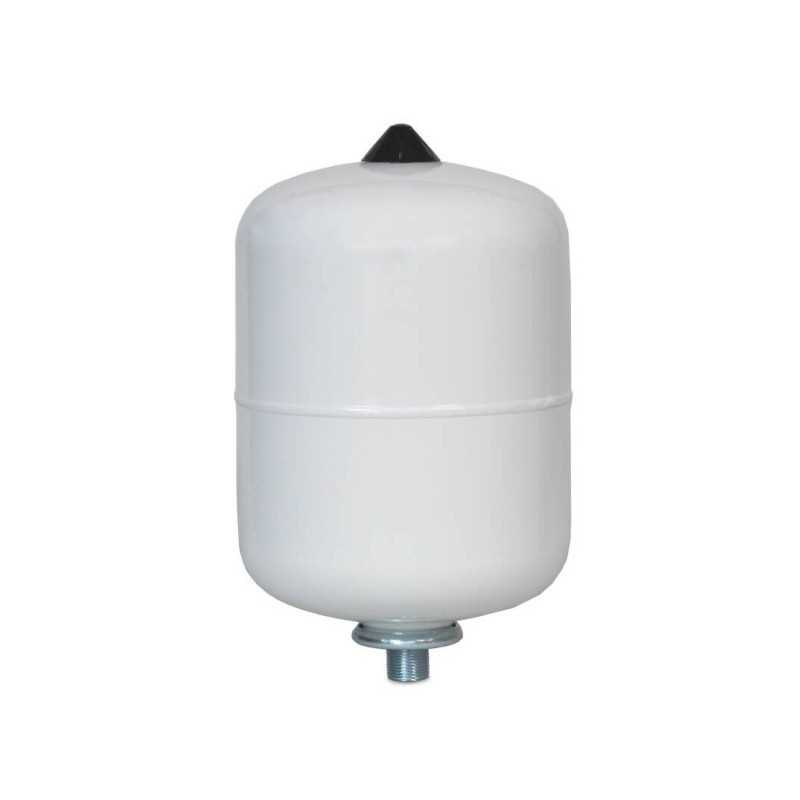

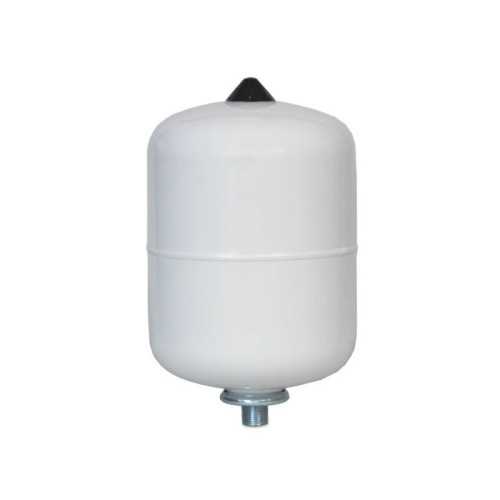

24 CMR DHW expansion vessel Ibaiondo

The Expansion Vessel Ibaiondo CMR 24 plays a crucial role in health hot water systems (DHW), especially in those with open circuits. Its main function is to absorb the volume and pressure changes that occur as the water heats and expands within the system.

This CMR 24 model has a capacity of 24 liters, making it an ideal solution for larger installations such as residential buildings, hotels, hospitals or small industrial applications. Its robust steel construction and fixed, non-replaceable, expansion membrane make it suitable for use with drinking water.

Some of the most relevant technical features of the Expansion Vase Ibaiondo CMR 24 are:

• Volume: 24 litres
• Maximum service pressure: 8 bar
• Test pressure: 12-15 bar
• Preload factory: 3 bar
• Temperature range: -10°C to 100°C
• Water connection: 3/4" male thread"
• Exterior finish: White paint

Unlike the traditional expansion vessels with a changeable diaphragm, the CMR 24 model Ibaiondo it has a fixed membrane that does not require periodic maintenance. This greatly simplifies service tasks and ensures trouble-free operation throughout the team's lifetime.

Thanks to its compact and simple installation design, the CMR 24 is easily integrated into all types of sanitary hot water systems, whether residential, commercial or industrial. Its robust construction and technical features make it a reliable and safe solution to maintain the integrity of the system, avoiding problems such as leaks or overprints.

Whether you are looking to replace an old expansion vessel or integrate a new one into your DHW system, the Expansion Vase Ibaiondo CMR 24 is an excellent choice that will provide years of reliable and smooth running.
