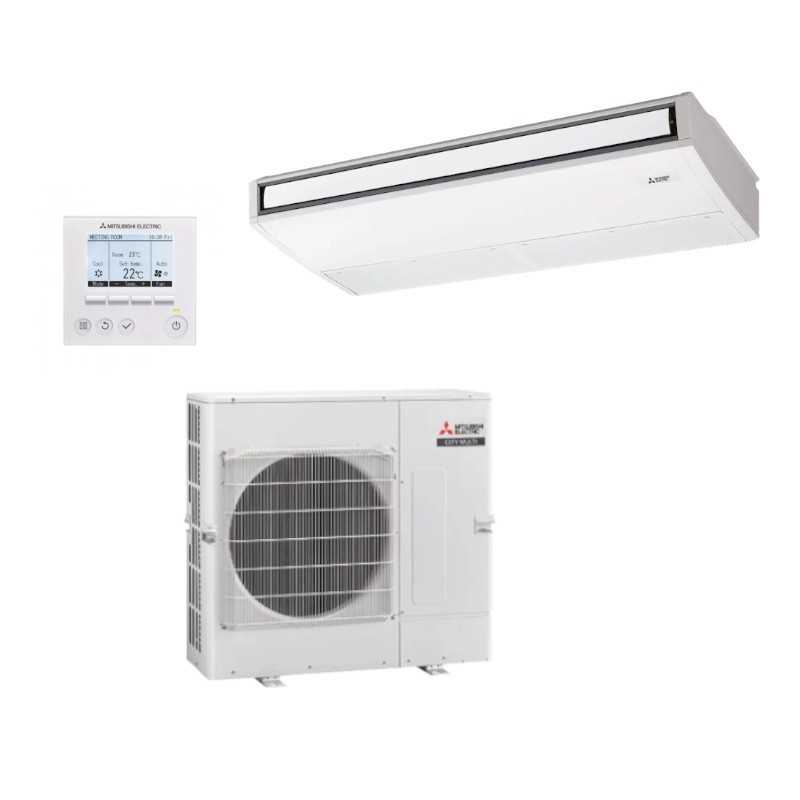

Techo Mitsubishi Electric MSPCZ-100VKA2
Solución comercial monofásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales comerciales de gran volumen y oficinas diáfanas. Este robusto sistema de 9,5 kW opera con refrigerante ecológico R-32 y destaca por su excelente caudal de ventilación. Cuenta con clasificación estacional A+ en frío, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 9,50 kW
• Alimentación: Monofásica (230V)
• Unidad Interior: PCA-M100KA2

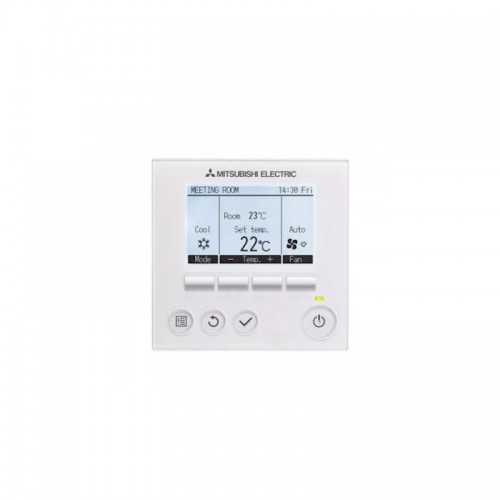

• Control Incluido: PAR-41MAA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning MSPCZ-100VKA Monof. Mitsubishi Electric Standard Inverter
Referencia: MSPCZ-100VKA
€3,279.96
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Techo Mitsubishi Electric MSPCZ-100VKA2
Solución comercial monofásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales comerciales de gran volumen y oficinas diáfanas. Este robusto sistema de 9,5 kW opera con refrigerante ecológico R-32 y destaca por su excelente caudal de ventilación. Cuenta con clasificación estacional A+ en frío, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 9,50 kW
• Alimentación: Monofásica (230V)
• Unidad Interior: PCA-M100KA2
• Control Incluido: PAR-41MAA
Security policy
Delivery policy
Refund policy
The Mitsubishi Electric MSPCZ-100VKA represents absolute excellence in professional industrial ceiling air conditioning for applications of maximum power and continuous demand. With extreme power 9.5kW cold and 11.2kW in heat, this sophisticated single-phase ceiling system constitutes the global reference in japanese technology Mitsubishi Electric with R-32 coolant, ideal for industrial installations, production centers, commercial megasurfaces and critical applications up to 95 square meters.
Highlighting for its excellent energy classification A+ and efficient SEER of 6.0, this model maintains optimized energy consumption 552 kWh annual cold. Its controlled operation 37dB at minimum speed and the optional WiFi with MAC-587IF-E control guarantee maximum intelligent comfort in spaces where maximum monophase power is required and industrial invisible air conditioning.

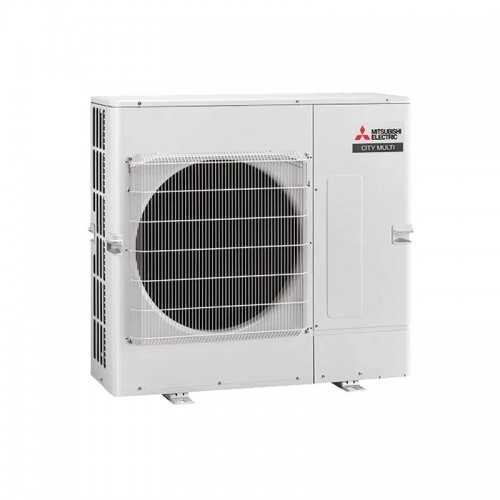

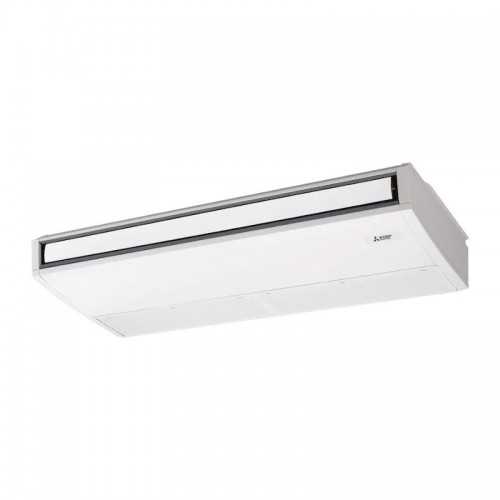

The MSPCZ-100VKA unit is discreetly integrated into the false roof with extended industrial format 230 x 1.600 x 680 mm while the outdoor Unit PUZ-M100VKA2 ensures robust and extreme performance. Its advanced features include standard Inverter Max technology, , wide range of operation (-15°C to +46°C), remote control PAR-41MAA professional and advanced filtering options V-blocking maximum for perfect interior environment with recognized japanese reliability and 3 year warranty.
Main features
▪ Industrial Power 9.5kW
9.5kW cold / 11.2kW heat for industrial applications up to 95m2
🏆 Efficiency A+
SEER 6.0 and SCOP 4.1 excellent - Only 552 kWh annual
🇵 Japanese quality
Standard Inverter Max technology and reliability Mitsubishi Electric
▪ Monophosic food
230V monophasic that simplifies the electrical installation
️ Wide range
Operation from -15°C to +46°C outside
🔇 Industrial Silence 37dB
Silent industrial operation for critical applications
Technical Specifications
Included Advanced Technologies
✓ Standard Inverter Max Technology
Ultra precise maximum power control for industrial energy efficiency
✓ Refrigerant Gas R-32 Industrial
State-of-the-art ecological gas with maximum industrial thermal efficiency
✓ Control PAM Maximum
Maximum range modulation for ultra smooth operation and industrial efficiency
✓ Auto Restart Industrial
Automatic rendition with complete industrial configuration memory
Main applications
🏭 Industrial ships
Up to 95m2 industrial facilities
🏢 Corporate Centres
Big corporate offices
🏪 Shopping Centres
Commercial megasurfaces
💻 Data centres
Critical cooling facilities
Why choose the Mitsubishi Electric MSPCZ-100VKA?
The MSPCZ-100VKA combines legendary japanese quality Mitsubishi Electric with maximum monophasic power ideal for ceiling. With 9.5kW power, SEER 6.0, A+ rating and simplified monophase power supply, is the perfect solution for industrial installations required invisible air conditioning, maximum power and electric simplicity with japanese industrial reliability.
9.5kW
Maximum Power230V
Monof Classic95m2
Industrial CoverageGet yours Mitsubishi Electric MSPCZ-100VKA!
Japanese quality with monophase industrial ceiling air conditioning. Perfect for industrial ships, corporate centers and commercial spaces up to 95m2 that require maximum power with simplified electrical installation.
✓ Maximum 9.5kW
✓ 230V monophasic
✓ Japanese quality
MSPCZ-100VKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PCA-M100KA
- Outdoor Unit
- PUZ-M100VKA
- I send
- Mando cable PAR-40MAA
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.940
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.280
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 680 x 230
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- 76,0
- Net weight (kg)
- 113,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
