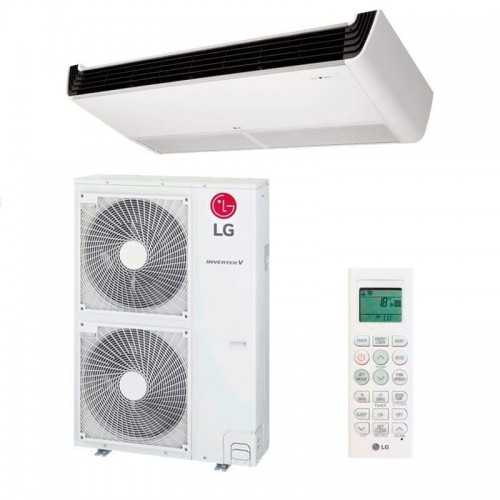

The ceiling LG Comfort + 48 Three-phase
Great power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 13.4 kW system uses ecological refrigerant A-32 and distributes the current load in a balanced manner. It has a seasonal rating To ++ In cold, an air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 13,40 kW
• Feeding: Three-phase
• Indoor Unit: UV48F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 48 trif.
Referencia: TECCONFORT+ 48T
€3,484.96
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 48 Three-phase
Great power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 13.4 kW system uses ecological refrigerant A-32 and distributes the current load in a balanced manner. It has a seasonal rating To ++ In cold, an air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 13,40 kW
• Feeding: Three-phase
• Indoor Unit: UV48F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning ceiling LG 48 three8 model (UV48F.N20) represents the range of maximum industrial power with three-phase feed 380-415V. With a 13,40 kW refrigeration capacity and 15.50 kW heating, this System of the Free Combination Comfort + range incorporates indoor Unit of maximum industrial format with robust dimensions 1.600 x 235 x 690 mm and Maximum capacity inverter technology specifically optimized for heavy industrial three-phase electrical infrastructures and extreme intensive use 24/7.
Composed of the indoor Unit UV48F.N20 of maximum capacity and the outdoor Unit Uud3.u30 Specific for three-phase configuration, this system stands out for its ability to extreme industrial modulation that ranges from 5.40 to 15.68 kW in refrigeration and from 6.20 to 17.52 kW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides maximum air distribution by covering spaces of up to 160 m² with homogeneous comfort and upper three-phase electric stability.
The unit incorporates ecological R32 coolant with 3.0 kg preload, maximum industrial refrigeration system 9.52 / 15,88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed specifically for the most extreme industrial applications with three-phase feed 380-415V / 50 / 60Hz, It offers maximum reliability, durability and electric stability for complex commercial facilities in industrial megaplantas, massive distribution centers, large commercial complexes and professional spaces demanding the highest three-phase air conditioning capacity.
Main features
🏭
Massive commercial complexes
Commercial megancentros, highly surface hypermarkets, massive retail complexes with three-phase feeding.
Why choose the LG UV48F.N20 three-phase?
Maximum three-phase industrial power available!
The LG UV48F.N20 Three-phase represents the cusp of industrial air conditioning with maximum power of 13.4kw, extreme modulation up to 17.5KW, 380V three-phase feeding and construction for limit conditions to provide the most robust solution in megaplantas Industrial, large logistics complexes and spaces of up to 160 m² that demand performance without limitations.
Consult for three-phase industrial megaapplications!
; Color: # 444; "> Maximum three-phase power 13.4kw
Maximum capacity of 13.40 kW refrigeration / 15.50 kW Heating with 380V three-phase feed for megaapplications.
⚡
Industrial modulation 5.4-17.5kW
Extreme industrial modulation range from 5.40 to 17.52 kW for maximum adaptability to extreme variable demands.
🔌
380V industrial three-phase feeding
Three-phase configuration 380-415V for more robust and demanding industrial electrical infrastructures.
🌊
Maximum distribution 28 m³ / min
Maximum industrial air flow of 28.0 m³ / min for mass distribution on the largest industrial surfaces.
🔄
Industrial use three-phase
Specific design for more extreme three-phase industrial applications with continuous operation 24/7.
🎯
COP 3.25 Industrial
Industrial performance coefficient optimized for maximum three-phase power with controlled efficiency.
Three-phase technical specifications
| Feature | Three-phase specification |
|---|---|
| Pattern | UV48F.N20 + UUD3.U30 |
| Electrical supply | 3 / 380-415v / 50 / 60hz |
| Cold power (min-nom-max) | 5,40 - 13,40 - 15,68 kW |
| Power heat (min-nom-max) | 6,20 - 15,50 - 17,52 kW |
| Cold consumption (min-nom-max) | 0.90 - 4,50 - 5,85 kW |
| Heat consumption (min-nom-max) | 0.90 - 4,77 - 5,82 kW |
| Eer / seer | 2.98 / 5.90 |
| COP / SCOP | 3.25 / 4,10 |
| Energy label (cold / heat) | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min |
| Internal sound pressure (high / medium / low) | 48/44/40 dB (A) |
| Exterior sound pressure | 52 dB (A) cold / 53 dB (A) heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg |
| Refrigerant Gas / Preload | R32 / 3.0 kg |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length pipe | 85 meters |
| Maximum | 30 meters |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C |
| Flow outer air | 55 x 2 m³ / min (double fan) |
Benefits LG UV48F.N20 three-phase
✓
Maximum three-phase industrial power available
With 13,4kw three-phase, the most powerful solution for industrial megaplantas, large logistics centers and spaces of 140-160 m².
✓
Maximum three-phase electric stability
Three-phase feeding 380V that guarantees optimal balanced distribution and minimum electric stress in high power.
✓
Extreme industrial modulation up to 17.5kw
Extreme three-phase modulation range that guarantees perfect adaptation to the most variable thermal demands of the market.
✓
Industrial construction for limit conditions
Design and specific three-phase components for the most extreme industrial applications with maximum resistance.
Main applications
🏭
Three-phase industrial megaplantas
Industrial Megaplantas, Mass Production Complexes with 380V High Power Three-phase Infrastructure.
📦
Logistic megayntros
Maximum Logistics Centers, Megaalmacenes, Distribution Hubs with Industrial Three-phase Supply.
🏪
TECCONFORT+ 48T
Data sheet
- Brand
- LG
- Indoor Unit
- UV48F.N20
- Outdoor Unit
- UUD3.U30
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- SEER
- 5,90
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.770
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
