The ceiling LG Comfort + 60 Three-phase
Maximum power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces and industrial warehouses. This robust 14.4 kW system uses ecological refrigerant A-32 and distributes the electric charge balanced between its phases. It has a powerful air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 14,40 kW
• Feeding: Three-phase
• Indoor Unit: UV60F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 60 trif.
Referencia: TECCONFORT+ 60T
€4,031.72
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 60 Three-phase
Maximum power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces and industrial warehouses. This robust 14.4 kW system uses ecological refrigerant A-32 and distributes the electric charge balanced between its phases. It has a powerful air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 14,40 kW
• Feeding: Three-phase
• Indoor Unit: UV60F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description

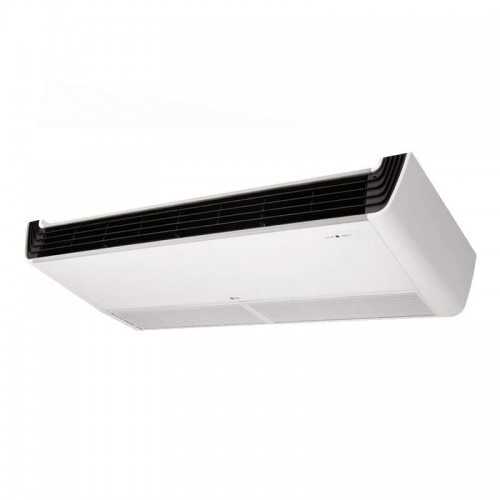

The Air conditioning ceiling LG model 60 three-phase (UV60F.N20) represents the absolute cusp of the industrial range with three-phase feed 380-415V. With a 14,40 kW refrigeration capacity and heating of 16,80 kW, this System of the Free Combination Comfort + range incorporates indoor Unit of absolute maximum industrial format with robust dimensions 1.600 x 235 x 690 mm and Inverter technology of maximum absolute capacity specifically optimized for heavier industrial three-phase electrical infrastructures and extreme intensive use without limitations 24/7.

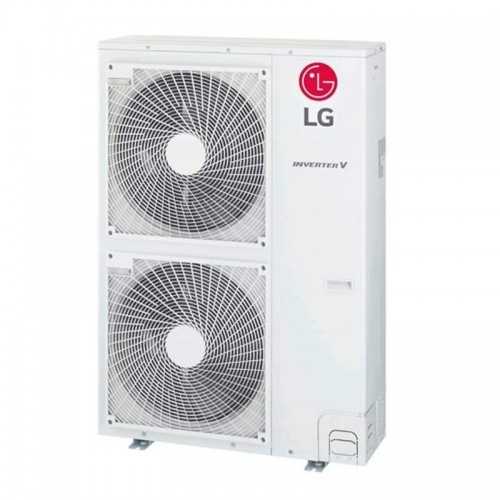

Composed of the indoor Unit UV60F.N20 maximum absolute capacity and the outdoor Unit UUD3.U30 Specific for three-phase configuration, this system stands out for its ability to absolute extreme industrial modulation that covers from 5.80 to 15.55 kW in refrigeration and from 6.70 to 18.14 kW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides absolute maximum air distribution by covering spaces of up to 180 m² with homogeneous comfort and maximum three-phase electric stability.
The unit incorporates ecological R32 coolant with 3.0 kg preload, absolute maximum industrial refrigeration system 9.52 / 15.88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed specifically for the most extreme industrial megaapplications with three-phase feed 380-415V / 50 / 60Hz, it offers maximum absolute reliability, extreme durability and upper three-phase electric stability for complex commercial facilities in continental industrial megaplantas, massive international distribution centers, large commercial complexes and occupational spaces demanding the air conditioning Highest three-phase available in the world market.
Main features
🏭
Maximum totphase maximum power 14.4kw
Absolute maximum capacity of 14.40 kW refrigeration / 16,80 kW Heating with 380V three-phase feed for megaapplications without limits.
⚡
Absolute extreme modulation 5.8-18.1kW
Absolute end industrial modulation range from 5.80 to 18.14 kW for maximum adaptability without limitations.
🔌
Maximum three-phase feeding 380V
Three-phase configuration 380-415V for the most robust and complex industrial electrical infrastructures in the world.
🌊
Absolute maximum distribution 28 m³ / min
Flow of an absolute maximum industrial air of 28.0 m³ / min for mass distribution on the largest surfaces in the world.
🔄
Industrial use Absolute extreme
Specific design for more extreme three-phase industrial megaapplications with continuous operation without limitations.
🎯
COP 3.00 Maximum Industrial
Industrial performance coefficient optimized for maximum three-phase absolute power with controlled efficiency.
Three-phase technical specifications
| Feature | Three-phase specification |
|---|---|
| Pattern | UV60F.N20 + UUD3.U30 |
| Electrical supply | 3 / 380-415v / 50 / 60hz |
| Cold power (min-nom-max) | 5,80 - 14,40 - 15,55 kW |
| Power heat (min-nom-max) | 6,70 - 16,80 - 18,14 kW |
| Cold consumption (min-nom-max) | 1,10 - 5,33 - 5,97 kW |
| Heat consumption (min-nom-max) | 1,10 - 5,60 - 6,44 kW |
| Eer / seer | 2.70 / 5,70 |
| COP / SCOP | 3.00 / 4,10 |
| Energy label (cold / heat) | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min |
| Internal sound pressure (high / medium / low) | 48/44/40 dB (A) |
| Exterior sound pressure | 54 dB (A) Cold / 54 dB (A) Heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg |
| Refrigerant Gas / Preload | R32 / 3.0 kg |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length pipe | 85 meters |
| Maximum | 30 meters |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C |
| Flow outer air | 55 x 2 m³ / min (double fan) |
Benefits LG UV60F.N20 three-phase
✓
Maximum absolute worldwide world power
With 14.4kw three-phase, the most powerful solution available for continental megaplantas and spaces of 160-180 m² without limitations.
✓
Absolute three-phase electric stability
Three-phase feed 380V that guarantees the most balanced and stable distribution available at maximum power.
✓
Absolute extreme modulation up to 18.1kw
Range of absolute extreme three-phase modulation that guarantees perfect adaptation to the world's variable demands.
✓
The maximum three-phase capacity available worldwide
Represents the absolute cusp of technology LG with the highest three-phase power available in roof air conditioning.
Main applications
🏭
Continental industrial megaplantas
Industrial megaplantas of continental scale, mass production complexes with 380V three80V three80V infrastructure.
📦
International Logistics Hubs
Logistic centers of maximum world size, megaalmacenes intercontinental, three-phase global distribution hubs.
🏪
Commercial Megacomplex
Commercial megancentros, hypermarkets of maximum world surface, massive retail complexes with three-phase feeding.
Why choose the LG UV60F.N20 three-phase?
The maximum world three-phase industrial power!
The LG UV60F.N20 Three-phase represents the absolute cusp of global industrial air conditioning with maximum power of 14.4kw, extreme modulation up to 18.1kw, 380V three-phase feeding and construction for limit conditions to provide the most robust solution available in Continental industrial megaplantas, large international logistics complexes and spaces of up to 180 m² that demand absolute performance without limitations.
See for global scale industrial megaprojects!
TECCONFORT+ 60T
Data sheet
- Brand
- LG
- Indoor Unit
- UV60F.N20
- Outdoor Unit
- UUD3.U30
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.400
- Refrigerator capacity (kcal / h)
- 12.384
- Nominal consumption Cold (W)
- 5.330
- SEER
- 5,70
- Heat capacity (W)
- 16.800
- Heat capacity (Kcal / h)
- 14.448
- Nominal heat consumption (W)
- 5.600
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
