The ceiling LG Comfort + 42 single-phase
Great power commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 12.1 kW single-phase system uses ecological refrigerant A-32 For a high seasonal performance. It offers a powerful air flow distributed in a homogeneous way, optimized operation and excellent professional durability.
• Refrigerator power: 12,10 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV42F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 42 Monof.
Referencia: TECCONFORT+ 42M
€2,735.14
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 42 single-phase
Great power commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 12.1 kW single-phase system uses ecological refrigerant A-32 For a high seasonal performance. It offers a powerful air flow distributed in a homogeneous way, optimized operation and excellent professional durability.
• Refrigerator power: 12,10 kW
• Air flow: 28.0 m³ / min
• Indoor Unit: UV42F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description

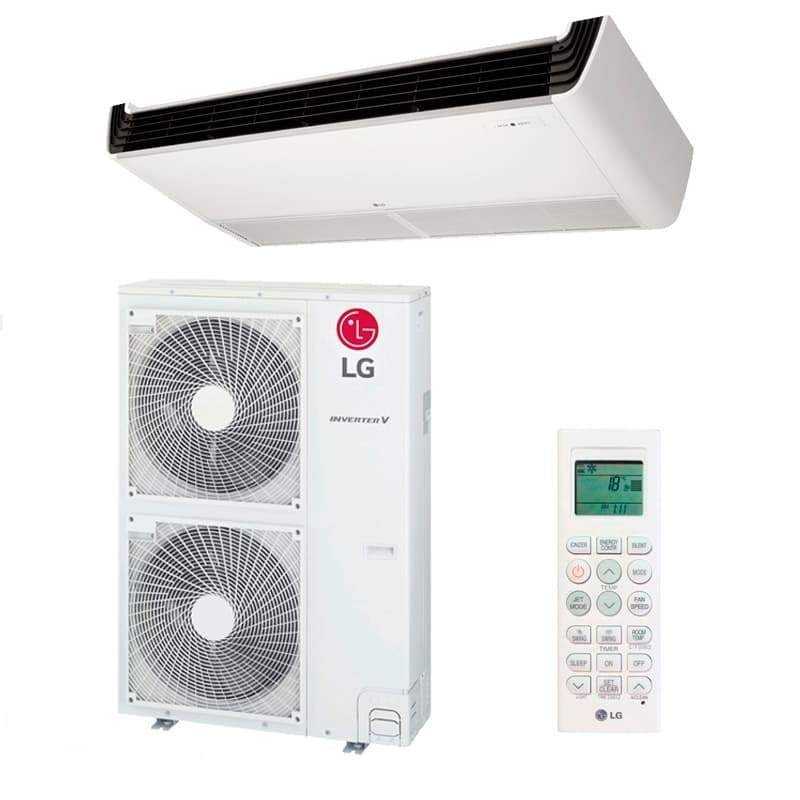

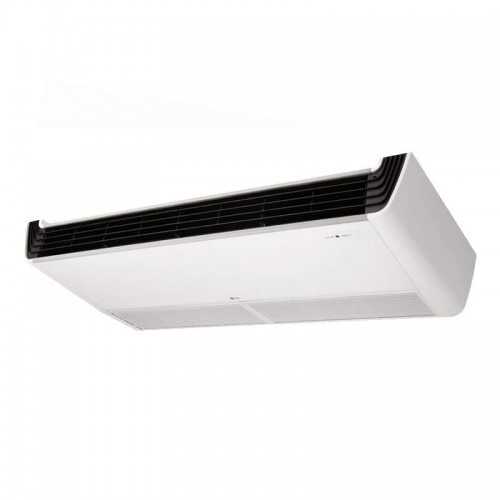

The Air conditioning ceiling LG model 42 (UV42F.N20) represents the upper power range with its refrigeration capacity of 12.10 kW and 13.50 kW heating. This System of the Free Combination Comfort + range incorporates indoor Unit large format with robust dimensions 1.600 x 235 x 690 mm and advanced Inverter technology that guarantees exceptional performance for industrial applications, large shopping centers and spaces that require intensive air conditioning.

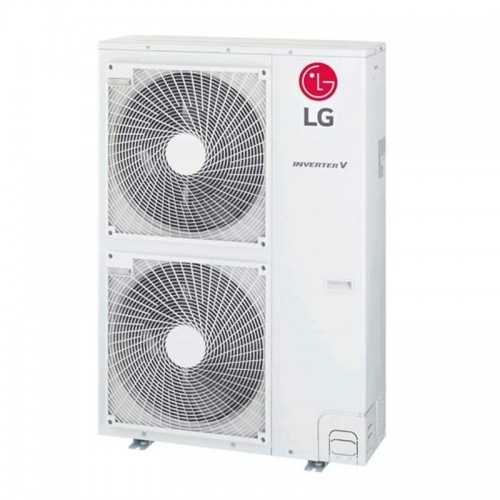

Composed of the indoor Unit UV42F.N20 high capacity and outdoor Unit UUD1.U30 with double fan for single-phase version or UUD3.U30 for three-phase version, this system stands out for its intelligent modulation capacity that ranges from 4.80 to 14.50 kW in refrigeration and from 5.40 to 16.20 KW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides powerful air distribution by covering spaces of up to 140 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with 3.0 kg preload, Robust refrigerated connection system 9.52 / 15.88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed for intensive and continuous use, it offers maximum reliability for complex commercial facilities in industrial buildings, distribution centers, large corporate offices and professional spaces that demand high capacity air conditioning.
Main features
🏭
Industrial power 12.1kw
Industrial capacity of 12.10 kW refrigeration / 13.50 kW Heating for demanding applications up to 140 m².
⚡
Broad modulation 4.8-16.2kW
Exceptional modulation range from 4.80 to 16.20 kW to adapt to any thermal demand.
🔌
Electric dual configuration
Available in single-phase and three-phase version to adapt to industrial electrical infrastructures.
🌊
Mass distribution 28 m³ / min
Massive air flow of 28.0 m³ / min for uniform distribution on large industrial surfaces.
🔄
Intensive use 24/7
Designed for continuous and intensive operation in demanding commercial and industrial applications.
🎯
COP 3.60 Efficient
Optimized performance coefficient that guarantees energy efficiency despite high power.
Technical specifications
| Feature | Single-phase | Three-phase |
|---|---|---|
| Pattern | UV42F.N20 + UUD1.U30 | UV42F.N20 + UUD3.U30 |
| Cold power (min-nom-max) | 4,80 - 12:10 - 14,50 kW | 4,80 - 12,10 - 14,16 kW |
| Power heat (min-nom-max) | 5,40 - 13,50 - 16,20 kW | 5,40 - 13,50 - 17,52 kW |
| Cold consumption (min-nom-max) | 0.70 - 3,64 - 4,91 kW | 0.80 - 3,90 - 5.07 kW |
| Heat consumption (min-nom-max) | 0.80 - 3,75 - 4,88 kW | 0.80 - 3,75 - 4,88 kW |
| Eer / seer | 3,10 / 6,30 | 3,10 / 6,30 |
| COP / SCOP | 3.60 / 4,10 | 3.60 / 4,10 |
| Energy label (cold / heat) | - / - | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm | |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm | |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min | |
| Internal sound pressure (high / medium / low) | 46/43/40 dB (A) | |
| Exterior sound pressure | 51 dB (A) Cold / 52 dB (A) Heat | 51 dB (A) Cold / 52 dB (A) Heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg | |
| Refrigerant Gas / Preload | R32 / 3.0 kg | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Maximum length pipe | 85 meters | |
| Maximum | 30 meters | |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C | |
Benefits LG Uv42f.n20
✓
Industrial power for demanding applications
With 12.1kw of power, ideal for industrial buildings, large shopping centers, warehouses and spaces of 120-140 m².
✓
Exceptional modulation for maximum efficiency
Modulation range from 4.8 to 16.2 kW that guarantees perfect adaptation to any thermal demand.
✓
Industrial reliability for continuous use
Designed for 24/7 operation in industrial applications with robust components and exceptional durability.
✓
Electrical versatility for any installation
Singhafish and three-phase configuration to adapt to commercial and industrial electrical infrastructures.
Main applications
🏭
Industrial buildings
Industrial warehouses, large workshops, production plants and industrial spaces that require powerful and continuous air conditioning.
🏪
Large commercial surfaces
Large stores, wide shopping centers, hypermarkets and large-scale retail spaces.
📦
Distribution centers
Logistic warehouses, distribution centers, deposits and storage spaces that need climate control.
Why choose the LG Uv42f.n20?
Industrial power for demanding applications!
The LG UV42F.N20 combined industrial power of 12.1kw, exceptional modulation up to 16.2kw, dual electrical versatility and 24/7 reliability to provide superior air conditioning, large shopping centers and spaces up to 140 m² They demand continuous performance.
Ask technical advice for industrial applications!
TECCONFORT+ 42M
Data sheet
- Brand
- LG
- Indoor Unit
- UV42F.N20
- Outdoor Unit
- UUD1.U30
- I send

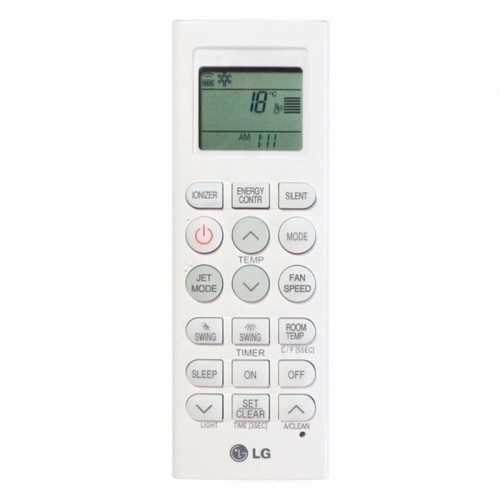

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 3.900
- SEER
- 6,30
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.750
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
