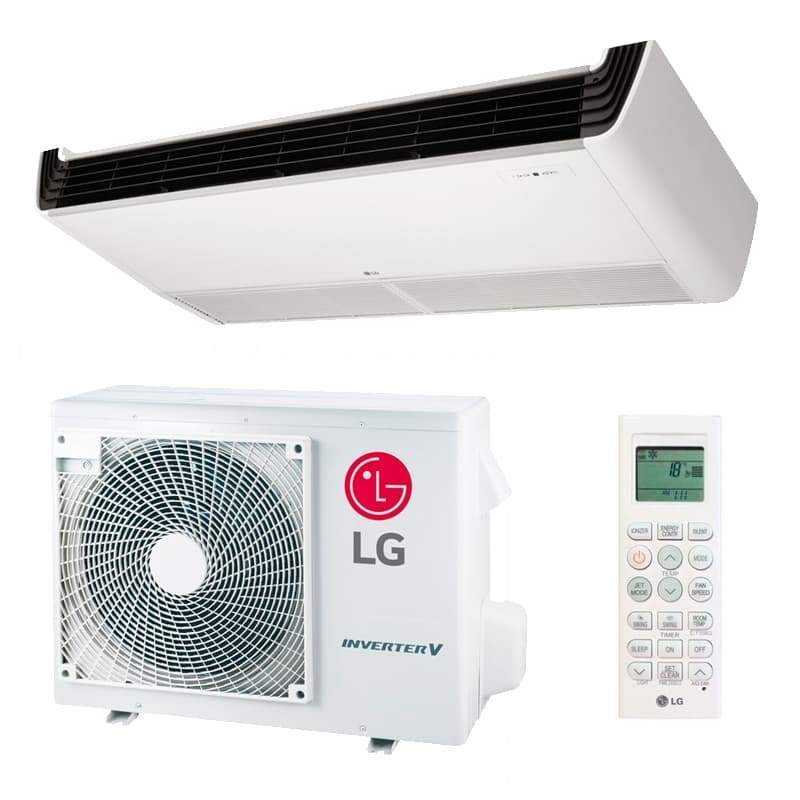

The ceiling LG Comfort 36 single-phase
Large capacity commercial solution For suspended installation under ceiling, optimal to maximize useful space in large volume premises. This 9,80 kW system uses ecological refrigerant A-32 For high operational performance. It has a seasonal rating To ++ In refrigeration, a powerful ventilation flow and excellent technical reliability.
âą Refrigerator power: 9,80 kW
âą Seasonal efficiency: A ++ / A +
âą Indoor Unit: UV36F.N20
âą Included Wireless Command
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort 36 Monof.
Referencia: TECCONFORT 36M
âŹ2,167.81
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
The ceiling LG Comfort 36 single-phase
Large capacity commercial solution For suspended installation under ceiling, optimal to maximize useful space in large volume premises. This 9,80 kW system uses ecological refrigerant A-32 For high operational performance. It has a seasonal rating To ++ In refrigeration, a powerful ventilation flow and excellent technical reliability.
âą Refrigerator power: 9,80 kW
âą Seasonal efficiency: A ++ / A +
âą Indoor Unit: UV36F.N20
âą Included Wireless Command
Security policy
Delivery policy
Refund policy
Air conditioning ceiling LG Comfort 36
Single-phase ceiling unit with Refrigerant Gas R32
9.8 kW
Refrigeration
To ++
Energy efficiency
R32
Refrigerant Gas Ecological
80-120 mÂČ
Recommended area
đ LG Comfort ceiling 36 - Maximum commercial power
High power ceiling unit with 9.8 kW refrigerators, designed for broad commercial spaces that require intense air conditioning and perfect architectural integration.
đĄ Commercial technology
- Included installation: Extended design 1600x235x690mm
- Powerful distribution: Up to 28 mÂł / min of maximum flow
- Seer 6,10: Energy efficiency A ++ optimized
- 4 speeds: Precise air flow control

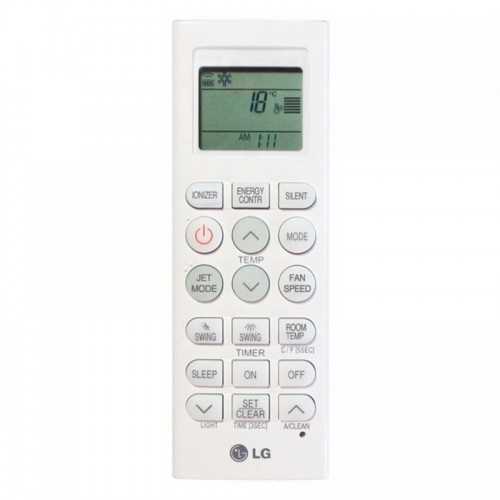

- Wireless Command: Professional remote control
đŻ Commercial advantages
- Maximum power: 9.8 kW for broad commercial spaces
- Extended design: 1600mm wide for greater coverage
- EER 2.90: Optimized performance for intensive use
- Robust installation: Supports 36.7kg for commercial use
- Reliability LG: Technology for demanding applications
đą Ideal applications
Spacious offices
80-120 mÂČ
Shopping centers
Large stores
Restaurants
Main halls
Industry
Light ships
đïž Extended installation
Extended design of 1600x235x690mm for greater coverage. Requires 235mm tall and supports 36.7kg for robust commercial installations.
đ Maximum flow
Variable air flow from 20 to 28 mÂł / min. Powerful distribution in 4 directions for effective air conditioning of wide spaces.
đ Commercial performance
Controlled noise levels: 46/43/40 dB (a). Optimized for commercial environments that require power without compromising acoustic comfort.
đż R32 technology
Refrigerant Gas R32 with GWP 675 and load of 1.2kg. Wide range: -10 ° C A + 48 ° C cold, -15 ° C A + 18 ° C in heat.
đ Technical specifications
| Feature | Value | Unit |
|---|---|---|
| Interior model | Uv36f.n20 | - |
| External model | Uuc1.u40 | - |
| Refrigeration | 3,80 - 9,80 - 10,50 | kW (min-nom-max) |
| Heat power | 4:10 - 10,30 - 11.50 | kW (min-nom-max) |
| Cold consumption | 0.70 - 3,28 - 3,87 | kW (min-nom-max) |
| Heat consumption | 0.60 - 2.78 - 3,45 | kW (min-nom-max) |
| EER / COP | 2.90 / 3,70 | W / w |
| Seer / Scop | 6.10 (A ++) / 4,20 (A +) | - |
| Indoor | 28/24/20 | mÂł / min (h / m / l) |
| Indoor sound level | 46/43/40 | dB (A) (H / m / l) |
| Exterior sound level | 54/56 | dB (A) (cold / heat) |
| Dimensions | 1600x235x690 | mm (an Ă al Ă PR) |

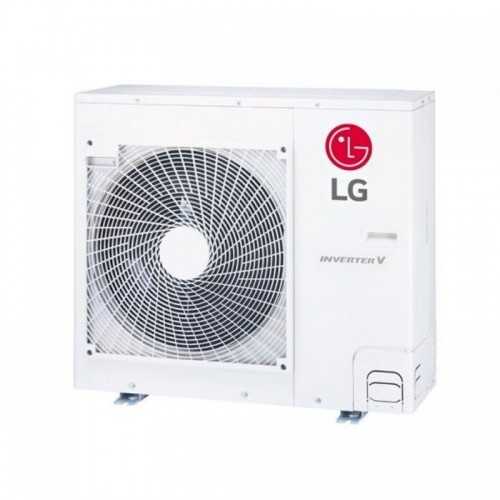

| Exterior dimensions | 870x650x330 | mm (an Ă al Ă PR) |
| Indoor / outdoor weight | 36.7 / 44.5 | kg |
| Refrigerant Gas | R32 | - |
| Preload Refrigerant Gas | 1,200g (0.81 tcoâeq) | - |
| Liquid / gas pipes | 9.52 / 15,88 | mm (3/8 "/ 5/8") |
| Length pipe | 5/30 | m (min / max) |
| Maximum | 30 | meters |
| Cold performance range | -10 / +48 | ° C (min / max) |
| Range Running Heat | -15 / +18 | ° C (min / max) |
Do you need maximum commercial power?
The LG Comfort ceiling 36 is the definitive solution for broad commercial spaces that require intense air conditioning with invisible design and cutting-edge technology.
Request a trade budget TECCONFORT 36M
Data sheet
- Brand
- LG
- Indoor Unit
- UV36F.N20
- Outdoor Unit
- UUC1.U40
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Recommended area (M2)
- Estancia de 90 a 100 m2
- Refrigerator capacity (W)
- 9.800
- Refrigerator capacity (kcal / h)
- 8.428
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- SEER
- 6,10
- Heat capacity (W)
- 10.300
- Heat capacity (Kcal / h)
- 8.858
- Nominal heat consumption (W)
- 2.780
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 870 x 330 x 650
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi
