Ground-ceiling Haier Ac35s2sg2fa (pm)
Versatile High Power Solution Designed to be installed both on the ceiling and in soil, adapting to any commercial space. This 3.5 kW Inverter Team Integra Connectivity WiFi Optional and technology increase For a total comfort. Classification To ++, Silent operation, 5-speed fan and compatibility with UVC sterilization For a purest air.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Floor-ceiling 35 HC MONOF. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC35S2SG1FA (H)M
€1,081.90
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier Ac35s2sg2fa (pm)
Versatile High Power Solution Designed to be installed both on the ceiling and in soil, adapting to any commercial space. This 3.5 kW Inverter Team Integra Connectivity WiFi Optional and technology increase For a total comfort. Classification To ++, Silent operation, 5-speed fan and compatibility with UVC sterilization For a purest air.
• Installation: floor or ceiling
• Efficiency A ++ / A +
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling 35 HC Haier Health-connect it represents the perfect solution for medium spaces that require versatile and efficient air conditioning. With a nominal power of 3.5 kW in refrigeration and 4.0 kW in heating, this system of the Health-Connect range combines elegant design, advanced Inverter technology and integrated Wi-Fi connectivity to provide maximum comfort in offices, medical consultations and medium commercial spaces.

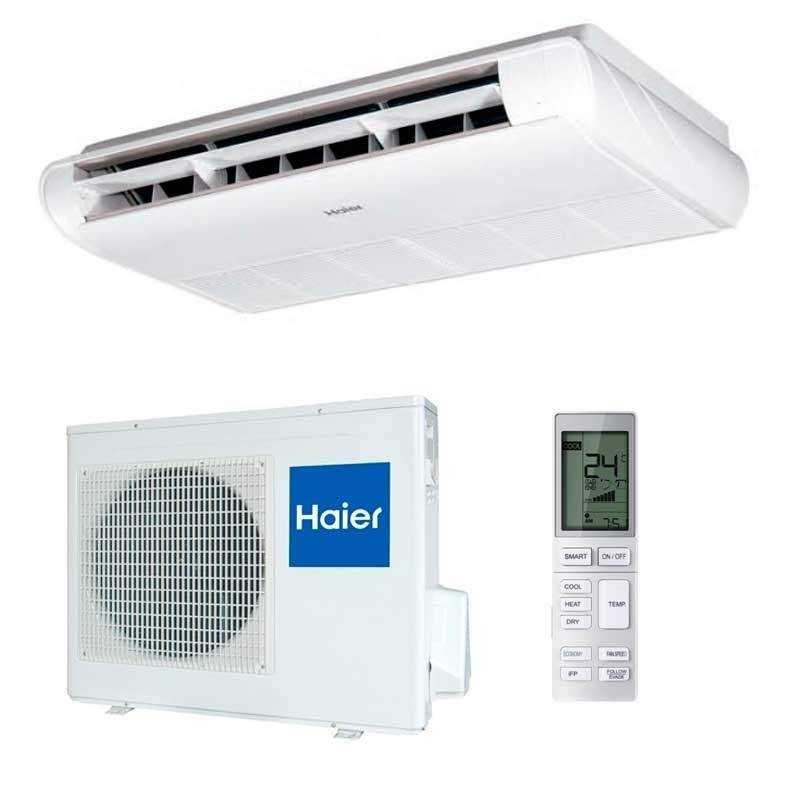

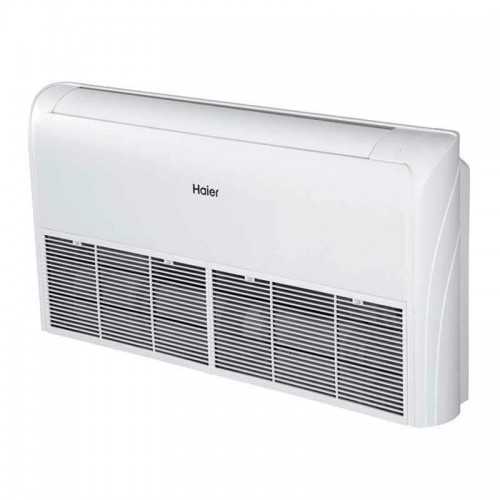

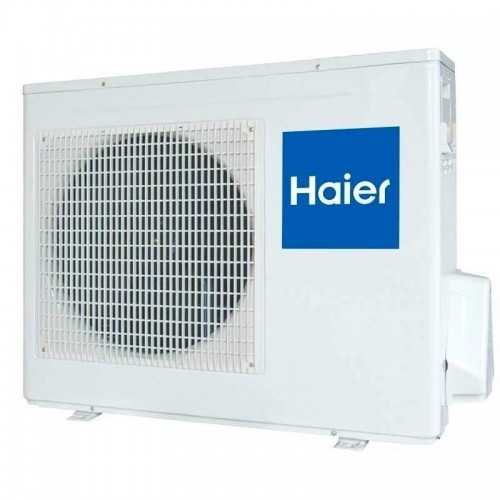

Composed of the indoor Unit AC35S2SG2FA (H) of compact design and the outdoor Unit 1U35S2SM1FA-2 with rotary inverter compressor, this system stands out for its exceptional Seer 8.50 Energy Efficiency (A +++) that guarantees the minimum energy consumption. With ultrasilence sound levels from 30 dB (A) and a volume of air treated up to 750 m³ / h, it provides optimal comfort without compromising the tranquility of the environment.
The unit incorporates Health-Connect technology that allows total control from Smartphone, UVC Sterilization System for Healthy Air, and Outdoor Air Function for Continuous Ventilation. With 5 adjustable fan speeds and installation capacity both soil and ceiling up to 4.2 meters high, it offers maximum installation flexibility adapting to any architectural space.
Main features
📱
Health-Connect Wi-Fi
Total intelligent control from smartphone with integrated Wi-Fi connectivity, advanced programming and real-time monitoring.
🔄
Dual installation
Total versatility: installation on floor or ceiling up to 4.2m high, adapting perfectly to any space.
🌟
Maximum efficiency at +++
SEER 8.50 (A +++) exceptionally guarantees the minimum energy consumption and maximum savings in electricity billing.
🦠
UVC sterilization
Integrated UVC sterilization technology that eliminates viruses, bacteria and microorganisms for clean and healthy air.
🔧
5 velocities Fan
Accurate control of air flow with 5 speeds: Turbo, high, medium, low and superb for custom comfort.
🔇
Ultrasilencious 30 dB (A)
Exceptionally silent operation from 30 dB (A) thanks to optimized DC Inverter fans.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | AC35S2SG2FA (H) + 1U35S2SM1FA-2 |
| Cold nominal power (min-nom-max) | 1,00 - 3,50 - 4,30 kW |
| Nominal power heat (min-nom-max) | 1,00 - 4,00 - 5,30 kW |
| Nominal consumption Cold (Lo-nom-Max) | 0.30 - 0.91 - 1.50 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.50 - 1.07 - 1.60 kW |
| EER / COP | 3,81 / 3,73 |
| Seer / Scop | 8.50 / 5,20 |
| Energy label (cold / heat) | A +++ / A ++ |
| Annual consumption refrigeration / heating | 146/945 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1,000 x 230 x 680 mm |
| Dimensions Outdoor Unit (Anxprxal) | 800 x 280 x 553 mm |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 750/620 / 500/400 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 39/36 / 33/30 db (a) |
| Exterior sound pressure | 48 dB (A) |
| Refrigerant Gas / Load | R32 / 0.78 kg |
| Maximum tubing length | 20 m |
| Difference maximum height | 10 m |
| Liquid connections / gas | 6.35 mm (1/4 ") / 9.52 mm (3/8") |
| Weight Indoor Unit Outdoor | 26.0 / 30.0 kg |
| Compressor type | Rotating inverter |
| Range Running cold / heat | -20 ° C A + 43 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning floor-ceiling 35 HC
✓
Perfect for residential and commercial medium spaces
With 3.5 kW of power, it is ideal for spaces of 40-50 m², small offices, medical consultations, lounges, main bedrooms and medium business premises.
✓
Maximum energy saving A +++
SEER 8.50 Exceptional that guarantees an annual consumption of only 146 kWh in refrigeration and 945 kWh in heating, significantly reducing energy costs.
✓
Installation versatile floor-ceiling
Total installation flexibility on floor or ceiling up to 4.2 meters high, adapting to any architectural configuration without compromising the interior design.
✓
Healthy Environment with UVC
Integrated UVC sterilization technology and external air function that guarantees clean, healthy and renewed air constantly.
Why choose the air conditioning floor-ceiling 35 HC?
Main applications
🏠
Residential spaces
Salons, main bedrooms, studios and spaces of 40-50 m² that require efficient and silent air conditioning with intelligent control.
🏢
Small offices
Individual offices, medical consultations, Small meeting rooms and offices that need comfortable environment and healthy air.
🏪
Medium businesses
Small shops, offices, hairdressers and commercial spaces that require discrete and efficient air conditioning for customer comfort.
HEALTH-CONNECT technology
📱
Wi-Fi control integrated
Check temperature, speed and mode from anywhere using the HEALTH-CONNECT APP with intuitive interface and immediate response.
⏰
Advanced programming
Configure custom schedules, activate vacation mode and automatically optimize operation according to your daily routines.
📊
Intelligent monitoring
Visualize energy consumption in real time, receive maintenance alerts and access advanced system diagnoses.
Intelligent air conditioning for perfect spaces!
The air conditioning floor-ceiling 35 HC combines maximum efficiency at +++, versatile installation, Health-Connect technology and ultrasilence functioning to provide the most advanced air conditioning solution for medium spaces. Experience the intelligent comfort of the future.
Ask your personalized budget today!
KIT AC35S2SG1FA (H)M
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U35S2SM1FA-2
- I send

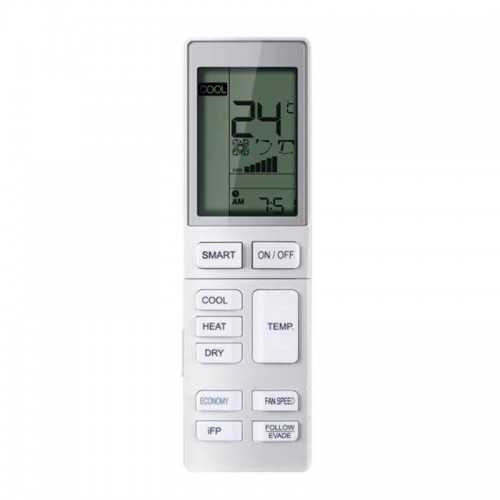

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- Energy class (cold)
- A+++
- SEER
- 8,50
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,47
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1000 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 800 x 275 x 553
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- 31,5
- Net weight (kg)
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- WiFi Included
