The ceiling LG Comfort + 30 single-phase
High performance commercial solution For suspended installation under ceiling, optimal to optimize space in stores and offices. This 7.7 kW single-phase system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, a powerful air flow and excellent professional durability.
• Refrigerator power: 7.70 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV30F.N10
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning ceiling LG Comfort + 30 Monof.
Referencia: TECCONFORT+ 30M
€2,127.34
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 30 single-phase
High performance commercial solution For suspended installation under ceiling, optimal to optimize space in stores and offices. This 7.7 kW single-phase system uses ecological refrigerant A-32 And it offers a remarkable energy savings. It has a seasonal rating To ++ In cold, a powerful air flow and excellent professional durability.
• Refrigerator power: 7.70 kW
• Seasonal efficiency: A ++ / A +
• Indoor Unit: UV30F.N10
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description

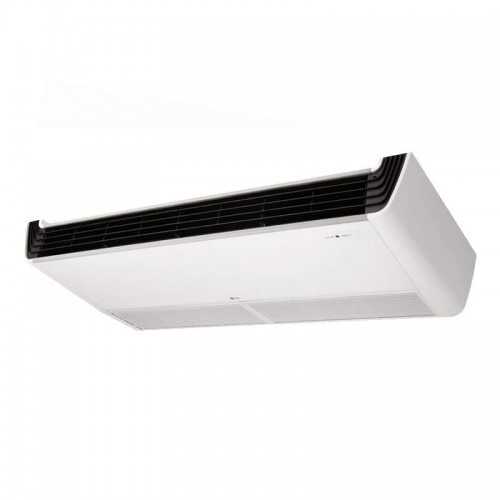

The Air conditioning ceiling LG model 30 (UV30F.N10) represents the technological evolution in commercial air conditioning with its cooling power of 7.70 kW and heating of 8.60 kW. This System of the Free Combination Confort + range incorporates advanced Inverter technology that guarantees superior performance and the maximum installation flexibility with up to 85 meters of pipe length, Ideal for complex commercial facilities and large spaces.

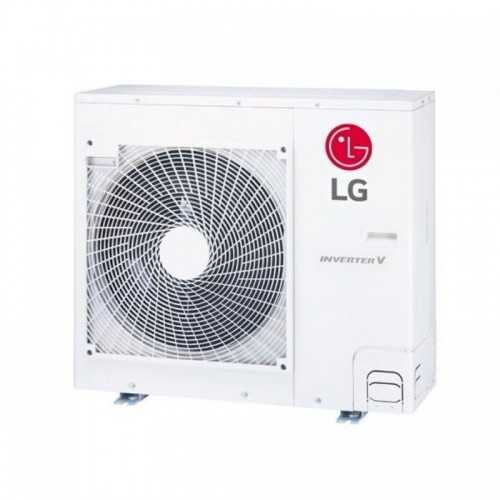

Composed of the indoor Unit UV30F.N10 with compact dimensions 1,200 x 235 x 690 mm and outdoor Unit UUD1.U30 With double fan, this system stands out for its intelligent modulation capacity ranging from 3.10 to 8,80 kW in refrigeration and from 3.40 to 9.60 kW in heating. With a volume of air treated up to 19.0 m³ / min and sound levels controlled from 43 dB (A), it provides uniform air distribution by covering spaces of up to 90 m² with homogeneous comfort.
The unit incorporates ecological R32 coolant with 3.0 kg preload, 9.52 / 15.88 mm optimized refrigeration connections and exceptional installation capability with maximum pipe length of 85 meters. With energy rating A ++ / A + and operating range extended up to 52 ° C / -20 ° C, offers total flexibility for complex commercial facilities in large offices, shopping centers, ships and demanding professional spaces.
Main features
🏗️
Installation up to 85m
Maximum flexibility with pipe length up to 85 meters for complex and distant commercial facilities.
⚡
Robust power 7.7kw
Powerful capacity of 7.70 kW refrigeration / 8,60 kW Heating for wide spaces up to 90 m².
🌡️
Extended Range -20 ° C / 52 ° C
Reliable operation in extreme conditions from -20 ° C up to 52 ° C for any climate.
🔄
Double ventilator
Outdoor Unit UUD1.U30 with double fan (55 x 2 m³ / min) for maximum thermal performance.
🌊
Maximum flow 19 m³ / min
Treated air volume of up to 19.0 m³ / min for efficient distribution in spacious spaces.
♻️
R32 ecological 3kg
Refrigerant Gas R32 with 3.0 kg of preload for maximum thermal efficiency and environmental sustainability.
Technical specifications
| Feature | Specification |
|---|---|
| Pattern | UV30F.N10 + UUD1.U30 |
| Cold power (min-nom-max) | 3,10 - 7,70 - 8,80 kW |
| Power heat (min-nom-max) | 3,40 - 8,60 - 9,60 kW |
| Cold consumption (min-nom-max) | 0.50 - 2,25 - 3.08 kW |
| Heat consumption (min-nom-max) | 0.50 - 2,50 - 3,20 kW |
| Eer / seer | 3,42 / 6,80 |
| COP / SCOP | 3,44 / 4,40 |
| Energy label (cold / heat) | To ++ / a + |
| Dimensions Indoor Unit (Anxalxpr) | 1.200 x 235 x 690 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm |
| Air flow (high / medium / low) | 19.0 / 17.5 / 16.0 m³ / min |
| Internal sound pressure (high / medium / low) | 46/44 / 43 dB (A) |
| Exterior sound pressure | 50 dB (A) cold / 52 dB (A) heat |
| Weight Indoor Unit Outdoor | 28.0 kg / 89.0 kg |
| Refrigerant Gas / Preload | R32 / 3.0 kg |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length pipe | 85 meters |
| Maximum | 30 meters |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C |
| Flow outer air | 55 x 2 m³ / min (double fan) |
Benefits LG Uv30f.n10
✓
Maximum commercial installation flexibility
Pipe length up to 85 meters Ideal for complex commercial facilities, large buildings and distant locations.
✓
Solution for broad commercial spaces
With 7.7kw power, perfect for large offices, shopping centers, small ships and spaces of 80-90 m².
✓
Robust performance in extreme conditions
Extended operating range up to 52 ° C / -25 ° C and double outer fan for reliable operation all year round.
✓
Energy Efficiency Superior A ++
Seer 6.80 and SCOP 4.40 that guarantee excellent balance between power and optimized energy consumption.
Main applications
🏢
Large and complex offices
Spacious corporate offices, open work spaces, business centers and buildings with distant facilities.
🏪
Medium shopping centers
Large stores, small supermarkets, shopping centers and retail spaces that require powerful air conditioning.
🏭
Naves and industrial spaces
Small ships, spacious workshops, warehouses and industrial spaces that need flexible and powerful facilities.
Why choose the LG Uv30f.n10?
Maximum flexibility for complex projects!
The LG UV30F.N10 combines rubbish power of 7.7kw, installation up to 85 meters, double outer fan and extended operating range to provide the most versatile solution in comprehensive commercial spaces and projects with special installation requirements.
Ask for personalized technical advice!
TECCONFORT+ 30M
Data sheet
- Brand
- LG
- Indoor Unit
- UV30F.N10
- Outdoor Unit
- UUC1.U40
- I send
- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 65 m2
- Refrigerator capacity (W)
- 7.700
- Refrigerator capacity (kcal / h)
- 6.622
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- SEER
- 6,80
- Heat capacity (W)
- 8.600
- Heat capacity (Kcal / h)
- 7.396
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,4
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1200 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 834
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
