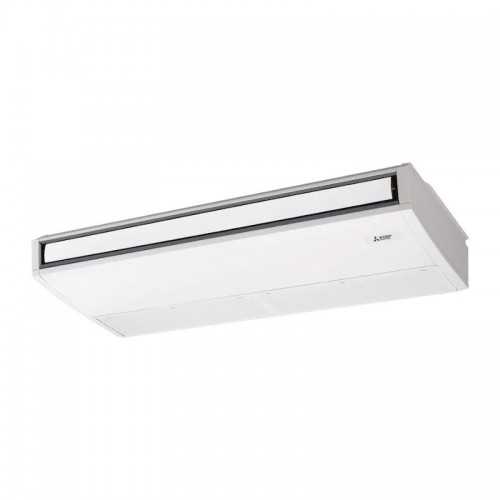

Techo Mitsubishi Electric MSPCZ-100YKA2 (Trifásico)
Solución comercial trifásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales de restauración y oficinas diáfanas. Este robusto sistema de 9,5 kW opera con refrigerante ecológico R-32 y distribuye la carga eléctrica de forma equilibrada entre sus fases. Cuenta con clasificación estacional A+ en frío, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 9,50 kW
• Alimentación: Trifásica (400V)
• Unidad Interior: PCA-M100KA2

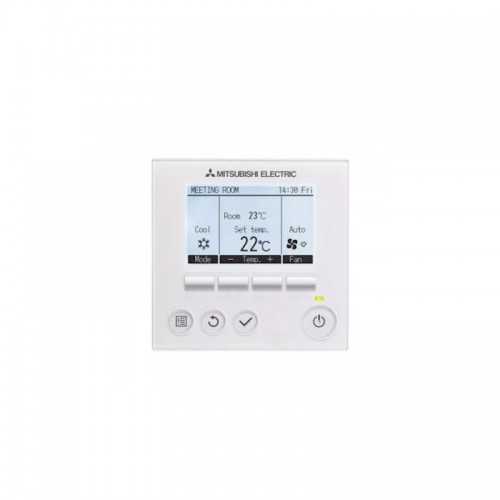

• Control Incluido: PAR-41MAA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

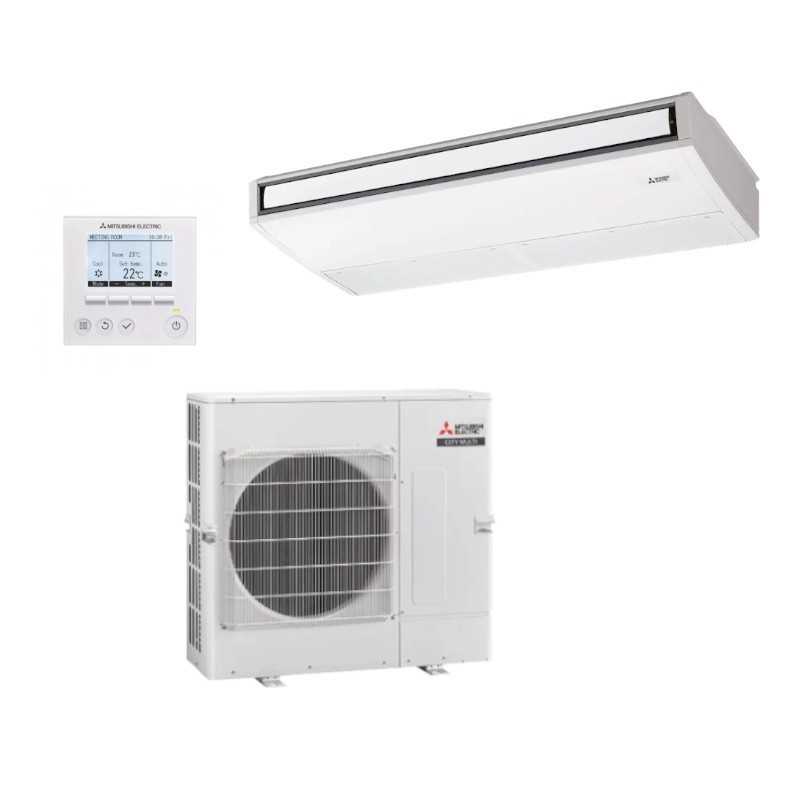

Air Conditioning MSPCZ-100YKA Trif. Mitsubishi Electric Standard Inverter
Referencia: MSPCZ-100YKA
€3,509.99
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Techo Mitsubishi Electric MSPCZ-100YKA2 (Trifásico)
Solución comercial trifásica de gran potencia para instalación suspendida bajo techo, óptima para la climatización de grandes superficies, locales de restauración y oficinas diáfanas. Este robusto sistema de 9,5 kW opera con refrigerante ecológico R-32 y distribuye la carga eléctrica de forma equilibrada entre sus fases. Cuenta con clasificación estacional A+ en frío, tecnología Replace y total durabilidad profesional.
• Potencia Frigorífica: 9,50 kW
• Alimentación: Trifásica (400V)
• Unidad Interior: PCA-M100KA2
• Control Incluido: PAR-41MAA
Security policy
Delivery policy
Refund policy
The Mitsubishi Electric MSPCZ-100YKA represents the absolute summit of the professional industrial climate of ceiling for applications of maximum extreme power, continuous intensive demand and higher electrical efficiency. With extreme power 9.5kW cold and 11.2kW in heat, this sophisticated three-phase ceiling system constitutes the ultimate global reference in japanese technology Mitsubishi Electric with R-32 refrigerant, ideal for critical industrial installations, continuous production centers, commercial megasurfaces and applications of maximum demand of up to 95 square meters.
Highlighting for its excellent energy classification A+ and efficient SEER of 6.0, this model maintains optimized energy consumption 552 kWh annual cold. Its controlled operation 37dB at minimum speed and the optional WiFi with control MAC-587IF-E guarantee maximum intelligent comfort in spaces where maximum triphase power is required and superior industrial invisible air conditioning.

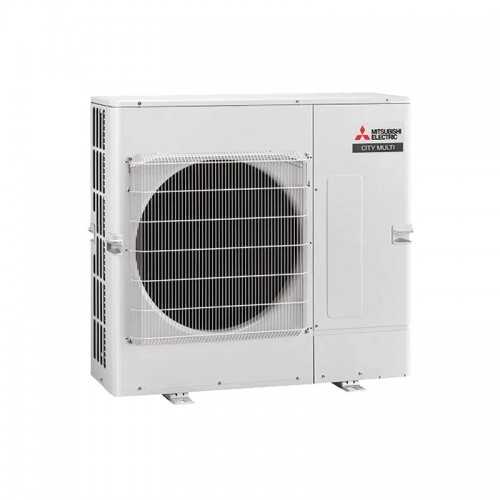

The MSPCZ-100YKA unit is discreetly integrated into the false roof with extended industrial format 230 x 1.600 x 680 mm while the outdoor Unit PUZ-M100YKA2 ensures robust operation, optimized triphase power and maximum extreme performance. Its advanced features include standard Inverter Triphasic technology, , wide range of operation (-15°C to +46°C), remote control PAR-41MAA professional and advanced filtering options V-blocking maximum for perfect interior environment with recognized japanese reliability and 3 year warranty.
Main features
▪ Industrial Power 9.5kW
9.5kW cold / 11.2kW heat for industrial applications up to 95m2
▪ Tripha
400V triphasic optimizes electrical consumption - Only 12.2A
🇵 Japanese quality
Standard Inverter Triphasic technology and reliability Mitsubishi Electric
🏆 Efficiency A+
SEER 6.0 and SCOP 4.1 excellent - Only 552 kWh annual
️ Wide range
Operation from -15°C to +46°C outside
🔇 Industrial Silence 37dB
Silent industrial operation for critical applications
Technical Specifications
Included Advanced Technologies
✓ Standard Inverter Triphasic Technology
Ultra precise triphasic control for maximum industrial energy efficiency
✓ Refrigerant Gas R-32 Industrial
State-of-the-art ecological gas with maximum industrial thermal efficiency
✓ Triphasic PAM Control
Triphasic modulation for ultra smooth operation and superior efficiency
✓ Auto Restart Triphasic
Automatic rendition with full memory and triphase protection
Main applications
🏭 Industrial plants
Industrial facilities up to 95m2
🏢 Corporate Complexes
Complex corporate offices
🏪 Great Warehouses
Megasurfaces and warehouses
💻 Data Centers
Critical data centres
Why choose the Mitsubishi Electric MSPCZ-100YKA?
The MSPCZ-100YKA combines legendary japanese quality Mitsubishi Electric with maximum three-phase power ideal for ceiling. With 9.5kW power, SEER 6.0, A+ rating and three-phase feeding that reduces intensity to just 12.2A, is the perfect solution for industrial installations required invisible air conditioning, maximum power and electrical efficiency with japanese industrial reliability.
9.5kW
Maximum Power400V
Tripha12.2A
Electrical efficiencyGet yours Mitsubishi Electric MSPCZ-100YKA!
Japanese quality with three-phase industrial ceiling air conditioning. Perfect for industrial plants, corporate complexes and critical spaces up to 95m2 that require maximum power with superior electrical efficiency.
✓ Maximum 9.5kW
✓ 400V triphasic
✓ Japanese quality
MSPCZ-100YKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PCA-M100KA
- Outdoor Unit
- PUZ-M100YKA
- I send
- Mando cable PAR-40MAA
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.940
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.280
- Energy class (heat)
- A+
- SCOP
- 4.1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 680 x 230
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- 78,0
- Net weight (kg)
- 115,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
