Ground-ceiling Haier Ac140s2sk2fa (pm)
Lightweight industrial solution of great power, adaptable to roof assembly or floor for large volumes. This 13,40 kW Inverter System Integrates Technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification A +, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency at + / a +
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

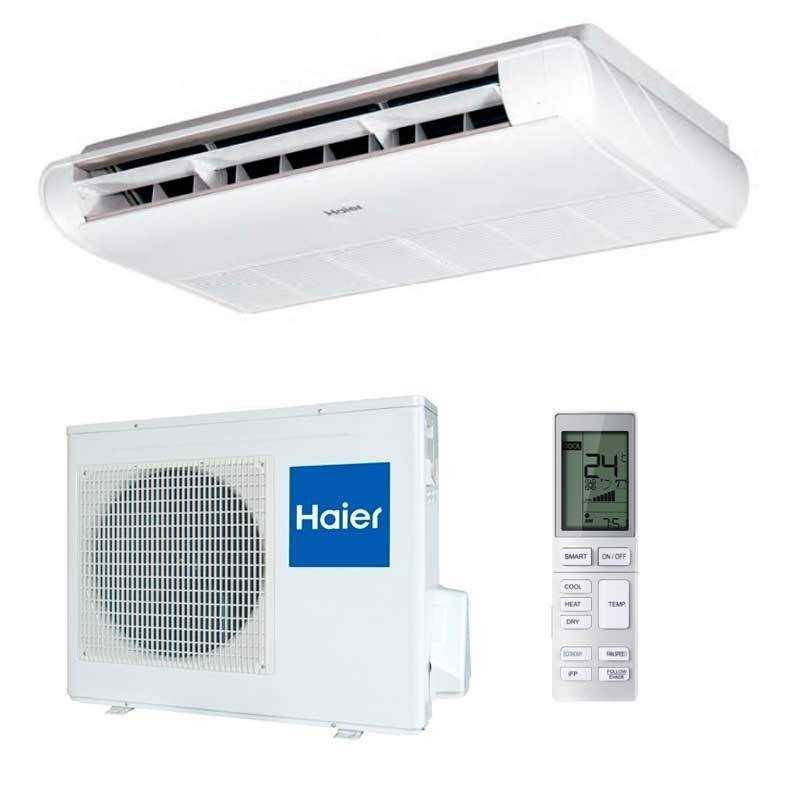

Floor-ceiling 140 HC Monof. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC140S2SK1FA (H)M
€2,496.02
Tax included
We do not have stock at this time. Get availability !!
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier Ac140s2sk2fa (pm)
Lightweight industrial solution of great power, adaptable to roof assembly or floor for large volumes. This 13,40 kW Inverter System Integrates Technology increase for a total thermal distribution and is compatible with UVC sterilization optional. Classification A +, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Efficiency at + / a +
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description

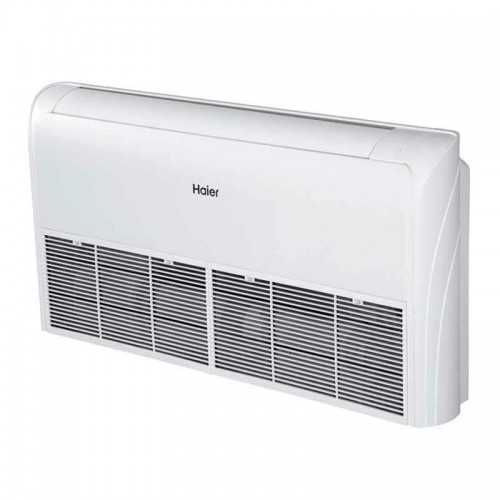

The Air conditioning floor-ceiling AC140S2SK1FA Haier Health-connect it represents the high-power solution for commercial and industrial spaces that require intensive, reliable and maximum performance air conditioning. With a rated power of 13.4-13.6 kW in refrigeration and 15.0 kW in heating, this Health-Connect range system incorporates double-generation rotary double compressor technology that guarantees stable performance, exceptional durability and efficiency Energy optimized for commercial and industrial applications of high demand and continuous use.

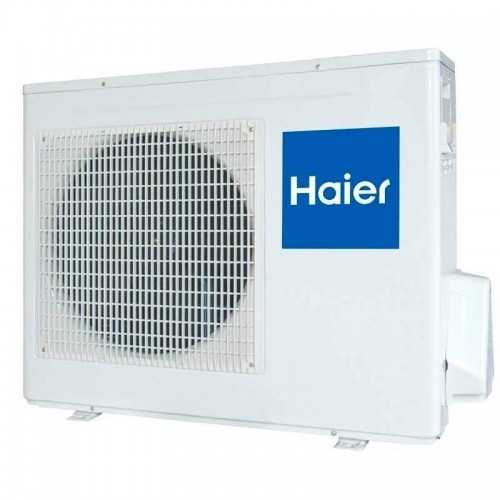

Composed of the indoor Unit AC140S2SK2FA (H) of great capacity with dimensions 1.650 x 230 x 680 mm and available with multiple exterior units (1U140S2SN1FA, 1U140S2SN1FB three-phase, 1U140S2SP2FA / FB High Efficiency) With Advanced Double Compressor Rotary Inverter Double Compressor Technology, this system stands out for its intelligent modulation capacity ranging from 3.5 to 14.0-15.0 kW in refrigeration and from 4.0 to 16.0 KW in heating. With an exceptional treated air volume of up to 2,150 m³ / h and sound levels controlled from 40 dB (A), it provides mass distribution and uniform by covering spaces of large surface with homogeneous comfort.
The unit incorporates Health-Connect technology with integrated Wi-Fi for control and professional monitoring from smartphone, UVC Sterilization System for Healthy Air in spaces with high occupancy, external air function for continuous ventilation and 5 speeds of Adjustable fan. With installation capacity on floor or ceiling up to 4.2 meters high, maximum pipe length of 70 meters, availability in single-phase and three-phase versions, and multiple energy efficiency options A + / A ++, it offers maximum flexibility for commercial and industrial facilities of Great major and complex architectural projects.
Main features
⚡
High power 13,4-13.6 kW
Industrial power of 13.4-13.6 kW with double rotary inverter compressor designed for commercial and industrial applications of maximum demand.
🔧
Multiple configurations
Available in single-phase / three-phase versions and multiple exterior units to adapt to any specific business project.
🌊
Industrial flow 2.150 m³ / h
Volume of industrial treated air up to 2,150 m³ / h that guarantees effective air conditioning in spaces of large commercial surface.
📏
Ultra-flexible installation 70m
Maximum length of 70m and 30m tubing for complex installations in multi-plant buildings and large surfaces.
📱
HEALTH-CONNECT INDUSTRIAL
Wi-Fi professional control for remote industrial management, continuous monitoring and advanced programming for intensive commercial use.
🌿
Efficiency A + / A ++
Multiple energy efficiency options from A + up to A ++ (SEER 5,92-6,18) to optimize consumption according to specific application.
Technical specifications - Main configurations
| Feature | Standard single-phase | Three-phase high efficiency |
|---|---|---|
| Pattern | AC140S2SK2FA (H) + 1U140S2SN1FA | AC140S2SK2FA (H) + 1U140S2SP2FB |
| Cold nominal power (min-nom-max) | 3.5 - 13.4 - 14.0 kW | 4.0 - 13.6 - 15.0 kW |
| Nominal power heat (min-nom-max) | 4.0 - 15.0 - 15.5 kW | 4.5 - 15.0 - 16.0 kW |
| Nominal consumption Cold (Lo-nom-Max) | 1.0 - 5,23 - 6.5 kW | 1.0 - 4.53 - 6.0 kW |
| Nominal heat consumption (Lo-nom-Max) | 1.0 - 5.08 - 6.5 kW | 1.0 - 4,17 - 6.0 kW |
| EER / COP | 2,56 / 2.95 | 3.00 / 3.60 |
| Seer / Scop | 5.92 / 3,97 | 6.16 / 4.06 |
| Energy label (cold / heat) | A + / A | A ++ / A + |
| Annual consumption refrigeration / heating | 792 / 2,995 kWh / year | 761 / 3,791 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1.650 x 230 x 680 mm | |
| Dimensions Outdoor Unit (Anxprxal) | 950 x 370 x 965 mm | 950 x 370 x 1.350 mm |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 2.150 / 1,980 / 1,800 / 1,600 m³ / h | |
| Internal sound pressure (high / medium / low / quiet) | 48/46/43/40 dB (A) | |
| Exterior sound pressure | 58 dB (A) | 53 dB (A) |
| Electrical supply | 1 / 220-240v / 50 / 60hz | 3 / 380-415v / 50 / 60hz |
| Refrigerant Gas / Load | R32 / 2.30 kg | R32 / 2.90 Kg |
| Maximum tubing length | 70 m | 70 m |
| Difference maximum height | 30 m | |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") | |
| Weight Indoor Unit Outdoor | 43.0 / 84.0 kg | 43.0 / 105.0 kg |
| Compressor type | Double rotary inverter | |
| Range Running cold / heat | -20 ° C A + 46 ° C / -20 ° C A + 24 ° C | |
Benefits of Ac140S2SK1FA air conditioner
✓
Solution for large industrial and commercial spaces
With 13.4-13.6 kW of power, ideal for spaces of 180-220 m², industrial buildings, large corporate offices, shopping centers, large and local restaurants that require high capacity air conditioning.
✓
Multiple configurations for specific projects
Available in multiple single-phase and three-phase configurations with different levels of energy efficiency (A + A ++) to adapt to any specific business project.
✓
Ultra-flexible installation up to 70 meters
Maximum length of 70m and outline tubing of 30m that allows complex facilities in high-rise buildings, shopping centers and demanding architectural projects.
✓
Double compressor for industrial use 24/7
Rotary double compressor technology designed specifically for continuous industrial operation 24/7, guaranteeing maximum durability and minimum maintenance.
Why choose the AC140S2SK1FA?
Main applications
🏭
Industrial spaces
Large industrial ships, production workshops, refrigerated stores and industrial plants that require powerful and reliable air conditioning 24/7.
🏢
Large corporate offices
Large corporate offices, business centers, spacious conference rooms and professional spaces with high occupancy density.
🏪
Shopping centers
Large commercial surfaces, shopping centers, large restaurants, hotels and public spaces with maximum air conditioning requirements.
Industrial Health-Connect Technology
📱
Advanced industrial management
Remote professional control with specific functions for industrial management: multizone control, multi-user access and 4/25 shift programming.
📊
Industrial monitoring
Exhaustive analysis of energy consumption, system performance and predictive diagnostics for continuous optimization in demanding industrial environments.
🛡️
Industrial predictive maintenance
Industrial alert system that automatically notifies maintenance needs, performance optimizations and prevention of unscheduled stops.
The maximum power industrial solution!
AC140SSK1FA AC140SK1FA combines 13,4-13,6 kW industrial power, double compressor inverter for continuous use 24/7, multiple electrical settings, ultra-flexible installation up to 70m, industrial health-connect technology and healthy air UVC to provide the most robust and versatile air conditioning for maximum demand industrial and commercial projects. The final choice for critical industrial applications.
Ask your budget today for industrial projects!
KIT AC140S2SK1FA (H)M
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U140S2SN2FA
- I send

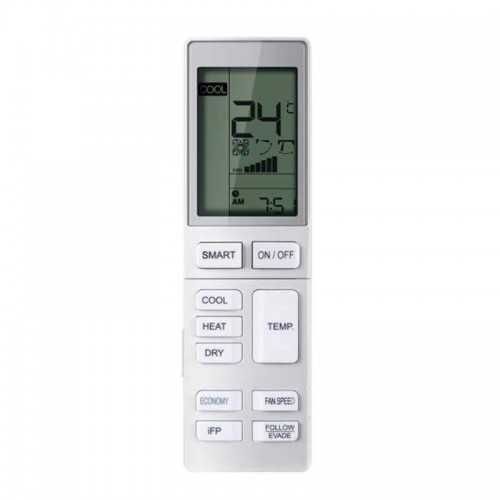

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.230
- SEER
- 5,9
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- Nominal heat consumption (W)
- 5.080
- SCOP
- 3,97
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1650 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 965
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
