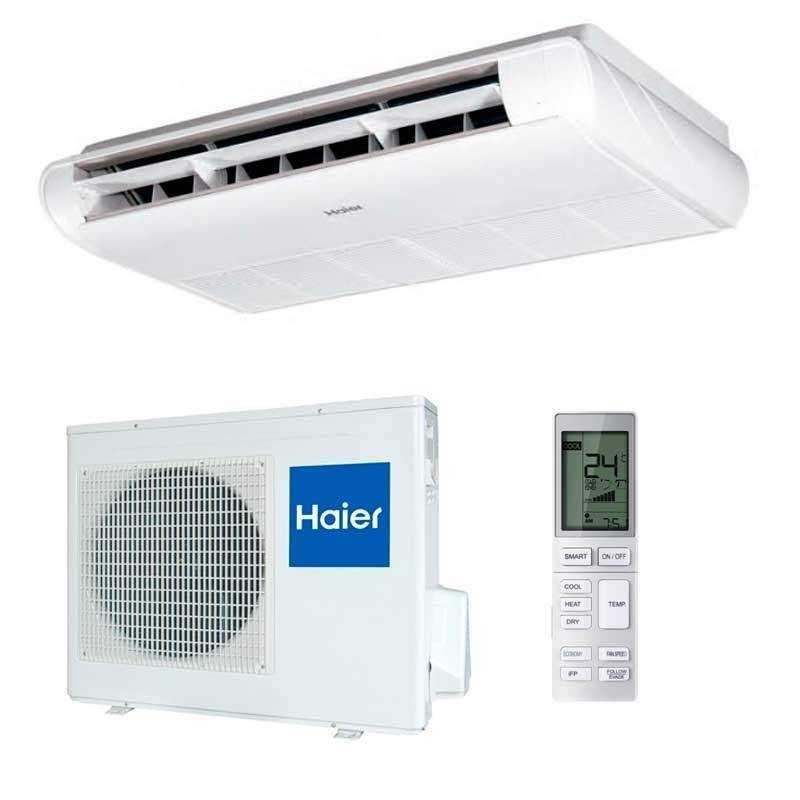

Ground-ceiling Haier AC160S2SK2FA (H) Three-phase
Three-phase solution of maximum capacity For large commercial and industrial surfaces with flexible assembly on soil or ceiling. This robust 16.0 kW inverter system integrates technology increase for optimal thermal distribution and is compatible with UVC sterilization optional. Classification A +, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Feeding: Three-phase
• Integrable Wi-Fi
• Increased flow
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Floor-ceiling 160 HC Trif. Haier Health-Connect R32 Air conditioning
Referencia: KIT AC160S2SK1FA (H)T
€3,109.97
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ground-ceiling Haier AC160S2SK2FA (H) Three-phase
Three-phase solution of maximum capacity For large commercial and industrial surfaces with flexible assembly on soil or ceiling. This robust 16.0 kW inverter system integrates technology increase for optimal thermal distribution and is compatible with UVC sterilization optional. Classification A +, Optimized operation, 5-speed fan and connectivity Wi-Fi optional.
• Installation: floor or ceiling
• Feeding: Three-phase
• Integrable Wi-Fi
• Increased flow
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling AC160S2SK1FA three-phase Haier Health-connect it represents the cusp of industrial and commercial air conditioning, designed for the most demanding projects that require maximum power, absolute reliability and exceptional performance. With a nominal power of 16.0 kW in refrigeration and 17.0 kW in heating, this health-connect range system incorporates the most advanced rotary inverter double compressor technology that guarantees stable functioning, exceptional durability and energy efficiency Optimized for critical industrial applications, large shopping centers and maximum-scale architectural projects.

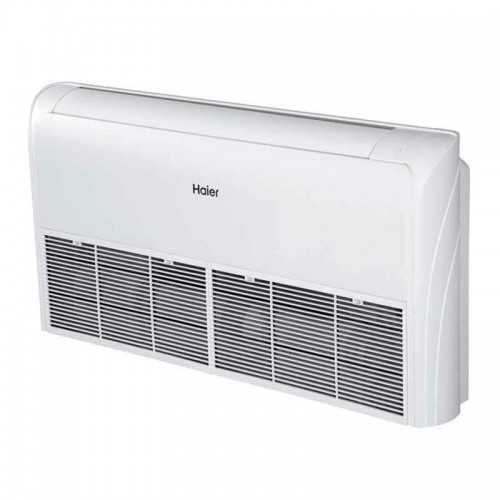

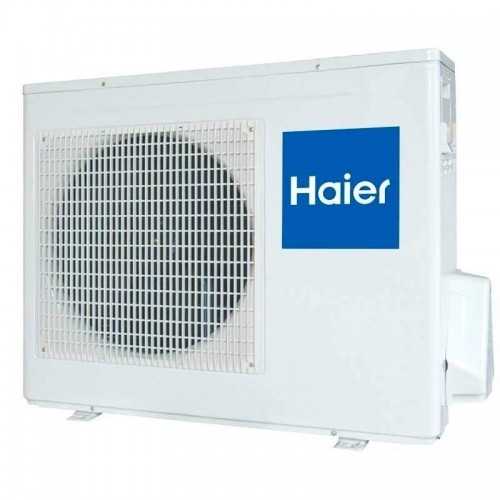

Composed of the indoor Unit AC160S2SK2FA (H) of maximum capacity with dimensions 1.650 x 230 x 680 mm and outdoor Unit three-phase 1U160S2SP1FB with last generation rotary double compressor technology, this system stands out for its intelligent modulation capacity ranging from 4.5 to 16.5 kW in refrigeration and from 5.0 to 18.0 kW in Heating With an exceptional industrial treated air volume of up to 2,250 m³ / h and sound levels controlled from 40 dB (A), it provides massive and uniform air distribution by covering spaces of large industrial surface with homogeneous comfort and precise control.
The unit incorporates Health-Connect technology with integrated Wi-Fi technology for control and professional industrial monitoring from smartphone, UVC Sterilization System of High Saludable Air Capacity in spaces with high industrial occupation, external air function for continuous ventilation and 5 Adjustable fan speeds for precise flow control. With installation capacity on floor or ceiling up to 4.2 meters high, maximum pipe length of 70 meters, three-phase feeding 380-415V, expanded gas connection 19.05mm (3/4 "), and energy efficiency A + / A +, offers the more solution Robust and flexible for critical industrial installations, large shopping centers and architectural projects of maximum complexity.
Main features
⚡
Maximum industrial power 16 kW
Maximum industrial power of 16.0 kW with double rotary inverter compressor designed for the most demanding and critical applications of the market.
🔌
Industrial three-phase feeding
Exclusively three-phase 380-415V designed for large industrial and commercial installations with intensive energy demand.
🌊
Maximum flow 2.250 m³ / h
Volume of Air Treated Industrial Treated Up to 2,250 m³ / h that guarantees effective air conditioning in the largest spaces in the market.
📏
Ultra-complex installation 70m
Maximum pipe length of 70m with expanded gas connection 19.05mm (3/4 ") for maximum complexity industrial installations.
📱
Advanced Industrial Health-Connect
Industrial Wi-Fi Control for Remote Critical Management, 24/7 Monitoring and Advanced Programming for Maximum Requirement Projects.
🌿
Efficiency A + guaranteed
Seer 6,10 and SCOP 4.06 with classification A + / A + that guarantees maximum energy performance in critical industrial applications.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | AC160S2SK2FA (H) + 1U160S2SP1FB |
| Cold nominal power (min-nom-max) | 4.5 - 16.0 - 16.5 kW |
| Nominal power heat (min-nom-max) | 5.0 - 17.0 - 18.0 kW |
| Nominal consumption Cold (Lo-nom-Max) | 1.0 - 5.39 - 6.5 kW |
| Nominal heat consumption (Lo-nom-Max) | 1.0 - 4,97 - 6,5 kW |
| EER / COP | 2.97 / 3,42 |
| Seer / Scop | 6.10 / 4.06 |
| Energy label (cold / heat) | A + / A + |
| Annual consumption refrigeration / heating | 924 / 3,791 kWh / year |
| Dimensions Indoor Unit (Anxprxal) | 1.650 x 230 x 680 mm |
| Dimensions Outdoor Unit (Anxprxal) | 950 x 370 x 1.350 mm |
| TREATED AIR VOLUME (High / Medium / Low / Quiet) | 2.250 / 2,000 / 1,850 / 1,650 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 48/46/43/40 dB (A) |
| Exterior sound pressure | 58 dB (A) |
| Electrical supply | 3 / 380-415V / 50 / 60Hz (only three-phase) |
| Refrigerant Gas / Load | R32 / 3.5 kg |
| Maximum tubing length | 70 m |
| Difference maximum height | 30 m |
| Liquid connections / gas | 9.52 mm (3/8 ") / 19.05 mm (3/4") |
| Weight Indoor Unit Outdoor | 43.0 / 101.0 kg |
| Compressor type | Double rotary inverter |
| Intensity maximum absorption | 10.0 A (Operation) / 2.0 A (Start) |
| Range Running cold / heat | -20 ° C A + 46 ° C / -20 ° C A + 24 ° C |
Benefits of Ac160S2SK1FA AC160SSK1FA
✓
Solution for the largest spaces in the market
With 16.0 kW of maximum power, ideal for spaces of 220-280 m², large industrial buildings, spacious shopping centers, auditoriums, conference palaces and maximum projects.
✓
Three-phase feeding for industrial installations
Exclusively three-phase 380-415V designed for industrial infrastructures that require maximum power with optimized energy efficiency and continuous stable operation.
✓
Maximum flow capacity 2.250 m³ / h
Volume of maximum industrial treated air that guarantees effective air conditioning in the largest spaces, with uniform distribution and precise control of the environment.
✓
Double compressor for critical applications
Rotary double compressor technology designed for critical applications that require continuous operation 24/7 with maximum reliability and minimum maintenance.
Why choose the three-phase AC160SK1FA?
Main applications
🏭
Industrial facilities critical
Large industrial naves, critical production plants, data centers, white rooms and facilities that require maximum power and reliability air conditioning.
🏢
Large corporate spaces
Auditoriums, conference palaces, large conference rooms, convention centers and maximum corporate spaces.
🏪
Large shopping centers
Hypermarkets, large commercial surfaces, spacious shopping centers, luxury hotels and public spaces of maximum occupation and demand.
Industrial critical health-connect technology
📱
Industrial critical management
Industrial control critical with specific functions for applications that do not admit faults: control redundancy, hierarchical multi-user access and configuration backup.
📊
Monitoring 24/7 review
Incallous exhaustive analysis, immediate critical alerts and advanced predictive diagnostics to ensure continuous operation without interruptions.
🛡️
Critical predictive maintenance
Industrial predictive maintenance system with critical alerts, preventive maintenance programming and analysis of trends to avoid unscheduled stops.
The maximum power solution for critical projects!
AC160SK1FA three-phase AC160SSK1FA combines maximum available power of 16.0 kW, double compressor inverter for critical applications, industrial three-phase feed, ultra-complex installation up to 70m, extended gas connection 19.05mm, technology Health-Connect critical and healthy air UVC to provide the most robust, powerful and reliable air conditioning of the market. The final choice for the most demanding, critical and maximum projects that require the best available technology.
Request your budget for critical projects of maximum magnitude!
KIT AC160S2SK1FA (H)T
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- 1U160S2SP1FB
- I send

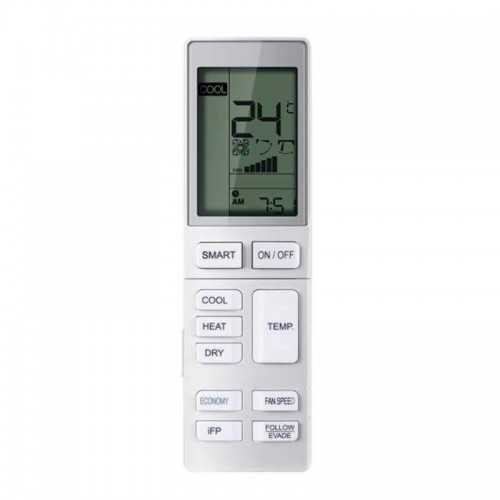

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 16.000
- Refrigerator capacity (kcal / h)
- 13.760
- Nominal consumption Cold (W)
- 5.390
- SEER
- 6,06
- Heat capacity (W)
- 17.000
- Heat capacity (Kcal / h)
- 14.620
- Nominal heat consumption (W)
- 4.970
- SCOP
- 4,06
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1650 x 230 x 680
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 1350
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 3/4"
- Possibility Integration
- WiFi Included
