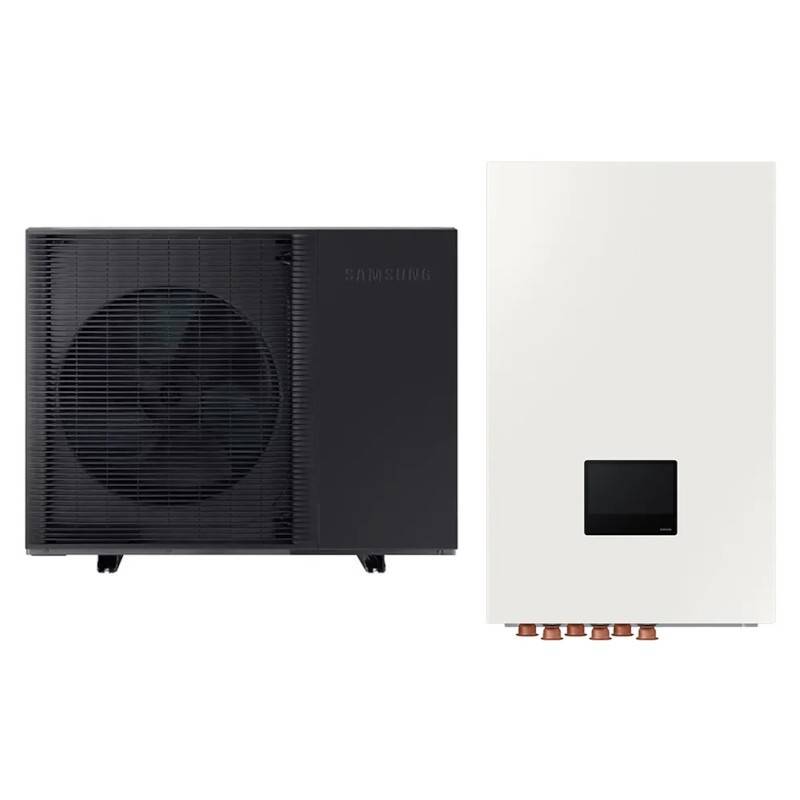

Samsung EHS Mono R290 AE120CXYDEK / EU + AE160DNYMPK / EU Mural Bible
12 kW Heating | COP 4.80 | SCOP A +++ | Without deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Mural Bible of 12 KW offers COP 4,80 and Energy rating A +++ with Scop 4.90. System reversible with 12 kW of refrigeration capacity (EER 4.00). Bible format without integrated deposit For personalized installation. Operate Ecological refrigerant R290 (1.25 kg / 3,75t co2eq). Reaches Temperatures up to 75 ° C For the highest drive temperature. High power scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 2.500w. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) and compact mural interior 460 Ă 350 Ă 195 mm (41-45 kg). Incorporates Support resistance 6 kW, 10L expansion glass, circulating pump, safety valve. WIFI MIM-E03FN control, silent mode 3 steps, Set Smart Grid, Control 2 zones. Sound pressure 28/30 dB (A). Ideal for housing with deposit DHW Existing that seek maximum efficiency with ecological refrigerant in compact wall format.
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Samsung EHS Mono R290 AE120CXYDEK / EU + AE160DNYMPK / EU Heat Pump Wall-mounted
Referencia: AE120CXYDEK_AE160DNYMPK
âŹ7,122.35
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Samsung EHS Mono R290 AE120CXYDEK / EU + AE160DNYMPK / EU Mural Bible
12 kW Heating | COP 4.80 | SCOP A +++ | Without deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Mural Bible of 12 KW offers COP 4,80 and Energy rating A +++ with Scop 4.90. System reversible with 12 kW of refrigeration capacity (EER 4.00). Bible format without integrated deposit For personalized installation. Operate Ecological refrigerant R290 (1.25 kg / 3,75t co2eq). Reaches Temperatures up to 75 ° C For the highest drive temperature. High power scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 2.500w. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) and compact mural interior 460 Ă 350 Ă 195 mm (41-45 kg). Incorporates Support resistance 6 kW, 10L expansion glass, circulating pump, safety valve. WIFI MIM-E03FN control, silent mode 3 steps, Set Smart Grid, Control 2 zones. Sound pressure 28/30 dB (A). Ideal for housing with deposit DHW Existing that seek maximum efficiency with ecological refrigerant in compact wall format.
Security policy
Delivery policy
Refund policy
The Samsung EHS Mono R290 12KW Mural Bible (AE120CXYDEK / EU + AE160DNYMPK / EU) represents the high-power ecological solution for heating, refrigeration and sanitary hot water in housing up to 180mÂČ. This bibloc system bombless integrates hydraulic connection with the Hydrokit mural AE160DNYMPK/EU, designed to connect to a deposit DHW external optional according to the needs of the user.
Highlights for its exceptional energy rating A +++ / A ++ with a SCOP of 4.90 and a COP of 4.80, guaranteeing superior energy savings. Use the innovative refrigerant R290 Natural (propane) with a GWP of just 3, converting this equipment into the most respectful option with the market environment. The Mural Hydrokit incorporates 10L expansion cup, 2 + 2kW electric resistance, circulating pumps, magnetic filter, safety valves and WiFi control screen.

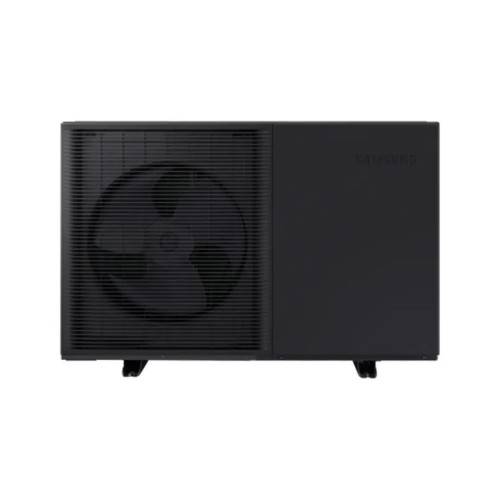

The outdoor Unit Ae120cxydek / EU measures 1270 x 1018 x 530 mm and weighs 140 kg, while the Hydrokit mural Ae160dnympk / EU measures 530 x 840 x 350 mm with a weight of 43-54 kg. Operates at extreme temperatures from -25 ° C up to + 35 ° C in heating and of 10 ° C A + 46 ° C in refrigeration, producing hot water up 75 ° C.
Main features
⥠High Power Bible 12KW
12KW with Hydrokit Mural Compact - Deposit DHW optional external
đ Efficiency A +++ / A ++
SCOP 4.90 and COP 4.80 - Maximum certified energy savings
đż Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
đ§ Hydrokit compact mural
Expansion Glass, Valves, Pumps, Filter and Resistance 2 + 2KW Included
đĄïž DHW up to 75 ° C
High temperature sanitary hot water with external tank
âïž Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
â High Power Bible 12KW
Ideal for large homes up to 180mÂČ
â Versatile installation
Hydraulic components pre-installed in Hydrokit mural
â Maximum efficiency at +++
SCOP 4.90 for minimum consumption and maximum savings
â Ecological R290
Refrigerant Gas natural GWP 3 - Maximum Environmental Commitment
Main applications
đ Large homes
Until 180mÂČ - custom deposit
đą Villas
Powerful flexible installation
đĄ Reforms
Take advantage of existing deposit
đ± Eco Projects
Sustainable Constructions
Why choose the Samsung EHS Mono R290 12kw Bible?
This high-powered Bible system represents the final solution for large housing that seek maximum efficiency and environmental respect. The compact wall Hydrokit integrates all the necessary hydraulic components, allowing you to choose the deposit of DHW that best suits your needs. Its natural R290 technology makes it the most ecological option in the market.
AE120CXYDEK_AE160DNYMPK
Data sheet
- Brand
- Samsung
- Indoor Unit
- Ae160dnympk / EU
- Outdoor Unit
- Ae120cxydek / EU
- Accumulator DHW
- Not included (optional)
- Refrigerant Gas
- R290
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 12.000
- Nominal consumption Cold (W)
- 3.000
- Heat capacity (W)
- 12.000
- Nominal heat consumption (W)
- 2.500
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 4,80
- EER
- 4,00
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 840
- Width UD Interior (mm)
- 530
- Ud interior background (mm)
- 350
- Weight (kg)
- 54
- High Ud Exterior (mm)
- 1.018
- Width UD Exterior (mm)
- 1.270
- Outdoor background (mm)
- 530
- Weight Outside (kg)
- 140
New
No customer reviews for the moment.
