Panasonic Aquarea Bibloc R32 12 kW three-phase K series
R32 | 12 kW | A +++ | Three-phase 400 V | Without DHW
12 KW three-phase for large surfaces or professional applications. R32, high efficiency and connected control of serial.

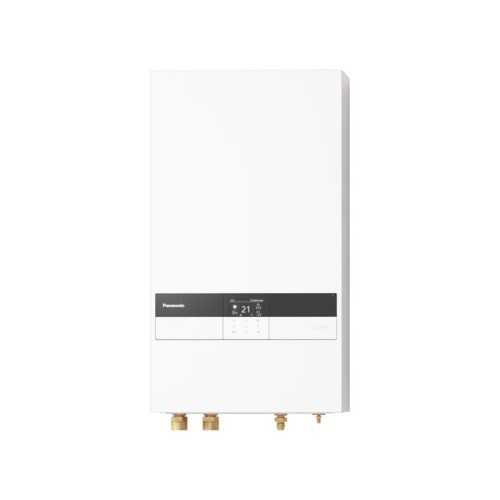

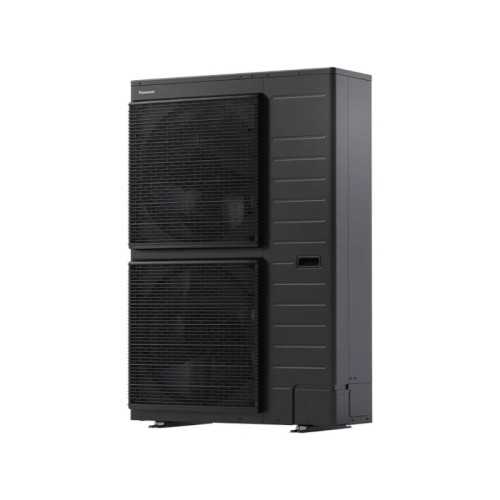

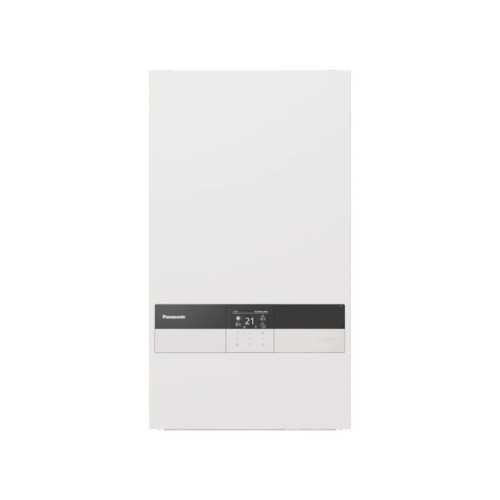

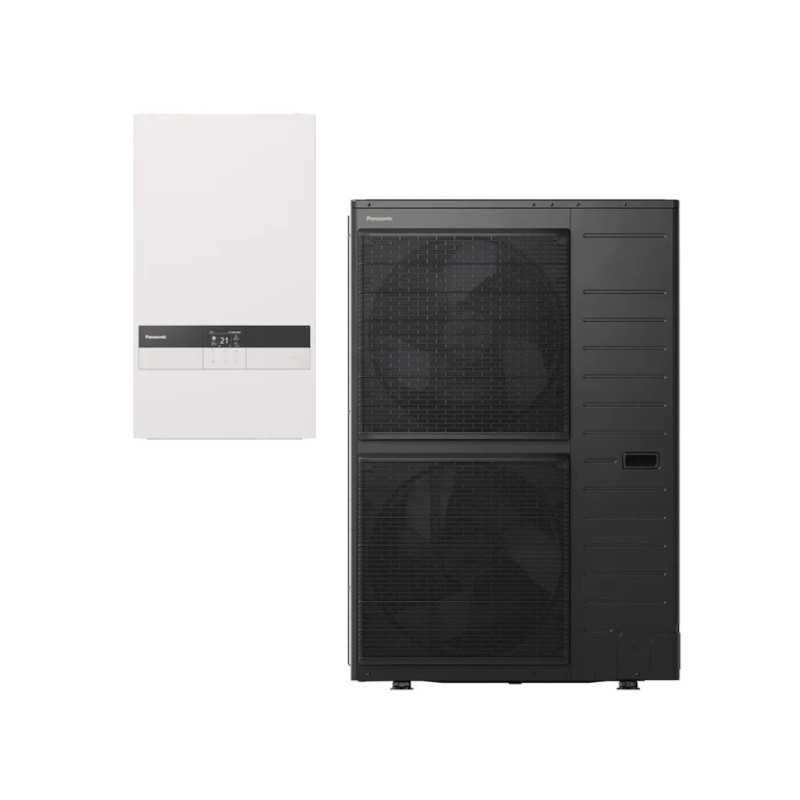

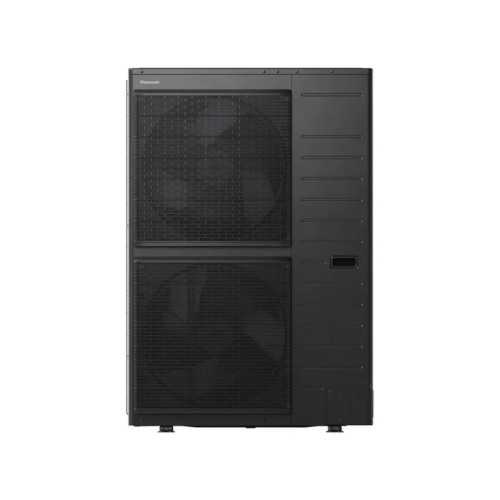

Outdoor Unit: WH-UDZ12KE8 | Indoor Unit: Wh-sdc12k9e8
DHW: Not included (optional)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WC12K9E8 Aquarea Bible Generation K R32 Three-phase
Referencia: KIT-WC12K9E8
€6,596.94
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
¡¡MÓDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic Aquarea Bibloc R32 12 kW three-phase K series
R32 | 12 kW | A +++ | Three-phase 400 V | Without DHW
12 KW three-phase for large surfaces or professional applications. R32, high efficiency and connected control of serial.
Outdoor Unit: WH-UDZ12KE8 | Indoor Unit: Wh-sdc12k9e8
DHW: Not included (optional)
Security policy
Delivery policy
Refund policy
Panasonic Aquarea R32 12 kW three-phase (kit-wc12k9e8)
Bible System Generation K R32 - No accumulator DHW integrated
12 kW power Ecological R32 A +++ / A ++ SCOP 4.84 Three-phase 400 V
The Panasonic Aquarea Kit-WC12K9E8 It is a solution Bible Generation K combining a compact design with high performance, ideal for Large homes or commercial applications. Your heat pump system uses R32 coolant and highlights for its energy efficiency A +++ (A7 / W35), guaranteeing economic and sustainable functioning.
Composed of the outdoor Unit Wh-udz12ke8 and the indoor Unit Wh-sdc12k9e8It offers efficient heating and cooling, maintaining a nominal power even at low outer temperatures. Your Range of operation from -25 ° C It allows operability in cold climates without performance losses.
In addition, the system includes compatibility with Panasonic Smart cloud for remote control and monitoring of energy consumption, as well as connection BMS and Modbus For professional projects.
Main features
⚙️ High performance Bible system
Optimizes efficiency with complete hydraulic separation between units.
🌿 Refrigerant Gas R32
GWP 675 - Reduction of environmental impact and higher thermal performance.
🔥 High output temperature
Up to 60 ° C, suitable for conventional radiators or underfloor heating.
💧 Flexible system DHW
Compatible with external accumulators of 200-500 L.
📶 Intelligent Control
Remote management using app Panasonic Smart Cloud and BMS connection.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-udz12ke8 |
| Model Indoor Unit | Wh-sdc12k9e8 |
| Type of system | Bibloc - Sin DHW integrated |
| Refrigerant Gas | R32 (2.10 kg) - GWP 675 |
| Power heating | 12.00 kW (A7 / W35) / 11.50 kW (A7 / W55) |
| Refrigeration Power | 10.00 kW (A35 / W18) |
| Nominal electrical consumption | 2.70 kW (A7 / W35) |
| COP / SCOP | 4.44 / 4.84 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -25 ° C to +43 ° C |
| Sound level outdoor Unit | 53 dB (a) Power / 38 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1110 × 1100 × 420 mm (93 kg) |
| Dimensions Indoor Unit | 890 × 340 × 500 mm (47 kg) |
| Power supply | 400 V / 3 pH / 50 Hz |
| Maximum current (MCA) | 12.5 |
| Compatibility DHW | External deposit Panasonic 200-500 L |
| Control and Management | Integrated Wi-Fi / Smart Cloud / Modbus / BMS |
| Compressor guarantee | 5 years (Panasonic official) |
Efficiency and reliability with Panasonic Aquarea 12 kW R32 three-phase!
High capacity air stop system, low consumption and operation guaranteed even at -25 ° C. Ideal for demanding facilities.
✓ 12 kW of power
✓ Ecological R32
✓ Three-phase 400 V
✓ Smart Cloud Control
KIT-WC12K9E8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sdc12k9e8
- Outdoor Unit
- Wh-udz12ke8
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 10.700
- Nominal consumption Cold (W)
- 2.730
- Heat capacity (W)
- 12.000
- Nominal heat consumption (W)
- 2.531
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 4,78
- Scop (warm weather)
- 4,58
- EER
- 3,91
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ºC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 88
