Panasonic Aquarea T-Cap R32 12 KW Kit-WXC12K9E8 Three-phase
R32 | 12 kW | A +++ | Three-phase 400 V | Without DHW
Performance T-CAD with thermal stability at -20 ° C. Robust design for high demand spaces and comprehensive remote management.
Outdoor Unit: WH-UXZ12KE8 | Indoor Unit: Wh-sxc12k9e8
DHW: Not included (optional)
WiFi module included
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WXC12K9E8 Aquarea Bible T-Cap R32 Three-phase Generation K
Referencia: KIT-WXC12K9E8
âŹ7,276.60
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Panasonic Aquarea T-Cap R32 12 KW Kit-WXC12K9E8 Three-phase
R32 | 12 kW | A +++ | Three-phase 400 V | Without DHW
Performance T-CAD with thermal stability at -20 ° C. Robust design for high demand spaces and comprehensive remote management.

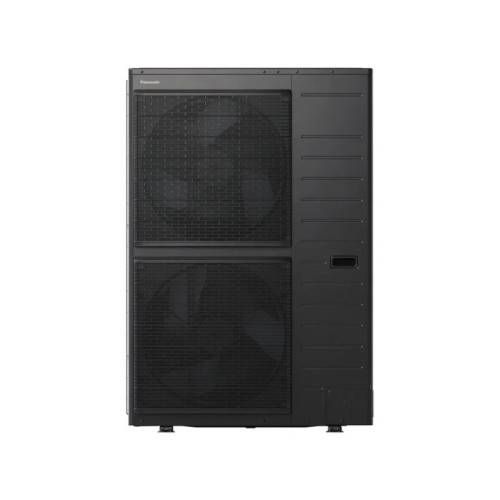

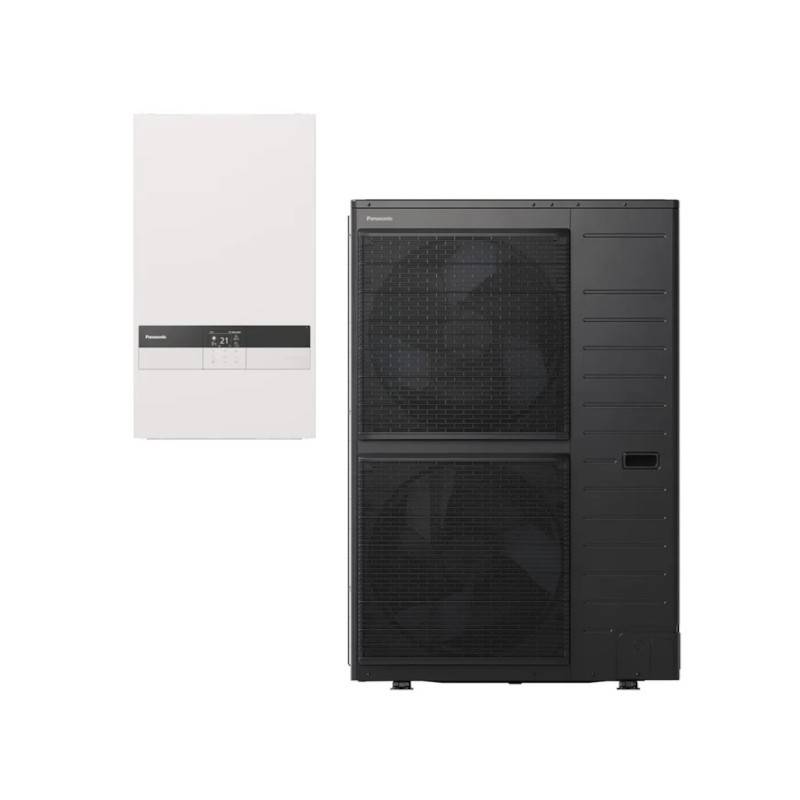

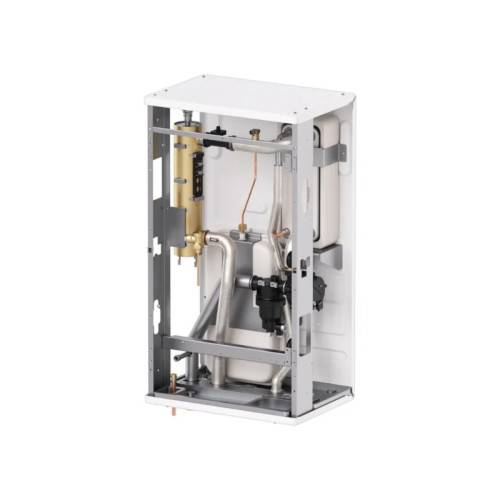

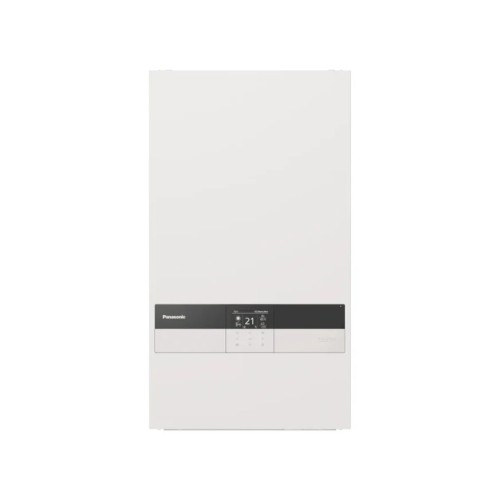

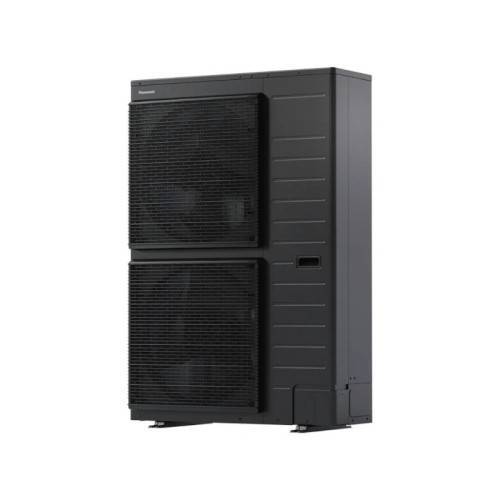

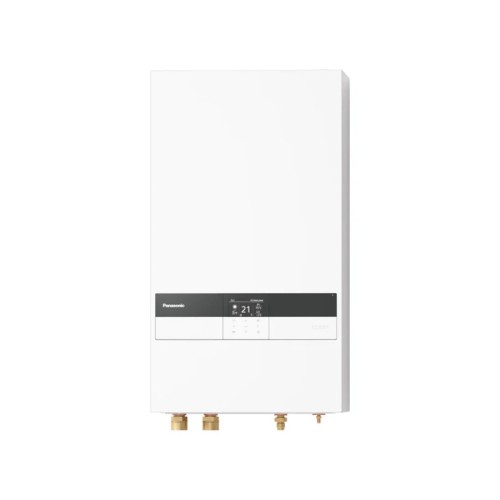

Outdoor Unit: WH-UXZ12KE8 | Indoor Unit: Wh-sxc12k9e8
DHW: Not included (optional)
WiFi module included
Security policy
Delivery policy
Refund policy
Panasonic Aquarea T-Cap R32 12 kW three-phase (kit-wxc12k9e8)
Bible System Generation K T-Cap - No accumulator DHW integrated
12 kW power Ecological R32 A +++ / A ++ SCOP 4.70 Three-phase 400 V
The Panasonic Aquarea Kit-WXC12K9E8 It belongs to the range T-cap generation k r32, designed to offer heating and refrigeration with constant power Even with outer temperatures of -20 ° C. Its technology T-Cap (Total Capacity) It maintains the nominal power without the need for auxiliary electrical resistances, guaranteeing stable comfort and maximum performance in any climate.
This model combines the outdoor Unit Wh-uxz12ke8 and the indoor Unit Wh-sxc12k9e8 in a system three-phase High efficiency. Used R32 coolant (GWP 675), reducing emissions and improving thermal transfer. Its silent operation and its compatibility with remote control Smart Cloud Panasonic They make it an ideal solution for large housing, buildings or commercial facilities.
It admits connection to photovoltaic systems and control through Modbus, allowing complete integration into advanced energy efficiency projects.
Main features
âïž T-CAP technology
Constant performance without resistance until -20 ° C.
đż Refrigerant Gas R32
Under GWP and greater energy efficiency.
đ„ High output temperature
Up to 60 ° C of driver water for conventional radiators.
đ§ Flexibility DHW
Compatible with external deposits of 200-300 L.
đ¶ Smart Cloud Control
Wi-fi integrated for remote management and energy monitoring.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-uxz12ke8 |
| Model Indoor Unit | Wh-sxc12k9e8 |
| Type of system | Bible T-Cap without DHW integrated |
| Refrigerant Gas | R32 (2.15 kg) - GWP 675 |
| Power heating | 12.00 kW (A7 / W35) / 11.50 kW (A7 / W55) |
| Refrigeration Power | 10.50 kW (A35 / W18) |
| Nominal electrical consumption | 2.60 kW (A7 / W35) |
| COP / SCOP | 4.50 / 4.70 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -28 ° C to +43 ° C |
| Sound level outdoor Unit | 52 dB (a) Power / 38 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1410 Ă 1283 Ă 320 mm (111 kg) |
| Dimensions Indoor Unit | 890 Ă 340 Ă 500 mm (47 kg) |
| Power supply | 400 V / 3 pH / 50 Hz |
| Maximum current (MCA) | 13.4 |
| Compatibility DHW | External deposit Panasonic 200 or 300 L (optional) |
| Control and Management | Wi-Fi integrated / smart cloud / modbus (optional) |
| Compressor guarantee | 5 years (Panasonic official) |
Constant power and efficiency T-CAP of Panasonic 12 kW!
The ideal balance for spacious housing and cold climates. Total yield without resistance, R32 refrigerant and smart cloud intelligent control.
â T-Cap Total Capacity
â Ecological R32
â Three-phase 400 V
â Smart Cloud integrated
KIT-WXC12K9E8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sxc12k9e8
- Outdoor Unit
- Wh-uxz12ke8
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- TrifĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 10.700
- Nominal consumption Cold (W)
- 2.730
- Heat capacity (W)
- 12.100
- Nominal heat consumption (W)
- 2.500
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 4,84
- Scop (warm weather)
- 4,96
- EER
- 3,92
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 88
