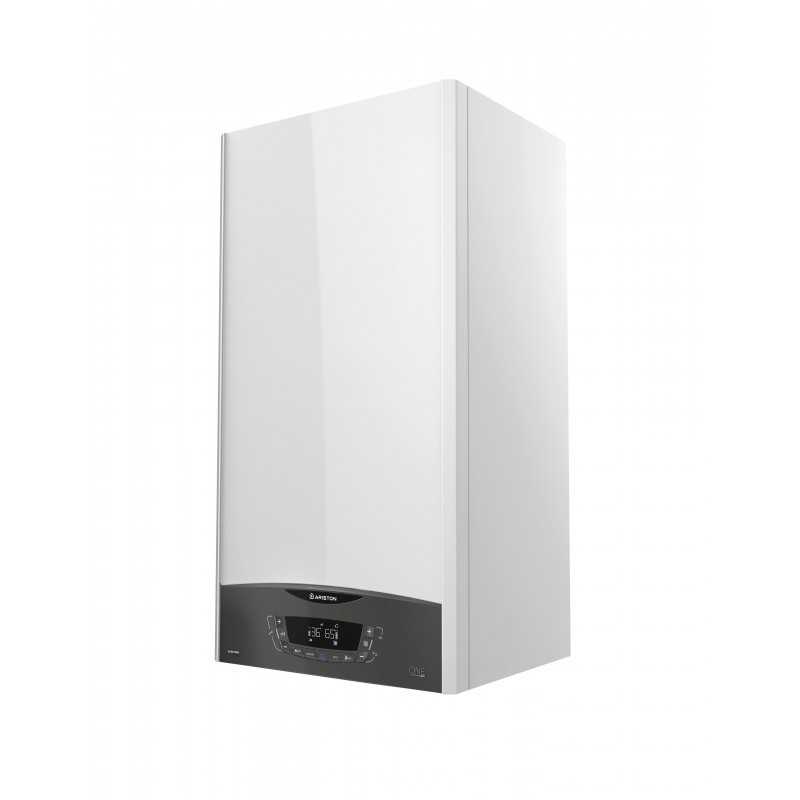

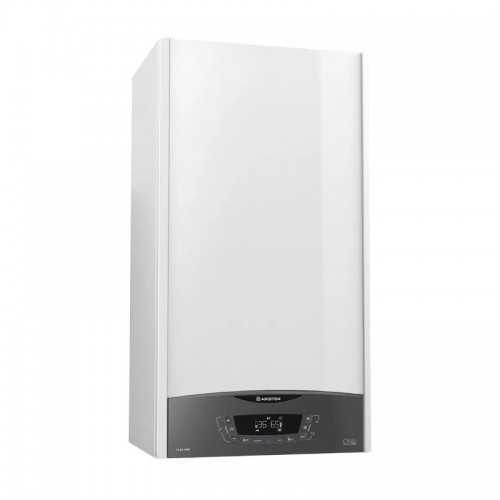

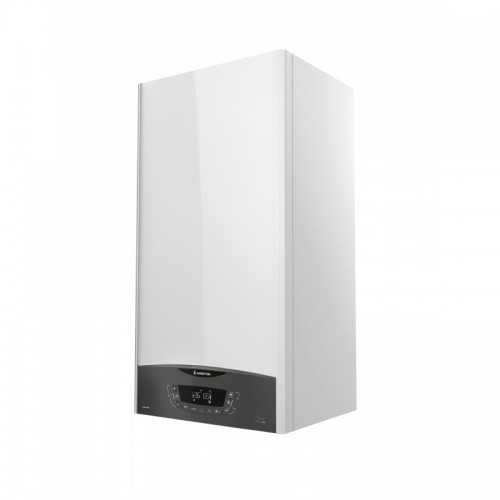

Mixed wall boiler Ariston CLAS One Wifi 24FF EU

The Ariston CLAS One Wifi 24FF EU is a mixed wall condensation boiler 24kw maximum power combining energy efficiency, advanced technology and intelligent connectivity. This model (Code 3302123) incorporates the innovator xtratech ™ Stainless Steel Primary Exchanger patented and exclusive Ariston, guaranteeing high performance and exceptional durability.

With nominal power of 22.0 kW in heating and 26.0 kW in sanitary, this mixed boiler offers intelligent modulation from 3.3 kW minimum, providing a modulation range 1: 8 that optimizes energy consumption. The maximum useful power reaches 21.4 kW for heating (60/80 ° C) and 24.9 kW for sanitary hot water, ensuring complete comfort in medium homes.

The system integrates wiFi connectivity and Ariston Serial net, allowing full remote control from smartphone and access to smart features. The bUSBRIDGENET® protocol guarantees advanced communication with modulating thermostats, while the lCD Display facilitates the configuration and local monitoring.

The energy rating A + in heating is achieved by modulating ambient probe and external probe, reaching exceptional yields of 97.5% at nominal power (60/80 ° C) and 107.3% at low temperature (30 / 50th C.). 30% charge keeps 109.8% performance, demonstrating constant efficiency in any working condition.

The auto and Comfort functions automatically optimize the drive temperature and provide micro-micumulation of DHW for immediate availability. The optimized internal muffler and the integrated Safety BY-PASS they guarantee silent operation and protection of the hydraulic system.

With camera and coaxial evacuation, allows flexible installation with smoke evacuation lengths of up to 8 meters in Ø60 / 100 and 33 meters in Ø80 / 125. The lower manometer with electronic reading by means of pressure transducer it facilitates maintenance and diagnosis.

Compatible with natural gas and hydrogen up to 20% no need for modifications, prepared for the energy transition. The propane Gas Transformation Kit Included Series expand the installation options according to local availability of fuel.

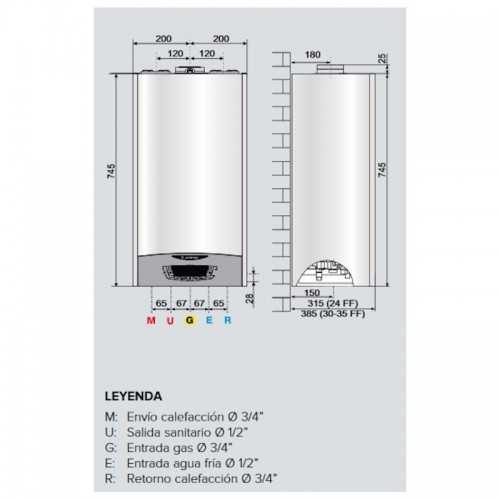

The CLAS One WiFi 24FF EU represents the ideal solution for heating and sanitary hot water in homes, combining cutting-edge technology, superior energy efficiency and intelligent connectivity in a compact format of 74.5 x 40 x 31.5 cm and only 29.7 kg.

Main features

Technical specifications

Features and temperatures

Intelligent functions and connectivity

Options Evacuation of fumes

Energy classification

CASE ONE WIFI 24FF condensation boiler!

Superior efficiency with Xtratech ™ technology, integrated WiFi connectivity. Maximum performance with minimum consumption!
