Mixed wall boiler Ariston CLAS ONE WIFI 30FF EU

The Ariston CLAS ONE WIFI 30FF EU is a mixed wall condensation boiler 30KW maximum power designed for large housing and light commercial applications. This advanced model (Code 3302124) integrate the revolutionary xtratech ™ Stainless Steel Primary Exchanger patented and exclusive Ariston, guaranteeing exceptional energy efficiency and long-term durability.

With nominal power of 28.0 kW for heating and 30.0 kW for sanitary, this high-end mixed boiler offers intelligent modulation from 3.8 kW minimum, providing a modulation range 1: 8 Optimized that maximizes energy efficiency. The maximum useful power reaches 27.4 kW for heating (60/80 ° C) and 28.7 kW for hot water sanitary water, Ensuring superior comfort in demanding facilities.

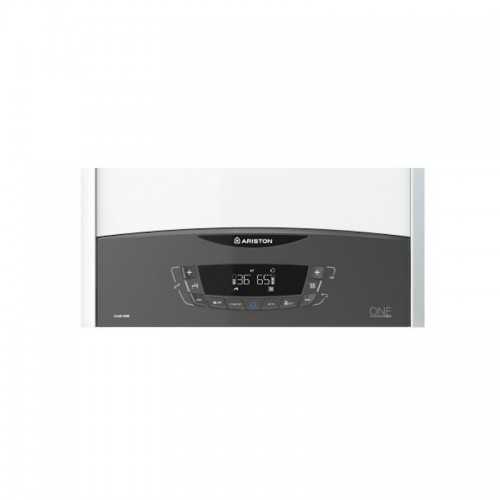

The system incorporates wiFi and Technology Connectivity Ariston Serial net, allowing advanced remote control from mobile devices and full access to intelligent functions. The busbridgeNet® Communication Protocol ensures perfect integration with modulating control systems, while the lCD Display with Intuitive Interface facilitates the configuration and advanced local monitoring.

The energy rating A + in heating it is reached by means of the combination of modulating environment and external probe, achieving exceptional yields of 97.9% at a nominal power (60/80 ° C) and 107.3% at low temperature (30 / 50th C.). 30% charge keeps 109.6% performance, demonstrating constant efficiency and significant energy savings.

The integrated Auto and Comfort Functions automatically optimize the drive temperature and provide micro-micumulation of DHW for instant availability. The optimized internal muffler and the integrated Safety BY-PASS they guarantee ultrasilencious operation and full protection of the hydraulic system.

With waterproof camera and flexible evacuation system, allows versatile installation with smoke evacuation lengths of up to 7 meters in Ø60 / 100 and 24 meters in Ø80 / 125. The lower manometer with digital electronic reading by means of pressure transducer it facilitates preventive maintenance and advanced technical diagnosis.

Fully compatible with natural gas and hydrogen up to 20% no need for additional modifications, prepared for the sustainable energy transition. The propane Gas Transformation Kit Included Series expand the installation options according to availability and local fuel preferences.

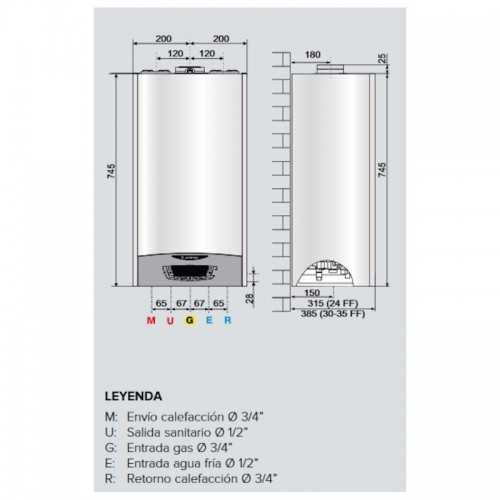

The CLAS One WiFi 30FF EU represents the optimal solution for heating and sanitary hot water in large housing and commercial applications, combining cutting-edge technology, superior energy efficiency and intelligent connectivity in a compact format of 74.5 x 40 x 38.5 cm and 32.3 kg.

Main features

Technical specifications

Features and temperatures

Intelligent functions and connectivity

Options Evacuation of fumes

Energy classification

CASE ONE WIFI 30FF condensation boiler!

Top power 30kw with Xtratech ™ technology, integrated WiFi connectivity. Maximum performance for demanding installations!
