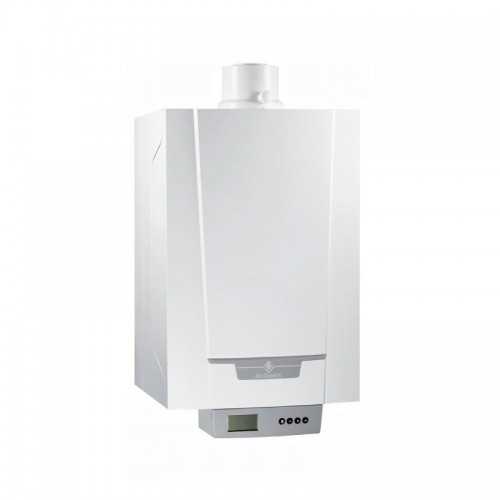

Boiler mixed mural gas De Dietrich Naneo S EMC-S 30/35 My Instant Gn

The De Dietrich Naneo S EMC-S 30/35 mi it represents the maximum expression in condensation boilers with high power instantaneous micro-columulation, offering modulable power from 8.5 kW up to 31.0 kW for heating and exceptional 33.9 kW in sanitary mode. This high-end premium boiler incorporates a large dimensional stainless steel plates exchanger optimized that guarantees a higher production of sanitary hot water with classification *** according to rule in 13203.

Keeping the ultra-compact dimensions of 368 x 674 x 364 mm with weight of only 29 kg, This innovative design boiler combines maximum power with minimum busy space. The exceptional performance reaches 99.3% at a nominal power and 110.4% to 30% load, ensuring maximum energy efficiency with classification in both heating and in DHW.

Advanced high-end technology includes class A modulating circulation pump (EEI <0.23), , modulator of 24% 100% high power for perfect adaptation to large demands, and hydraulic module reinforced with investment valve Heating / sanitary. The system incorporates 8-liter expansion cup and full mount template with pre-installed faucet.

Compatible wiFi Smart TC ° Environmental Thermostat and Advanced OpenTherm Modulant Probe, allows total remote control and intelligent programming for large facilities. The production of DHW by micro-building it offers 17.3 l / min with Δt = 30k, guaranteeing immediate and abundant comfort without waits for the whole family. The low emissions NOx ≤ 50 mg / kWh (class 6) they confirm superior environmental commitment.

The compact exchanger made of high-performance aluminum-silicon casting and the air-Gas Module with High Power Total Premix Burner they ensure maximum durability and higher efficiency. The boiler includes multiple Evacuation Configurations: Horizontal, Vertical, Fireplace, Body and Collective Conduit 3CEP, offering maximum professional installation flexibility.

Naneo S EMC-S 30/35 MI represents the definitive solution for heating and instantural sanitary hot water in large facilities, combining cutting-edge technology, maximum power and ultra-compact design in a premium boiler that guarantees absolute comfort for All family and exceptional energy savings in large homes and medium commercial applications.

Main features

Technical specifications

Options Evacuation of fumes

Energy classification

De Dietrich Naneo S EMC-S 30/35 MI - Maximum power!

High power 31kW with upper micro-micumulation, WiFi Smart TC °, 110.4% yield and 17.3 l / min DHW. The premium boiler for large facilities!
