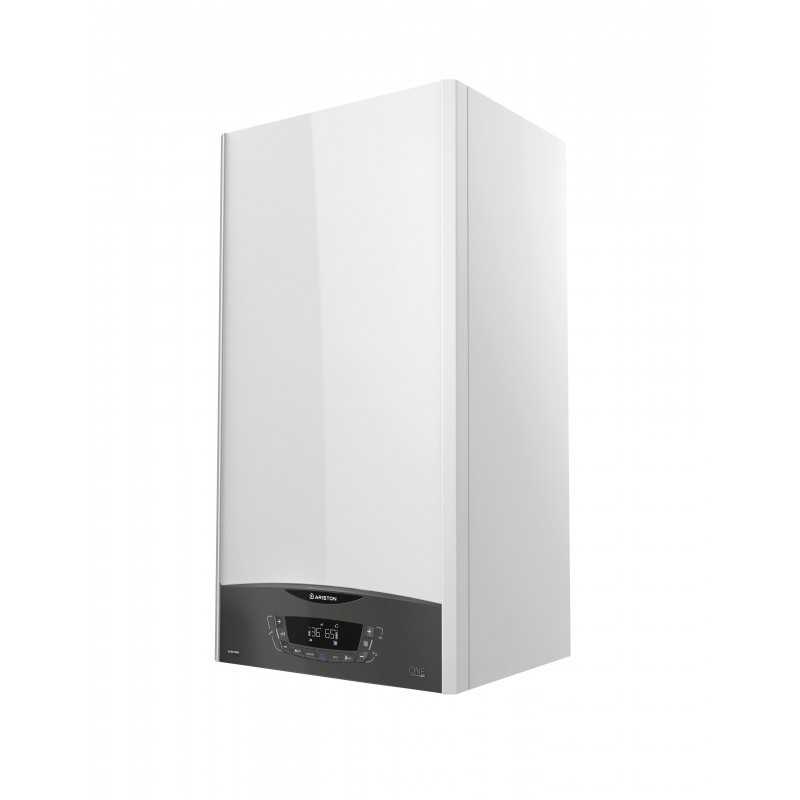

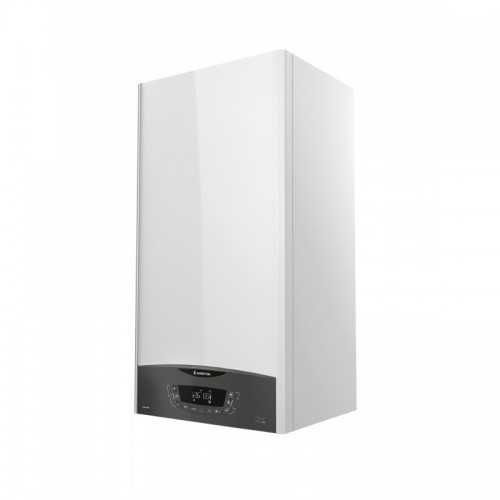

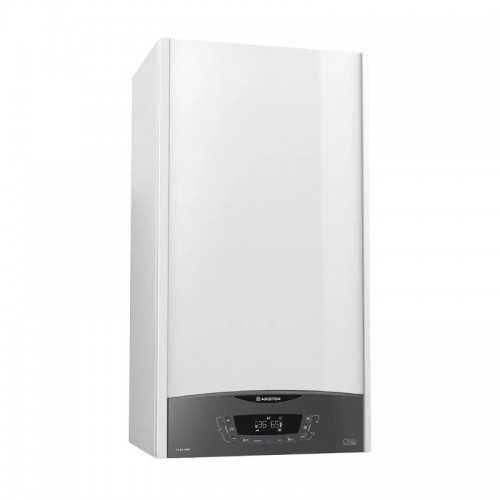

Mixed wall boiler Ariston CLAS ONE WIFI 35FF EU

The Ariston CLAS ONE WIFI 35FF EU is a mixed wall condensation boiler 35kw maximum power designed specifically for large homes and medium commercial applications. This high-end model (Code 3302125) integra the innovator xtratech ™ Stainless Steel Primary Exchanger patented and exclusive Ariston, guaranteeing maximum energy efficiency and exceptional durability under demanding conditions.

With nominal power of 31.0 kW for heating and 34.5 kW for sanitary, this premium mixed boiler offers smart modulation from 4.3 kW minimum, providing a modulation range 1: 8 Superior that maximizes energy efficiency and minimizes consumption. The maximum useful power reaches 30.2 kW for heating (60/80 ° C) and 33.0 kW for hot water health, Ensuring total comfort in the most demanding facilities.

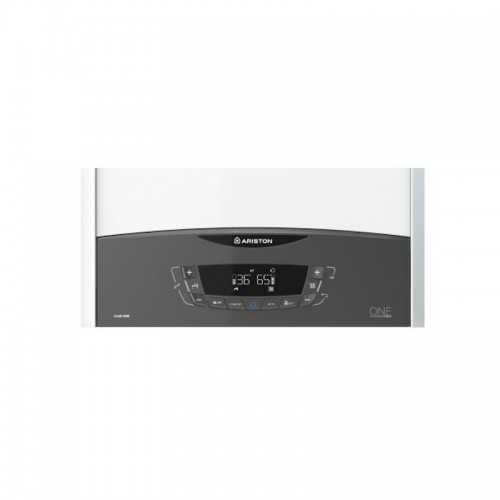

The system incorporates advanced Wi-Fi connectivity and technology Ariston Serial net, allowing full remote control from mobile devices and total access to intelligent management functions. The busbridgeNet® Communication Protocol ensures perfect integration with advanced modulating control systems, while the lCD Display with Intuitive Interface facilitates professional configuration and detailed local monitoring.

The energy rating A + in heating it is achieved through the optimized combination of modulating environment and external probe, achieving exceptional yields of 97.5% at nominal power (60/80 ° C) and 108.2% at low temperature (30 / 50th C.). 30% charge keeps 109.6% performance, demonstrating constant efficiency and maximum energy savings in any operational condition.

The integrated Auto and Comfort Functions automatically optimize the drive temperature and provide micro-micumulation of DHW for maximum instant availability. The optimized internal muffler and the integrated Safety BY-PASS they guarantee ultrasilencious operation and full protection of the hydraulic system under any working condition.

With waterproof camera and advanced flexible evacuation system, allows versatile installation with smoke evacuation lengths of up to 7 meters in Ø60 / 100 and 27 meters in Ø80 / 125. The lower manometer with precise digital electronic reading by means of pressure transducer, it facilitates preventive maintenance and advanced professional technical diagnosis.

Fully compatible with natural gas and hydrogen up to 20% no need for additional modifications, fully prepared for the sustainable energy transition of the future. The propane Gas Transformation Kit Included Series expand the installation options according to availability and local fuel preferences, maximizing versatility.

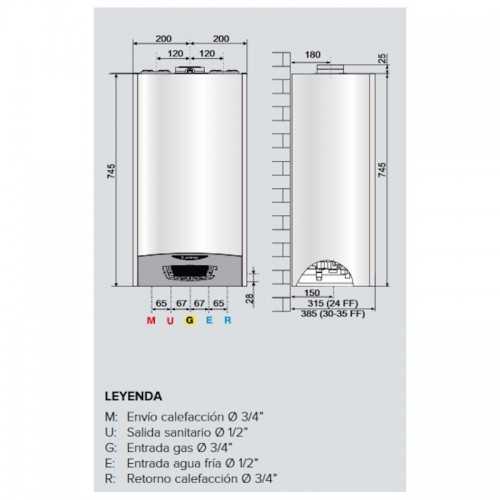

The CLAS One WiFi 35FF EU represents the definitive solution for heating and sanitary hot water in large homes and demanding commercial applications, combining cutting-edge technology, maximum energy efficiency and advanced intelligent connectivity in a compact format of 74.5 x 40 x 38.5 cm and 33.4 kg.

Main features

Technical specifications

Features and temperatures

Intelligent functions and connectivity

Options Evacuation of fumes

Energy classification

CASE ONE WIFI 35FF condensation boiler!

Maximum power 35KW with Xtratech ™ technology, integrated WiFi connectivity. Superior performance for large facilities!
