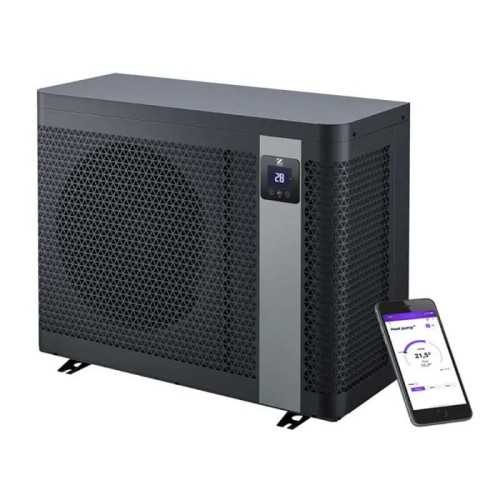

Heat pump Zodiac Z260iq MD6 | Full Inverter R290 12 KW
Heat Pump Premium Full Inverter Horizontal Zodiac, model Z260iq MD6. It incorporates the natural coolant R290 (propane), offering the cleaner and most sustainable performance of the sector. Certificate to work under standard conditions of ** Air 15 ° C / Water 26 ° C / Humidity 70% **, provides a maximum heating power of 12.0 kW with excellent "A" classification under the European standard EN17645 (seasonal scop of 8.4). Designed to be integrated into all types of pools up to 120 m³, it offers uninterrupted operation in the four stations, supporting outer temperatures up to -20 ° C, with Wi-Fi management standard by app Fluidra Pool.
• Restituted power (max min): 12.0 - 3.9 kW (air 15 ° C / water 26 ° C)
• Certified working COPs: 4.9 - 7.8 W / W (air 15 ° C / water 26 ° C)
• Eco-sustainable: Gas Natural R290 (propane GWP = 3) and Classification A
• Extreme operability: guaranteed operation up to -20 ° C
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Z260iq MD8 R290 Heat pump Zodiac for pool
Referencia: WH000612
€3,452.87
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat pump Zodiac Z260iq MD6 | Full Inverter R290 12 KW
Heat Pump Premium Full Inverter Horizontal Zodiac, model Z260iq MD6. It incorporates the natural coolant R290 (propane), offering the cleaner and most sustainable performance of the sector. Certificate to work under standard conditions of ** Air 15 ° C / Water 26 ° C / Humidity 70% **, provides a maximum heating power of 12.0 kW with excellent "A" classification under the European standard EN17645 (seasonal scop of 8.4). Designed to be integrated into all types of pools up to 120 m³, it offers uninterrupted operation in the four stations, supporting outer temperatures up to -20 ° C, with Wi-Fi management standard by app Fluidra Pool.
• Restituted power (max min): 12.0 - 3.9 kW (air 15 ° C / water 26 ° C)
• Certified working COPs: 4.9 - 7.8 W / W (air 15 ° C / water 26 ° C)
• Eco-sustainable: Gas Natural R290 (propane GWP = 3) and Classification A
• Extreme operability: guaranteed operation up to -20 ° C
Security policy
Delivery policy
Refund policy
Zodiac Z260iq MD6 Full Inverter
The vanguard of sustainable air conditioning. Impeccable performance with ecological natural refrigerant R290, Air Certificate 15 ° C / Water 26 ° C / Humidity 70%, classification A and smart remote management Fluidra Pool.
Technical study and air conditioning balance
Due to the thermal losses caused by radiation, wind and surface evaporation, which vary according to the climatic zone and the size of the vessel, we carry out personalized sizing studies for your pool. To ensure the correct choice of the Z260iq series model, determine the initial EPTMOS elevation times based on standard air parameters 15 ° C / water 26 ° C / humidity 70% and suitably configure the installation with by- kit- Pass, our engineering department exhaustively studies each request.
🏊♂️
1. Dimensions and surroundings
Provide us with the square meters of water sheet, average depth and if it has a cover to validate the performance of the Z260iq MD6 model with its seasonal capacity of 12.0 kW.
📍
2. Season and objectives
Indicate your Province of Residence and if you want a conventional use of summer or extend the bathroom to all stations, taking advantage of its extraordinary operating range of up to -20 ° C.
📩 Facilitate this data and our engineers team will calculate a tailored thermal balance for your pool.
Efficient and lasting air conditioning: Ecological performance adapted to any climate
The heat pump Zodiac Z260iq MD6 introduces a new standard in comfort and respect for the environment in the air conditioning of outdoor or interior pool vessels up to 120 m³. The great technical revolution of the series lies in the replacement of traditional gases by the natural refrigerant R290 (propane), an alternative of very low environmental impact with a global warming potential (GWP) of only 3 against the value of 675 that presents the R32 gas. By combining this ecological compound with the latest generation horizontal Full Inverter architecture, the equipment continuously and automated the frequency of its compressor and the fan, providing impeccable thermal comfort that drastically reduces electricity consumption of housing.
Supplied under the new and strict European Sustainability Normative EN17645, the Z260iq MD6 has an official energy certification of "A", achieving a seasonal performance coefficient (SCOP) of 8.4. Its robust engineering highlights outstandingly as a heat pump for all seasons, being able to extract thermal energy from outside air and transfer it into water even in environments under the toughest and colder climates up to -20 ° C. Its structure and internal components guarantee total compatibility with any chemical disinfection system or traditional saline chlorination, ensuring a high durability and resistance from the long-term exchanger.
Digital monitoring and operating convenience are resolved through a clear and intuitive LCD screen integrated into the chassis itself and Wi-Fi connectivity. Through the official application Fluidra Pool, users can configure, program and remotely adjust the water temperature 24 hours a day. The system has three preconfigured operating modes that modulate according to the air conditioning needs: the mode Boost, oriented to deliver the maximum refrigeration power for a rapid increase in temperature; way Smart, which automatically manages the power adapting in real time; and the mode Ecosilence, which prioritizes extreme energy savings and completely minimizes the emission of noise.
Technical characteristics
Certified Energy Performance
Model reference: Z260iq MD6 (official technical sheet Zodiac)
Certified Sustainability: Classification "A" according to EN17645 standard
In 17645 seasonal scop: 8,4
Approved performance (air 15 ° C / water 26 ° C / humidity 70%):
• Maximum heating power: 12.0 kW
• Minimum heating power: 3.9 kW
• Max-minted power: 2.4 kW - 0.5 kW
• COP performance coefficient (total range): 4.9 ~ 7.8 W / W
Alternative performance (Air 26 ° C / Water 26 ° C / Humidity 80%): Power 15.5 - 5.5 KW | COP 6.1 - 12.4
Climate Operation Limit: Four-stations pump (operates up to -20 ° C of outside air)
Mechanical and hydraulic specifications
Recommended water flow: 6 m³ / h
Electrical supply of the system: Single-phase 220-240V / 1 / 50-60 Hz
Gas-type Refrigerant Gas / Sustainability: R290 Natural (propane - GWP = 3)
Treatment compatibility: All kinds of waters (chlorine, bromine, salt, etc.)
Hydraulic connection: 1/2 "Union of PVC Adhesive 50 mm in diameter
Acoustic pressure at 10 m (max min): 34 dB (A) - 23 dB (A)
Dimensions of the chassis (an. X al. X prof.): 1135 x 750 x 423.5 mm
Accessories included as standard
• Protective Premium Case for Hibernation Periods
• Complete drainage kit for condensate management
• 2 1/2 "PVC binding links (Ø 50 mm) to glue
• 4 robust feet base support anti-vibration
Frequently Asked Questions and Climate Management
How are Boost, Smart and Ecosilence modes configured and differentiate?
The Full Inverter system of the Zodiac Z260iq allows you to select three operating strategies from your panel or smartphone: the mode Boost squeeze the compressor 100% of its ability to heat the water in the shortest possible time (ideal for the start of season); way Smart monitors the temperature constantly and self-management the intermediate optical speed; while the mode Ecosilence it limits the power ceiling, prioritizing the energy saving of the house and achieving an ultrasilence functioning.
What relevance does the classification "A" obtained under the European standard EN17645?
Standardized regulations EN17645 promotes the ecological sustainability of pool equipment through the evaluation of the seasonal performance coefficient (SCOP). It establishes a strict classification of efficiency that goes from the letter "A" to the "F". To achieve the maximum grade of class "A", the system must certify a SCOP equal to or greater than 7, a value that the Z260iq MD6 model exceeds excellently when reaching an 8.4 SCOP under normalized air conditioning conditions 15 ° C / Water 26 ° C / Humidity 70%.
Would you like advice for the sizing of your commercial installation?
On https://tualmacendelclima.com/en/ we are engineers specialists in technical design, control and optimization of air conditioning, air stopermia and water heating for residential and collective pools. If you need to solve doubts about simultaneity coefficients, maximum slopes or check the official performance specifications of the range Zodiac, our engineering department is at your entire disposal.
Call 623 541 934
WH000612
Data sheet
- Brand
- Zodiac
- Electrical supply
- Monofásica
- COP (Maximum capacity)
- 6,7
- Recommended flow (M3 / h)
- 7,0
- Power Heating (KW)
- 15,0
- Nominal current (A)
- 14,1
- Nominal consumed power (KW)
- 3,20
- TRA MINIMUM WORK (ºC)
- -20
- WiFi
- Incluido
- High (mm)
- 750
- Width (mm)
- 1.135
- Deep (mm)
- 423
- Weight (kg)
- 94
