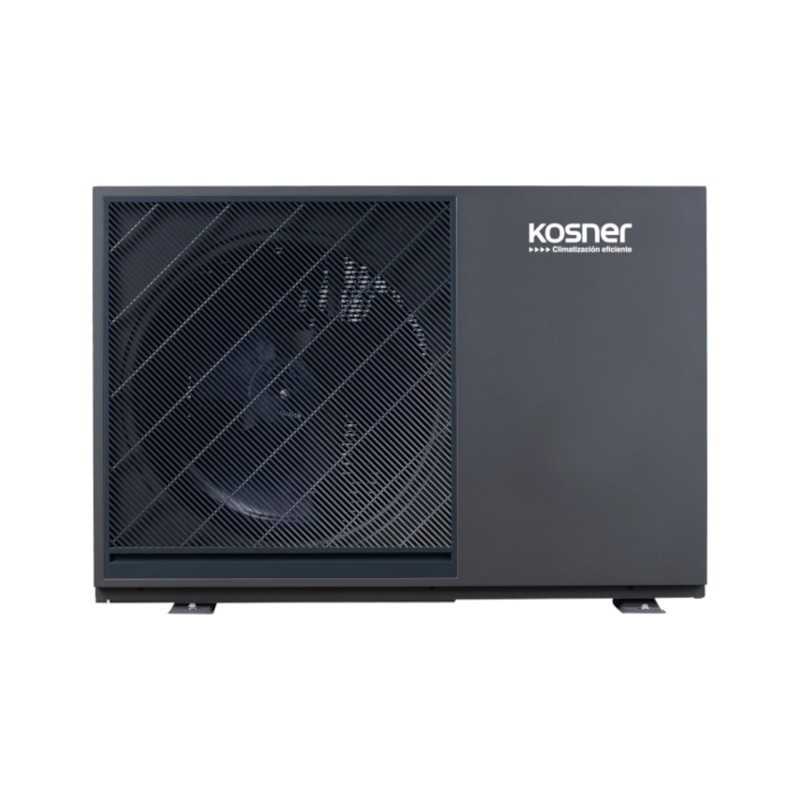

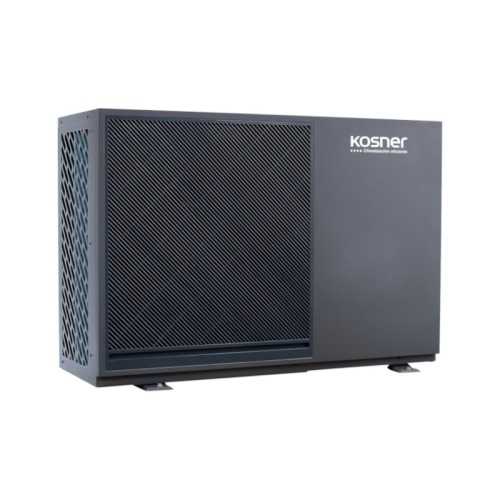

Aerotermia Pump Heat Monobloc Kosner Aquaris D HT 09 R-290

High temperature comfort at hand

The air pump airplane Kosner Aquaris D HT 09 High temperature monobloc represents the final option for those seeking to replace an inefficient old heating system by a sustainable solution without sacrificing power. With a nominal thermal capacity of 9.1 kW, this Inverter equipment is developed to provide high reliability heating, efficient cooling during the summer and constant production of sanitary hot water (DHW). Being configured in a 100% hydronic monobloc format, the propane gas refrigeration circuit comes completely airtight and factory sealing in the outer module, discarding any manipulation of refrigerant gases inside the house and simplifies the tasks Technical assembly.

🌿 Refrigerant Gas Natural propane R-290 and Maximum energy certification

The true ecological engine of the Kosner Aquaris D HT 09 lies in its optimized design for the propane natural refrigerant R-290. This gas stands out for its potential for global warming (GWP) practically null and an insignificant environmental impact compared to traditional synthetic refrigerants. Taking advantage of the exceptional physical properties of this natural hydrocarbon, the equipment reaches the maximum seasonal energy classification of ** A +++ / A +++ ** both in low temperature (W35 ° C) and in Medium-High Temperature (W55 ° C). With a Seer up to 7.82 (water at 18 ° C) and a 4.73 scop (water at 35 ° C), this system guarantees a drastic reduction in the monthly housing electricity consumption, unbalanced your installations ultimately.

🔧 factory integrated hydraulic architecture

The new Aerotermia Kosner gAMA D HT has been meticulously developed to facilitate the work of professionals installers abroad, minimizing assembly and space required times. Inside its robust compact chassis includes as standard a complete hydraulic kit: an electronic water pump and variable speed, 6-liter expansion cup, 3 bar safety valve, water flow switch, a pressure sensor of Integrated water and a refrigerant / water separator with automatic disappointing valve. Factory is also supplied with rubber antivibratories for its lower base and a type water filter and to protect the plaque exchanger. To speed up preventive technical maintenance, it has a fully folding electrical panel.

🌡️ Water impulsion at 75 ° C and resistance to rigorous climates

Thanks to its advanced Inverter technology applied in the compressor, the fan and the circulating pump, the Aquaris D HT 09 is able to promote hot water at temperatures up to 75 ° C directly towards the housing air conditioning circuit Require additional electrical support resistances that shoot the invoice. Your operating limits are extraordinary: in heating modes and DHW it maintains optimal operation even against frost or extreme winter conditions of up to -20 ° C exterior. In the summer season, the cycle is reversed with the same efficacy to air conditioning the housing by means of Fancoils or refreshing floor, supporting outer temperatures of up to 43 ° C.

🔌 Completely controlled management: series wifi and modbus

Intelligent connectivity is a standard in the HT range of Kosner. Each equipment incorporates as standard and loose the KDA-120 cable wall driver along with a bus wiring roll of 20 meters in length. This digital control with intuitive touch screen exerts environmental thermostat functions and has wifi connectivity as standard to link the machine with the exclusive application of Kosner on any mobile device. From the app, the user can adjust the slogans, establish advanced weekly schedules and visualize the detailed energy measurement of the equipment in real time. For more complex residential or commercial automation projects, integration under the Modbus protocol serial, facilitating its remote connection to BMS systems.

🔇 Superior acoustic comfort using antivibratory technology

Kosner he has paid special attention to acoustic comfort in the development of the high temperature HT range to ensure harmonious integration in residential environments. Aquaris D HT 09 has an acoustically optimized fan, vibration reducing blocks, perimeter acoustic insulation by metal layers combined with high-density cotton, and double layer rubber antivibratories at the base of your compressor. Thanks to this comprehensive mechanical insulation, the unit registers a low sound of only 56 dB (A) of nominal acoustic power (43 dB of sound pressure to 1 meter away). It also has two silent operating modes programmable by schedule to guarantee absolute night break.

🎯 Verified technical characteristics (Official data)

All the information contained in the following technical data table has been verified in accordance with the official specifications contained in the reference technical document "Aquaris D HT R-290 Monobloc Kosner.pdf ":
