Maximum power, insurmountable efficiency
The model LG Hm141hf.ub60 14KW is the perfect response for large residential thermal demands. With exceptional seasonal performance in average climate that reaches a scop of 5,45, it is positioned as one of the most profitable investments for sustainable air conditioning. Designed for housing large surfaces and isolated chalets, it offers Hot water at 75 ° C and a superior acoustic comfort thanks to its ultra silent biomimetic fan.
14,00 kW heating A +++ Scop 5,45
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

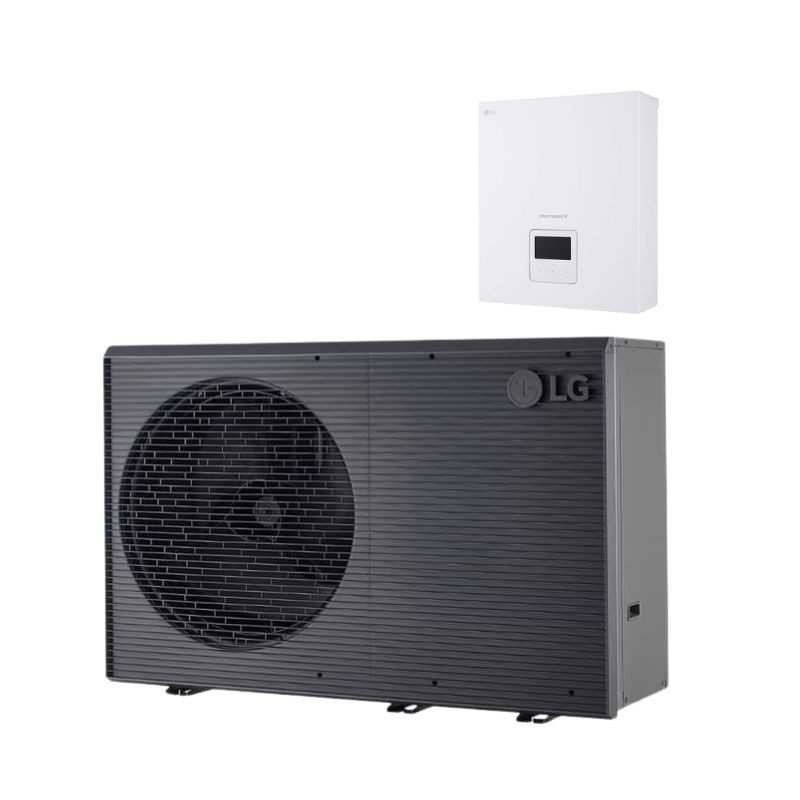

Aerotermia HM141HF.UB60 Monobloc Control Box LG Therma V R290
Referencia: HM141HFMPHCS0
âŹ6,514.98
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Maximum power, insurmountable efficiency
The model LG Hm141hf.ub60 14KW is the perfect response for large residential thermal demands. With exceptional seasonal performance in average climate that reaches a scop of 5,45, it is positioned as one of the most profitable investments for sustainable air conditioning. Designed for housing large surfaces and isolated chalets, it offers Hot water at 75 ° C and a superior acoustic comfort thanks to its ultra silent biomimetic fan.
14,00 kW heating A +++ Scop 5,45
Security policy
Delivery policy
Refund policy
Professional Monobloc Aerotermia | R290
LG Therma V R290 14kw
Model HM141HF.UB60: The maximum seasonal efficiency for total comfort.
Superior performance for modern home
The LG Therma V Monobloc R290 from 14KW (HM141HF.UB60) It represents the ideal combination of robust power and green technology for the air conditioning of the home. By integrating ecological natural refrigerant R290 (propane), LG has developed a team capable of dealing with rigorous winters, guaranteeing a water drive temperature up to 75 ° C. and a continuous and stable operation even before extreme outer temperatures up to -28 ° C. This model stands out for its high seasonal performance, recording a scop of 5,45 in low temperature applications, which gives it solvency the maximum energy certification To +++.
Thanks to its advanced monobloc architecture, the entire refrigeration cycle is completely sealed in the outdoor Unit. This releases valuable space in the interior strengths of the building and significantly simplifies the installation tasks, since the assembly is performed purely by hydraulic water connections, dispensing completely with conventional refrigeration lines inside the house.
Full technical sheet HM141HF.UB60
Thermal yield (35 ° C / 55 ° C)
Nominal power heat: 14.00 kW
COP (A + 7 / W35): 4,32
COP (A + 7 / W55): 2,85
SCOP medium climate (W35): 5,45
SCOP medium climate (W55): 3,97
Energy class (W35 / W55): A +++ / A +++
Dimensions and sound
Measures Outdoor Unit: 1560 x 1019 x 520 mm
Net weight Outdoor Unit: 178 kg
Acoustic power (heat): 48 dB (A)
Gas Refrigerant Gas / Preload: R290 / 1.2 kg
Electrical supply: 220-240V, 1 phase, 50Hz
Hydraulic connections: Male thread, pt 1 inch
Exclusive technologies of LG
âïž Advanced Scroll Compressor: Optimized component to operate with total stability under the characteristic pressures of the natural propane gas, attenuating vibrations and prolonging operational life.
âïž Black End Coating: Advanced anticorrosive treatment on the heat exchanger to confer maximum protection against coastal saline atmospheres or areas of intense industrial pollution.
âïž Intelligent control THINQ: Digital ecosystem To schedule climate slogans, supervise energy consumption to detail and access quick diagnostics from your smartphone.

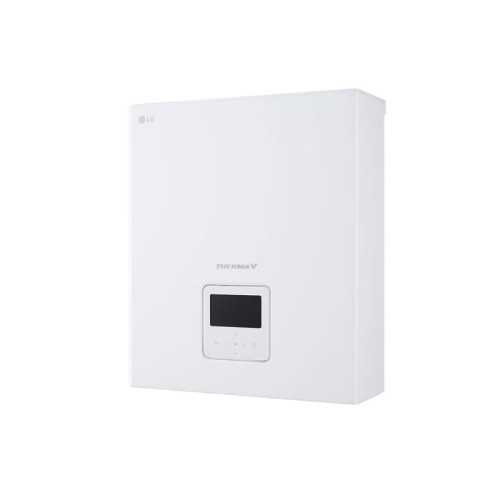

âïž Control Box PHCS0 Included: Electronic management module that is integrated into the supply to cleanly centralize the reading of the hydraulic sensors, the flow logic and the signals of the primary circuit.
Frequently asked questions
Is it compatible with conventional radiators?
Yes, thanks to its ability to promote hot water at 75 ° C exclusively through the refrigerator cycle, this equipment can supply old iron or aluminum radiators efficiently in the replacement of thermal boilers.
What function does the Box PHCS0 control meet?
The BOX control acts as the electronic brain of internal interconnection of the installation, facilitating the integration of zone temperature probes, three-way valve management and organized field elements.
Do you require periodic gas handling reviews?
Not in the internal domestic circuit. Being a monobloc system with hermetically sealed propane circuit abroad, the installer only handles water, reducing long-term gas maintenance requirements.
Do you need help with your Aerotermia project?
In your climate store we are specialists in solutions LG. Check with our specialized engineers to configure the schema of your installation and get an adapted budget.
Call 623 541 934
HM141HFMPHCS0
Data sheet
- Brand
- LG
- Refrigerant Gas
- R290
- Control
- Control Box PHCS0
- Electrical supply
- MonofĂĄsica
- COP
- 4,50
- Scop (warm weather)
- 6,35
- EER
- 2.99
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 75
- Power Nominal heat (W)
- 14.000
- Heat consumption (W)
- 3.110
- Nominal cold power (W)
- 14.000
- Cold consumption (W)
- 4.010
- Energy efficiency
- A+++
- WiFi
- Opcional con Accesorio PWFMDD200
- High (mm)
- 1.019
- Width (mm)
- 1.560
- Background (mm)
- 520
- Weight (kg)
- 178
