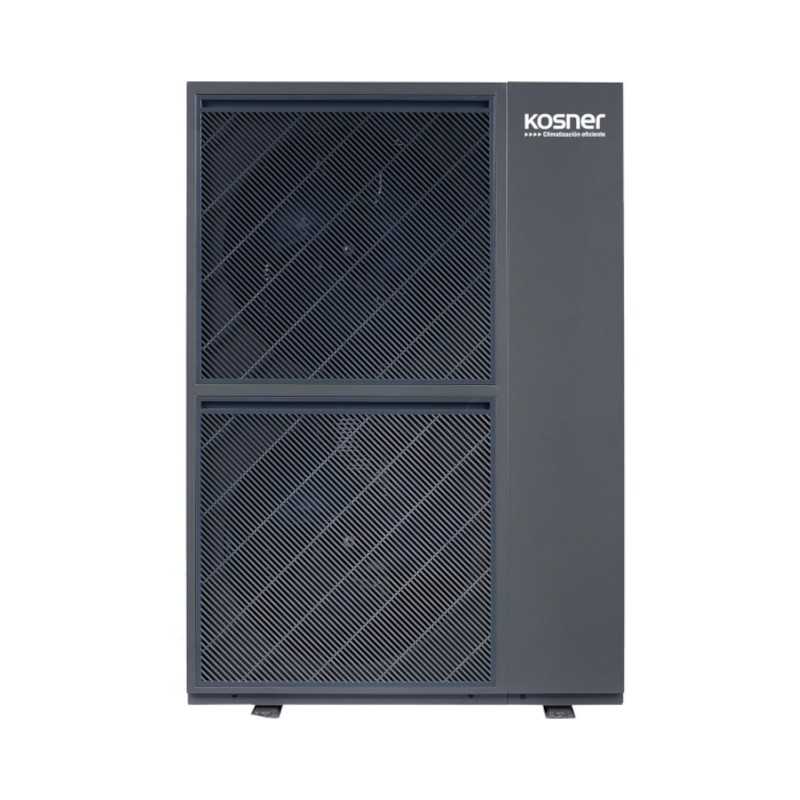

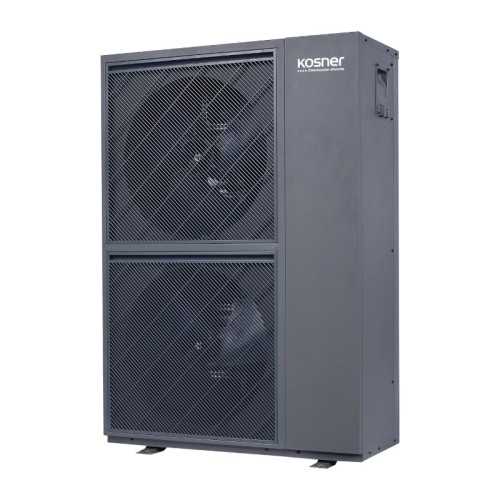

Aerotermia Pump Heat Monobloc Kosner Aquaris D HT 16 R-290

High temperature comfort at hand

The air pump airplane Kosner Aquaris D HT 16 high temperature monobloc represents the highest step in the thermal capacity of the range, offering an exceptional engineering solution for large single-family homes, large-area residential villas and commercial premises or tertiary use. With its 16.1 kW of nominal power in heating, this powerful Inverter system unifies centralized heating services, high demand cooling in summer and massive health hot water production (DHW). Being designed in a 100% hydronic monobloc format, the entire cooling circuit comes hermetically sealed from the factory in the outer module, facilitating the technical assembly work and eliminating the risks due to fluorinated gas handling.

🌿 Refrigerant Gas Natural propane R-290 and premium seasonal performance

Ecological excellence and maximum energy savings merge in the Kosner Aquaris D HT 16 through the integration of natural gas propane R-290. This refrigerant stands out for its low environmental impact and its total compliance with the most restrictive European regulations. Squeezing the magnificent thermodynamic capabilities of this natural gas, the team reaches an exceptional energy classification of A +++ / A ++ (W35 ° C / W55 ° C). With a 4.60 scop working with water at 35 ° C and a SEER up to 6.47 with water at 18 ° C, this heat pump guarantees an optimized electricity consumption, drastically minimizing the electricity bill even in the most severe winters.

🔧 Integrated hydraulic architecture to facilitate installation

The new Aquaris D HT range has been meticulously developed to optimize space and facilitate the tasks of technical professionals abroad. Inside its robust fan chassis optimized, the equipment houses a full integrated hydraulic assembly that includes: an electronic water pump variable, 6-liter expansion vessel, 3 bar safety valve, flow switch of Water, integrated water pressure sensor and a refrigerant / water separator with automatic disappointing valve. The serial supply also includes rubber antivibratory for its lower base and a type water filter and to protect the welded plate exchanger. It also has an electric box to speed up technical preventive maintenance tasks.

🌡️ Water impulsion at 75 ° C and resistance to rigorous climates

Thanks to its advanced Inverter compression technology, Aquaris D HT 16 allows you to perform the energy transition by replacing old boilers without changing the existing iron or aluminum radiators in the building, since it is capable of reaching a water drive temperature of up 75 ° C directly and totally hydroly. Climate operating limits are leaders in your segment: in heating and production modes of DHW it maintains an optimal and uninterrupted operation even against severe frosts or extreme winter conditions below -20 ° C outer. During the summer season, it reverses its cycle with the same solvency to provide refreshing refreshing through high-power flatlantes or refreshing soil networks, operating stable with outer temperatures up to 43 ° C.

🔌 Fully controlled management: Wi-Fi series and Modbus connectivity

Each unit is delivered as standard next to the KDA-120 digital cable controller (provided with a 20-meter communication cable) supplied loose for its interior placement. This intuitive-screen wall knob acts as an advanced environmental thermostat and has integrated WiFi connectivity, linking the equipment to the exclusive application of Kosner for any mobile device. Through the APP, the user can regulate the setpoint temperatures, establish detailed weekly schedules and visualize the detailed energy measurement of the equipment in real time. For complex residential automation or commercial sector projects, it incorporates the Modbus protocol as standard to facilitate the link to centralized BMS systems.

🔇 Superior acoustic comfort using antivibratory technology

Despite its large size and high thermal capacity of 16 kW, Kosner it has implemented an exhaustive design of perimeter mechanical insulation to minimize the acoustic impact on residential or commercial centers. The unit incorporates acoustically optimized fans, vibration reducing blocks, perimeter acoustic insulation by metal layers combined with high-density cotton, and double-layer rubber antivibratories at the base of your compressor. Record a sound pressure of only 50 dB (A) to 1 meter away, including two silent operating modes programmable by schedule to ensure total discretion and acoustic well-being during night rest hours.

🎯 Verified technical characteristics (Official data)

All the information contained in the following technical data table faithfully reflects the official specifications of the manufacturer Kosner for the single-phase model Aquaris D HT 16, extracted from the official reference technical document "Aquaris D HT R-290 Monobloc Kosner.pdf ":
