Absolute power and natural comfort in the minimum space
The air pump airplane Panasonic Aquarea T-Cap Series M WH-WXG30ME8 Of 30 kW is the hydronic solution of the maximum capacity of the range, designed for large residential complexes, multifamily buildings or hotels. By incorporating natural ecological refrigerant R290, this advanced three-phase monobloc system drives Water at 75 ° C Cleanly. Thanks to its powerful T-CAP engineering, it guarantees a stable thermal supply against very severe winters with a perfect phase swing. This configuration includes ** internal three-phase control module WH-CME8L **, a compact wall installation module that optimizes internal electronics and simplifies hydraulic integration without subtracting space.
30,00 kW capacity T-cap WH-CME8L module included
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc T-Cap | Maximum machine M Series three-phase
Panasonic Aquarea T-Cap Series M 30KW

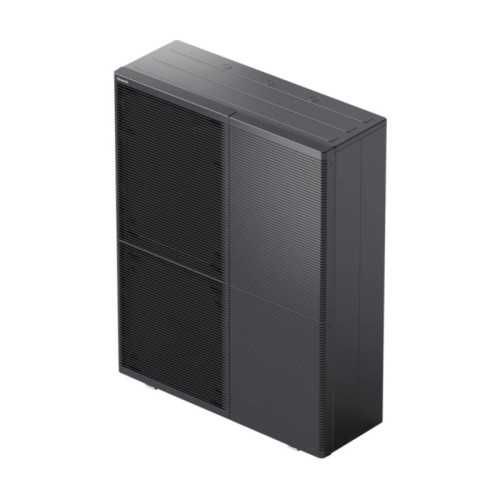

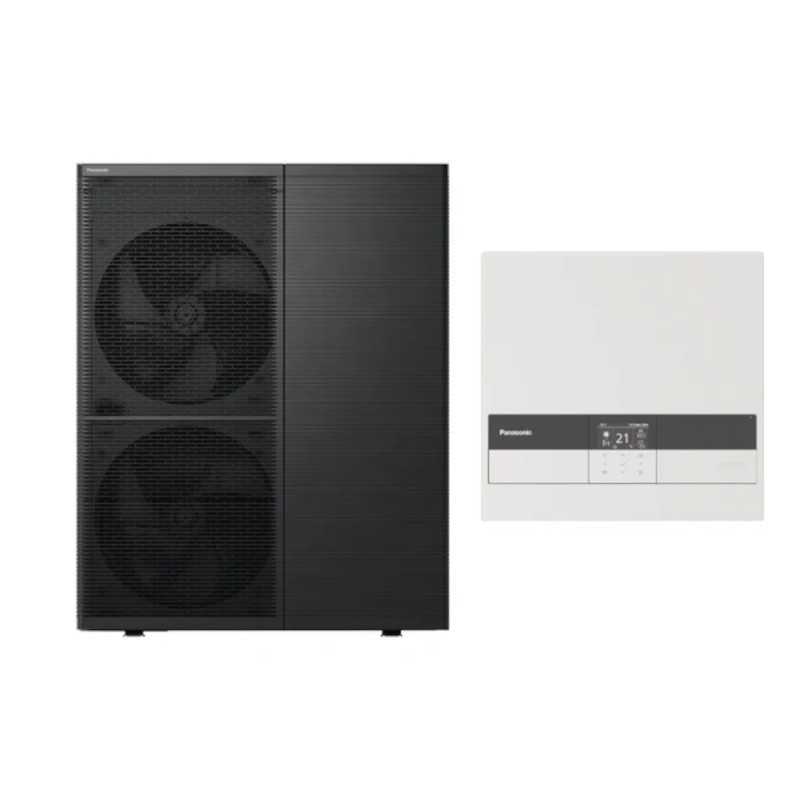

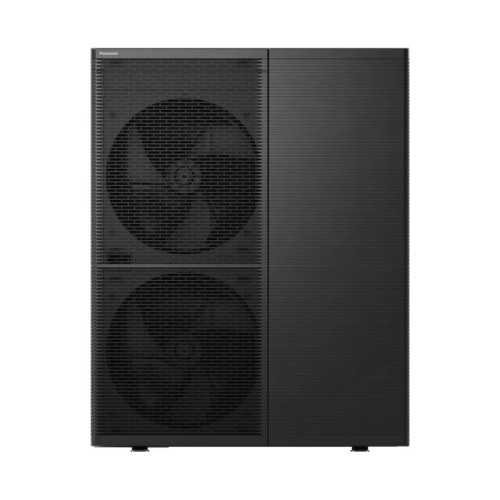

Outdoor Unit WH-WXG30ME8 with Wh-CME8L Mural Module: High Temperature Giant, Phase Rolling and Total Interior Visual Cleaning.
Industrial performance, network balance and space optimization
The Monobloc heat pump Panasonic Aquarea T-Cap Series M WH-WXG30ME8 it is consolidated as the highest power solution of its category, designed specifically to address large-scale projects. By combining your blunt 30 kW of thermal power with state-of-the-art natural gas R290 (Propane), this model with three-phase feeding at 400V is ideal for large residential facilities, unifamily developing urbanizations with centralized network, hotels, health centers or commercial surfaces that require uninterrupted thermal comfort. By registering a practically nil global warming potential (PCA = 3), dodge all European tax restrictions and offers maximum ERP energy label To +++.

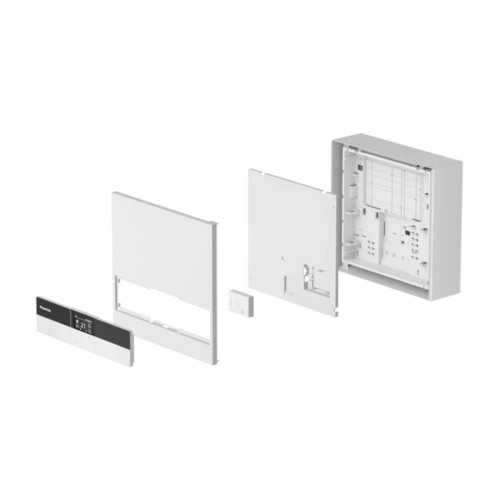

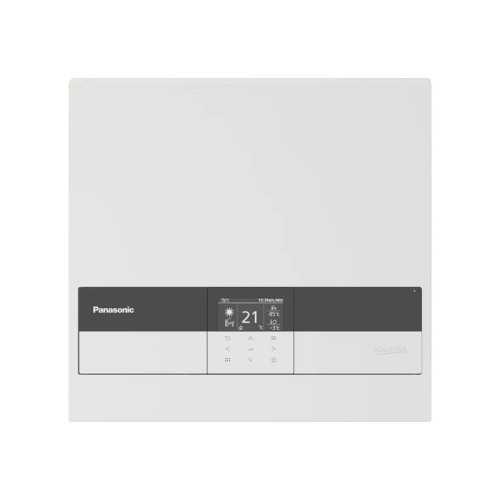

The great differential advantage of this solution lies in the joint integration of the new three-phase internal control module WH-CME8L. Designed as a discreet mural box to install inside the building (such as the technical room, laundry or kitchen), the WH-CME8L module centralizes in a highly orderly ordered electronics, the general three-phase connections, the terminal blocks of connectivity and the communication logics of the aerothermal system. This prevents having to deploy complex wiring or naked switchpots in sight, facilitating a clean, orderly and aesthetic installation that does not consume useful space on the property floor.
Thanks to the extraordinary thermodynamic properties of gas R290, the outdoor Unit it is able to boost hot water towards the air conditioning circuit until 75 ° C in a purely direct way through the compressor, facilitating the direct replacement of voluminous and inefficient fossil boilers while maintaining intact the pre-existing network of high temperature radiators, providing the massive flow that complex facilities demand. In addition, its exclusive technology T-Cap (Total Capacity) it guarantees that the nominal capacity remains excellently against severish cold climates, operating fluently in heating even before extreme temperatures up to -25 ° C abroad.
Verified technical characteristics (WH-WXG30ME8 + WH-CME8L)
Thermal performance supplied
HEAT NOMINAL POWER (A + 7 ° C, W35 ° C): 30.00 kW
Heating efficiency (W35): Energy label A +++
Heating efficiency (W55): A ++ energy label
Maximum temperature of drive (heat): 75 ° C (range 20-75 ° C)
Output temperature (cold): 5 ° C to 20 ° C
Sterilization of DHW without resistance: Up to 65 ° C direct
Mechanical specifications and installation
Dimensions Outdoor Unit (Alxanxpr): 1520 x 1200 x 430 mm
Internal control module: WH-CME8L (wall installation)
Gas Refrigerant Gas Natural: R290 (propane) / 1,77 kg
Sonora power emission (heat): 57 dB (A)
Outdoor operation range (heat): -25 ° C A + 35 ° C
Recommended electrical disconnector: 30 a
Water pipe connector: 1Πinches thread
Electrical supply from the set: Three-phase, 400V, 50Hz
Vanguard Technologies Series M (30 kW)
âïž Refrigerant Gas Natural ecological R290: The purified propane is the future response to global warming. It has exceptional thermophysical properties with an insignificant PCA of only 3, allowing you to work directly by providing water at 75 ° C drive.
âïž Wh-CME8L internal connectivity module: Designed specifically to optimize network integration at 400V. Centralizes the control terminals, unifies the synchronization of the three-phase electronic logics and facilitates the technical interconnection in a highly accessible and clean interconnection.
âïž Rolling professional phases: When working at three-phase tensions, the large electrical charge required by the Inverter compressor is distributed symmetrically between the three general lines, avoiding imbalances, overloads by line and voltage drops in the building.
âïž Structure of soundproofing: Despite its massive power of 30 kW, it incorporates a double sound insulation chassis that mitigates mechanical frequencies, setting the outer sound power into silent 57 dB (A).

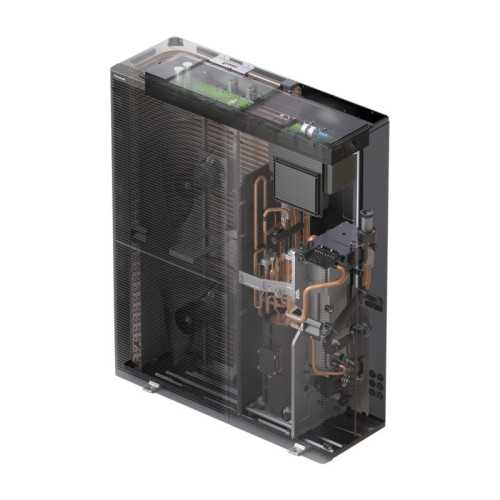

âïž Hydraulic premium of great flow: It houses a smart variable-speed-speed hydronic pump adapted to large water flows, high-retention magnetic water filter to avoid the accumulation of ferrous sludge and built-in expansion vessel.
Frequently asked questions
What function does the WH-CME8L control module meet exactly?
The WH-CME8L module is an internal wall component that centralizes the three-phase electrical connections, communication logics and the electronic control gateway of the heat pump. When we are located in a mural way, simplify and clean the installation, speeding up maintenance tasks without the need to install bulky elements that are useful meters on the ground.
Is this 30 kW model compatible with conventional high temperature radiators?
Yes, excellently. Thanks to the thermodynamic behavior of Natural Gas R290, the equipment drives heating water directly up to 75 ° C without requiring the support of secondary electrical resistances. This is qualified as the ideal machine to replace voluminous and inefficient fossil boilers by feeding the classic radiator network of the building with the massive flow that requires a complex installation.
Is the manipulation of refrigerant gases necessary inside the building?
No. As it is a compact monobloc architecture for exterior, the entire cooling cycle comes hermetically sealed and verified from the factory. The approved technician performs the installation by exclusively connecting ordinary water pipes towards the internal network, increasing security and streamlining the work by not requiring F-gas gas certificates inside the living rooms.
Do you need technical advice for your large-scale project?
On https://tualmacendelclima.com/en/ we are official certified partners of Panasonic. Our engineering department is at your complete disposition to perform thermal load studies, design multifunctional hydraulic schemes or help you integrate WH-CME8L internal module into your three-phase network. Enjoy 5 years warranty in the compressor and maximum professional backing.
Call 623 541 934
WH-WXG30ME8_WH-CME8L
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R290
- Control
- WH-CME8L Module
- Electrical supply
- TrifĂĄsica
- COP
- 4,40
- Scop (warm weather)
- 3,95
- EER
- 3,61
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 75
- Power Nominal heat (W)
- 30.000
- Heat consumption (W)
- 6.818
- Nominal cold power (W)
- 15.000
- Cold consumption (W)
- 4.140
- Energy efficiency
- A++
- WiFi
- Incluido
- High (mm)
- 1.645
- Width (mm)
- 1.500
- Background (mm)
- 460
- Weight (kg)
- 240
