Compact technology, maximum performance
The air pump airplane Panasonic Aquarea WH-MDC07J3E5-1 Of 7 kW is the definitive intelligent solution to provide heating, refrigeration and sanitary hot water in medium-sized single-family homes or residential reform projects. This system stands out for an insurmountable seasonal efficiency with a scop of 4,90 At low temperature, getting reducing the impact on the electricity bill from the first day. By integrating all the hydraulics into a single outer compact unit, it optimizes the space of your home by eliminating the need to install voluminous interior units.
7,00 kW heating A +++ Scop 4.90
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

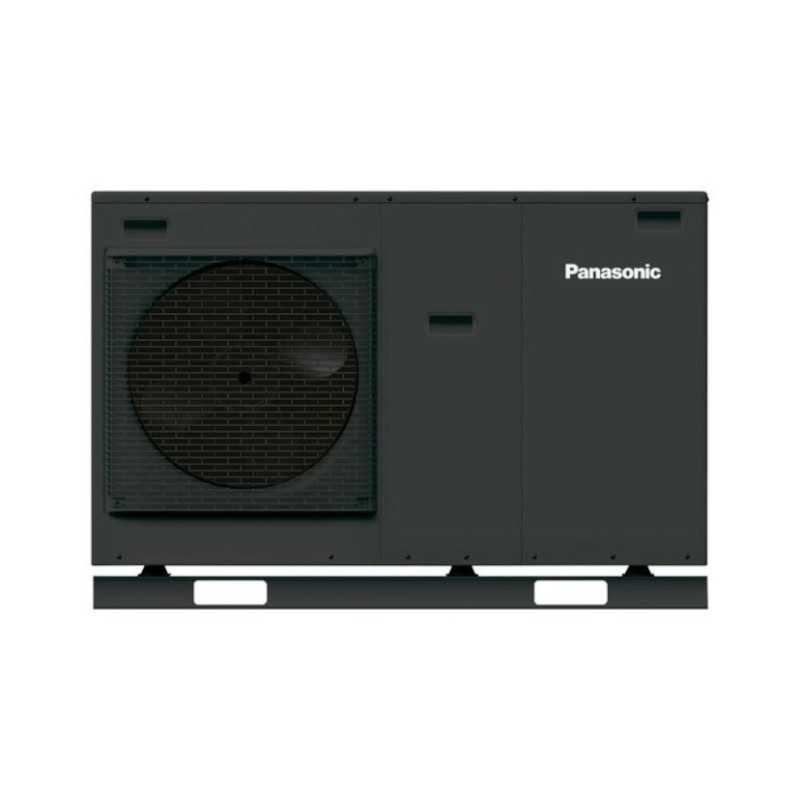

Aerotermia Monobloc WH-MDC07J3E5-1 Panasonic Aquarea pump heat R32
Referencia: WH-MDC07J3E5-1
âŹ3,292.10
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Compact technology, maximum performance
The air pump airplane Panasonic Aquarea WH-MDC07J3E5-1 Of 7 kW is the definitive intelligent solution to provide heating, refrigeration and sanitary hot water in medium-sized single-family homes or residential reform projects. This system stands out for an insurmountable seasonal efficiency with a scop of 4,90 At low temperature, getting reducing the impact on the electricity bill from the first day. By integrating all the hydraulics into a single outer compact unit, it optimizes the space of your home by eliminating the need to install voluminous interior units.
7,00 kW heating A +++ Scop 4.90
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
High efficiency monobloc aerothermia | J series single-phase
Panasonic Aquarea High Performance 7kw
Model WH-MDC07J3E5-1: Ecological air conditioning, compact design and maximum versatility.
Superior efficiency for the air conditioning of the future
The Monobloc heat pump Panasonic Aquarea WH-MDC07J3E5-1 It represents the perfect balance between technical innovation and respect for the environment. Equipped with low impact ecological refrigerant R32, this outdoor Unit It is able to provide comfortable heating, efficient air conditioning and hot water with minimal consumption. Your advanced Inverter design allows you to register an extraordinary COP 4,76 in moderate conditions (A7 / W35) and maintain an excellent class energy efficiency label To +++ In heating at low temperature. All this translates into substantial savings compared to fossil conventional thermal systems.
The Aquarea Monobloc range is characterized by a simplified and clean installation approach. By housing the entire hydronistic circuit and the factory sealed cooling abroad, the house is fully protected from the risk of gas leakage. The installer only connects ordinary water pipes from the outside towards the internal heating circuit by underfloor heating, fan coils or low temperature radiators, thus optimizing the time, safety and labor of the assembly.
Full technical sheet WH-MDC07J3E5-1
Energy efficiency (35 ° C / 55 ° C)
Heating power (A + 7 ° C, W35 ° C): 7.00 kW
COP (A + 7 ° C, W35 ° C): 4,76
Heating power (A + 7 ° C, W55 ° C): 7.00 kW
COP (A + 7 ° C, W55 ° C): 2,82
Refrigerator power (A35 ° C, W18 ° C): 7.00 kW
EER (A35 ° C, W18 ° C): 4,73
SCOP medium climate (W35 / W55): 4,90 / 3,32
Energy class (W35 / W55): A +++ / A ++
Installation and electrical components
Dimensions (on. X x pr.): 865 x 1283 x 320 mm
Net weight: 104 kg
Sonora power (heat): 59 dB (A)
Water pipe connector: Inches R1Œ
Electrical support resistance: 3,00 kW (integrated)
Recommended disconnector: 30/15
Minimum section of the cable: 3x2.5 / 3x1.5 mmÂČ
Electrical supply: Single-phase
Exclusive technologies of Panasonic Aquarea
âïž Extreme operating range: Forget the frost. The Aquarea series J series is designed to hold an optimal operating range in heating even before outer temperatures up to -20 ° C and produce water at 60 ° C without support resistance.
âïž Intelligent support resistance: Incorporates serially a 3.00 kW electrical support resistance to act automatically and ensure absolute comfort during exceptional winter cold peaks.
âïž Optional remote control Wi-Fi (CZ-TAW1B): Allows the integration of the intelligent Wi-Fi adapter of Panasonic To regulate the drive temperature, schedule schedules and monitor consumption from your tablet or smartphone.
âïž Full hydraulic monobloc design: Gather a class A water pump variable, magnetic filter, 6-liter expansion cup and integrated flow sensor, releasing useful space inside the house.
Frequently asked questions
What advantages does R32 refrigerant gas offer in this model?
The R32 is a pure energy-efficient coolant that reduces 68% the overall heating potential compared with ancient mixtures such as R410A. This allows you to use a lower gas load (only 1.3 kg on this equipment) and maximize seasonal performance.
How can I manage the production of the production of DHW?
For sanitary hot water management, a three-way switching valve can be installed (PAW-3WYVLV-HW) combined with a special accumulator for Aerotermia, or complement the system by combining it with the new dedicated heat pump for DHW of Panasonic.
Is the handling of fluorinated gases necessary during the assembly?
Not in the house. Being a compact monobloc format, the gas circuit comes completely airtight and preloaded from the factory. The installer only connects ordinary water pipes inward, shortening assembly times.
Do you need technical advice for your project?
In your climate warehouse we have a highly qualified department of engineering. Ask us for calculating your home loads, hydraulic scheme optimization or selection of compatible interacutors.
Call 623 541 934
WH-MDC07J3E5-1
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- COP
- 4,76
- Scop (warm weather)
- 5,75
- EER
- 3,06
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 55
- Power Nominal heat (W)
- 7.000
- Heat consumption (W)
- 1.470
- Nominal cold power (W)
- 7.000
- Cold consumption (W)
- 2.287
- Energy efficiency
- A+++
- WiFi
- Opcional con CZ-TAW1
- High (mm)
- 865
- Width (mm)
- 1283
- Background (mm)
- 320
- Weight (kg)
- 104
