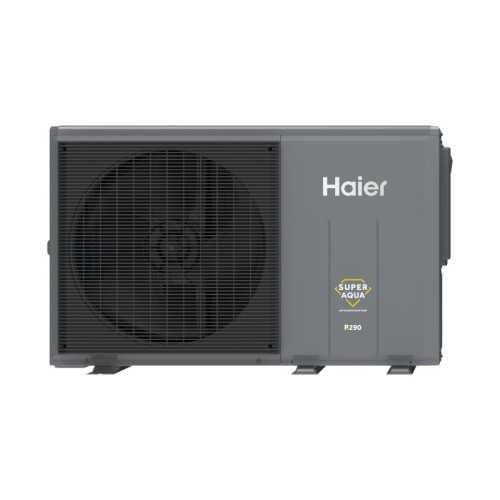

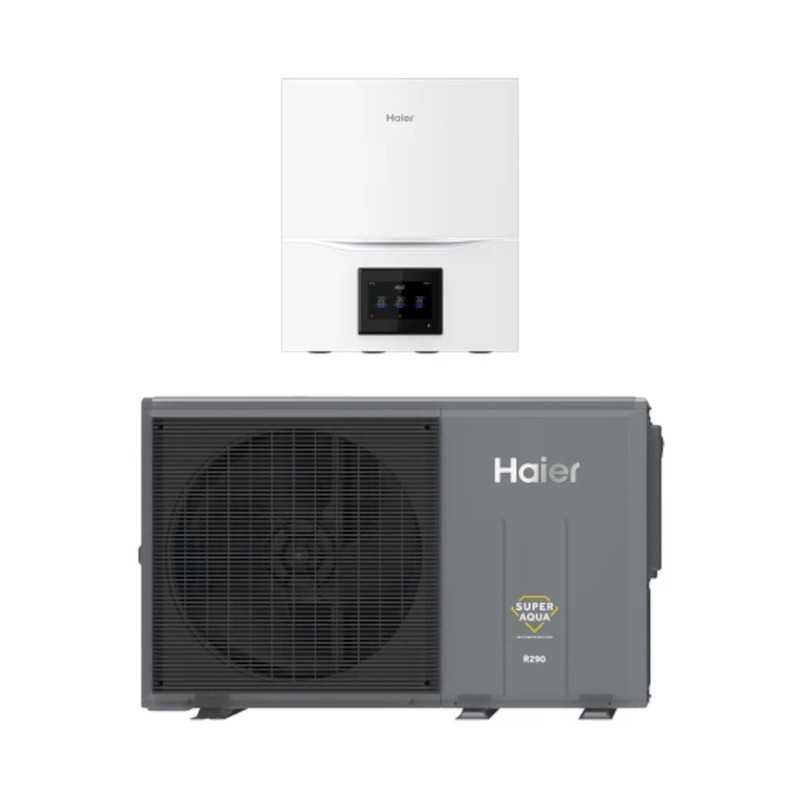

Aerotermia Pump Heat Monobloc Haier AW102Mugha R290

Efficient thermal renewal for great residential needs

The air / water heat pump Haier Monobloc GT AW102Mugha is the ideal solution for the renewal of obsolete heating systems in residential homes that require robust thermal capacity in a single-phase format. This powerful 10 kW inverter equipment unifies all the main compact components for the comfort of housing: Robust heating in winter, refreshing refrigeration in summer through cycle and control investment for the production of sanitary hot water Connecting an external tank. Being configured in a monobloc format, the propane refrigerator circuit is sealed hermetically at the factory. This simplifies the assembly tasks by requiring only hydraulic connections towards the interior of the building, optimizing the installation spaces.

🌿 Propane R-290: higher level performance with natural gas

The Monobloc GT series Haier it founds its excellent efficiency in the use of propane ecological refrigerant R-290. This natural gas stands out for possessing extraordinary thermodynamic properties and practically null global warming potential. Thanks to the optimized design of your DC Inverter Twin Rotary compressor, the AW102Mugha model reaches exceptional performance levels, achieving the maximum seasonal energy rating of ** A +++ ** working at low temperature with a scop of 5.10 and an excellent COP up to 5.10. This translates into a generation greater than 5 kW of thermal energy for each KW of electricity consumed, guaranteeing a strong saving in the light invoices.

🔧 Pre-installed hydraulic components at the factory

In order to streamline the assembly times and minimize the need for space in technical rooms, Haier incorporates inside the own outdoor Unit a complete hydraulic set of factory. The equipment internally has an electronic circulation pump DC Inverter, 4.5-liter expansion vessel, 3 bar safety valve, flow switch and an automatic disainer valve. As standard, a type water filter is also included and for safeguarding the circuit impurities plates exchanger and a high-strength anti-corrosive treatment "Blue End" on its exchange battery.

🌡️ Output water at 80 ° C and maximum stability against severe frost

The combination of propane gas and the Inverter technology of Haier it allows this system to drive hot water at temperatures up to 80 ° C directly, which makes it possible to change traditional gasoil or gas boilers while keeping the conventional iron or aluminum radiators of the property. Its climatic operating limits are leaders in the market, maintaining optimal and uninterrupted operation in heating even under severe winters with temperatures of up to -25 ° C exterior. In summer, the cycle is reversed agile to provide refreshing refreshing through thinning floors or refreshing floor, operating with total stability with outer temperatures up to 48 ° C.

🔌 Integrated Intelligent Control: APP WiFi, Smart Grid and Modbus

The total control of the system is managed intuitively through the digital control of Intelligent HW-WA101DBT cable that is included as standard. This wall touch panel acts as an advanced ambient thermostat, allowing to configure automatic climatic curves and manage up to 2 independent climate control zones. Thanks to its integrated WiFi connectivity, the user can regulate the temperature slogans, establish weekly schedules and consult the detailed energy measurement in real time through the official application of Haier on your smartphone. It also incorporates the integrated Modbus protocol for BMS systems and Smart Grid connectivity to make the most of the production surplus of photovoltaic solar panels.

🎯 Verified technical characteristics (Official data)

All the technical information of the Haier Monobloc GT R-290 detailed below faithfully reflects the manufacturer's specifications, configured for supply with the ATW-A03-N module:
