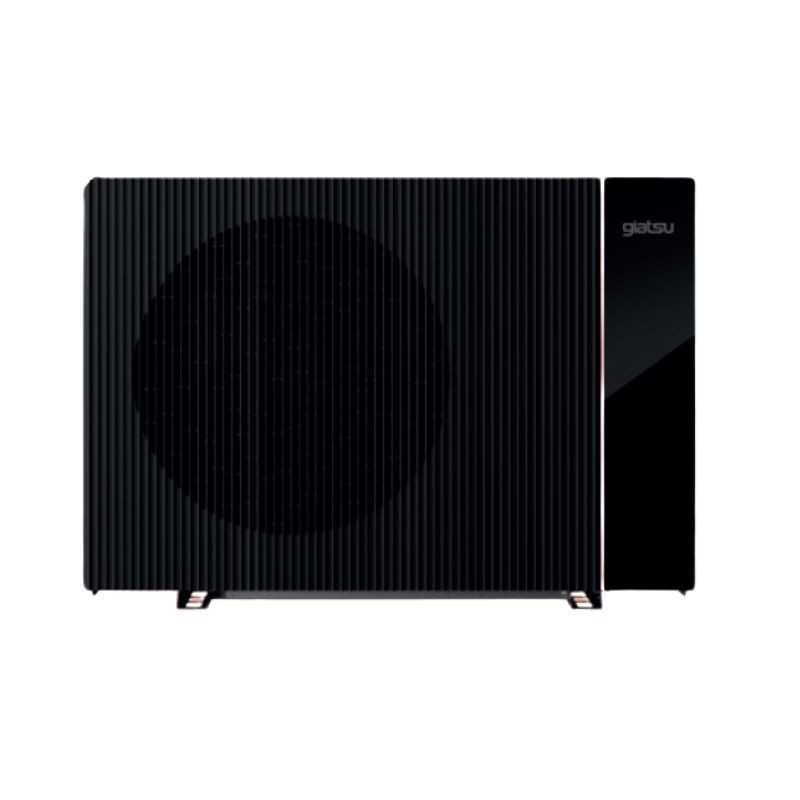

Monobloc Aerotermia Giatsu EVO-THERMAL GIA-HP-MB10MPA R290

Giatsu EVO-THERMAL HOTAKA GIA-HP-MB07MPA R290 (7 kW)

Heat Pump aerotérmica Monobloc 7 kW fed 220-240V single-phase. Refrigerant Gas ecological R290, Twin Compressor Rotary Full DC Inverter, Classification A +++ / A ++, 316L stainless steel exchanger, Blue END protection and IOT control with photovoltaic integration.

Refrigerant Gas Natural R290, Full DC Inverter technology and A +++ energy rating

The Aerotérmica monobloc heat pump Giatsu EVO-MB0MAL HOTAKA GIA-HP-MB07MPA offers an advanced and environmentally friendly solution for residential heating, refrigeration and sanitary hot water production (DHW). Driven by natural coolant R290 with a potential for global warming practically null (GWP 3And a small burden of only 0.57 kg, This equipment incorporates electronic components with improved safety architecture and an independent ventilation channel of the electrical sections. Thanks to your compressor Twin Rotary DC Inverter and to your fan with DC motor, it reaches outstanding seasonal yields of SCOP 4.73 (A +++) at 35 ° C and SCOP 3,56 (A ++) at 55 ° C, Delivering up 7.50 kW of power in heating and 6,20 kW in refrigeration.

Wide range of operation in extreme conditions: heating operation and DHW from -25 ° C to +45 ° C of outside temperature.

Compact monobloc construction, electrical safety and hydraulic versatility

The external unit monobloc GIA-HP-MB07MPA concentrates the entire hermetically sealed refrigerator circuit inside with compact dimensions of 1000 x 688 x 415 mm and a net weight of 85.6 kg, Facilitating an agile assembly without the need for manipulation of gas lines.

Its inner architecture physically separates ventilation ducts with respect to the area of electronic components, guaranteeing the highest operating safety standards with the use of R290 refrigerant under IPX4 certification.

It uses 1-inch threaded hydraulic connections, allowing direct integration on radiant floor installations, fan coils or low and medium temperature radiators.

Technical recommendations for installation and maintenance

For the installation of the Monobloc unit Giatsu GIA-HP-MB07MPA, locate the equipment in an adequately ventilated outer area respecting the service distances recommended by the manufacturer. Connect the 220-240V single-phase power line with its corresponding magnetothermal and ground bypass protection.

Perform the hydraulic connection via 1 "pipe incorporating mesh filter, expansion vessel, safety valve and antifreeze or thermal discharge valve if necessary. Synchronize the LCD IOT panel with the Wi-Fi network and configure The parameters of climatic curve and photovoltaic signal to optimize the consumption of the installation.

Do you want to equip your home with Aerotermia Giatsu?

On https://tualmacendelclima.com/en/ we are specialists in air conditioning, air stopermia and solutions of high energy efficiency. If you need technical assistance, sizing counseling or commercial support on the heat pump Giatsu EVO-THERMAL HOTAKA 7 KW, our specialized team is at your entire disposal.
