Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC09J3E5-1 Of 9 kW it is the definitive solution for air-conditioning single-family homes located in cold weather areas or with high thermal demands. Thanks to exclusive T-CAP technology, this single-phase system keeps intact its nominal capacity of 9.00 kW in heating even under extreme temperatures of -7 ° C without the need to activate electrical support resistances. Its extraordinary seasonal efficiency with a scop of 4,96 Ensures maximum heating, cooling and hot water comfort with minimal electric consumption.
9,00 kW Constant capacity A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

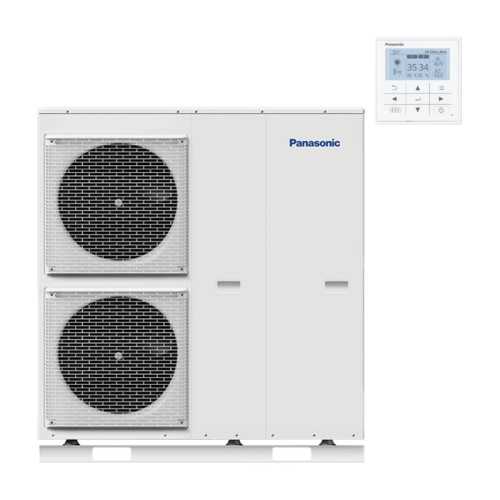

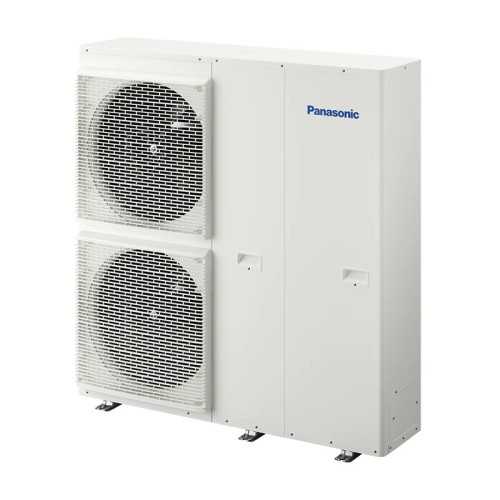

Aerotermia monobloc WH-MXC09J3E5-1 Panasonic Aquarea T-Cap Pump heat R32
Referencia: WH-MXC09J3E5-1
€5,691.61
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC09J3E5-1 Of 9 kW it is the definitive solution for air-conditioning single-family homes located in cold weather areas or with high thermal demands. Thanks to exclusive T-CAP technology, this single-phase system keeps intact its nominal capacity of 9.00 kW in heating even under extreme temperatures of -7 ° C without the need to activate electrical support resistances. Its extraordinary seasonal efficiency with a scop of 4,96 Ensures maximum heating, cooling and hot water comfort with minimal electric consumption.
9,00 kW Constant capacity A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc T-Cap | Generation J single-phase
Panasonic Aquarea T-Cap 9kw R32
Model WH-MXC09J3E5-1: Guaranteed thermal performance without winter power losses.
The definitive solution for rigorous winters
The Monobloc heat pump Panasonic Aquarea T-Cap Wh-MXC09J3E5-1 It represents the highest market standard in residential air conditioning for mountain areas or cold climates. Unlike conventional heat pumps, they lose power as the outer thermometer falls, the innovative technology T-Cap (Total Capacity) of Panasonic It guarantees the full maintenance of its 9 kW of heat power regardless of the outer cold. Combined with ecological refrigerant R32, it provides efficient heating, air conditioning in summer and sanitary hot water all year, recording an exceptional COP of 5,08 and the maximum energy classification To +++ At low temperature.
Its monobloc conception unifies all the mechanical and hydraulic elements in an external rack sealed from the factory. This design not only protects housing against any manipulation or refrigerant leakage in the interior rooms, but completely eliminates the need to install indoor units that are useful. Its technical assembly is notably simplified by requiring only interconnections by direct water pipes to the domestic circuit.
Detailed technical sheet WH-MXC09J3E5-1
Thermal performance supplied
Heat capacity (A + 7 ° C, W35 ° C): 9.00 kW
NOMINAL COP (A + 7 ° C, W35 ° C): 5,08
Heat capacity (A + 7 ° C, W55 ° C): 9.00 kW
NOMINAL COP (A + 7 ° C, W55 ° C): 3,08
Refrigerator capacity (A35 ° C, W7 ° C): 9.00 kW
Nominal EER (A35 ° C, W7 ° C): 3,18
SCOP medium climate (W35 / W55): 4,96 / 3,57
Seasonal energy label (W35): To +++
Technical and hydraulic specifications
Dimensions (on. X x pr.): 1410 x 1283 x 320 mm
Net weight of the team: 140 kg
Maximum sound power: 65 dB (A)
Gas Refrigerant Gas / Load: R32 / 1.60 kg
Nominal water flow (A7 / W35): 25.8 l / min
Water pipe connector: 1¼ inches thread
Integrated electrical resistance: 3,00 kW
Fuse / Cable section: 30 A / 3x4.0 mm²
Featured Technologies Aquarea T-Cap
✔️ High water drive: Advanced capacity to regulate in a stable manner and boost sanitary hot water or direct heating up to 65 ° C of outside temperature.
✔️ Integrated Premium Hydraulics: Equipped with a smart variable-speed-speed hydronic pump (consumption setting of 32 to 173 W) with flow sensor and magnetic filter of serial water.
✔️ Advanced management with optional PCB: It allows to expand the regulation capabilities to efficiently control dual-zone systems, bivalent integration with boilers or Smart Grid direct contacts.
✔️ Compressor guarantee Panasonic: The heart Inverter of the system has a support and coverage of up to 5 years granted directly by the manufacturer for maximum daily tranquility.
Frequently asked questions
What is the differential advantage of a T-CAP system?
The T-CAP equipment incorporates a double refrigerant exchanger that allows to maintain in a whole and constant form the thermal nominal capacity of the system even under severe freezing conditions at -7 ° C or -15 ° C exterior, avoiding falls of winter comfort.
What is needed to integrate the sanitary hot water service?
The Aquarea Monobloc has a native control to manage the hydron circuit DHW. It only requires the incorporation of an external 3-way switch valve (such as the PAW-3WYVLV-HW accessory) coupled to an interaumulator or enameled or stainless water deposit of 200 or 300 liters.
Do you have Internet monitoring options?
Yes, by incorporating the optional accessory CZ-TAW1, the system is connected to the Aquarea Smart Cloud platform, allowing users to schedule schedules, regulate the air conditioning of housing and monitor energy consumption from their mobile.
Do you need personalized technical advice?
As certified official partners Panasonic, our engineering department is at your disposal to optimize schemes, calculate your residential thermal losses or configure compatible inertial deposits.
Call 623 541 934
WH-MXC09J3E5-1
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- COP
- 5,08
- Scop (warm weather)
- 6,47
- EER
- 3,18
- Type
- Frío/Heat
- Maximum temperature Heating (ºC)
- 65
- Power Nominal heat (W)
- 9.000
- Heat consumption (W)
- 1.770
- Nominal cold power (W)
- 9.000
- Cold consumption (W)
- 2.830
- Energy efficiency
- A+++
- WiFi
- Opcional (Consultar modelo)
- High (mm)
- 1.410
- Width (mm)
- 1283
- Background (mm)
- 320
- Weight (kg)
- 140
