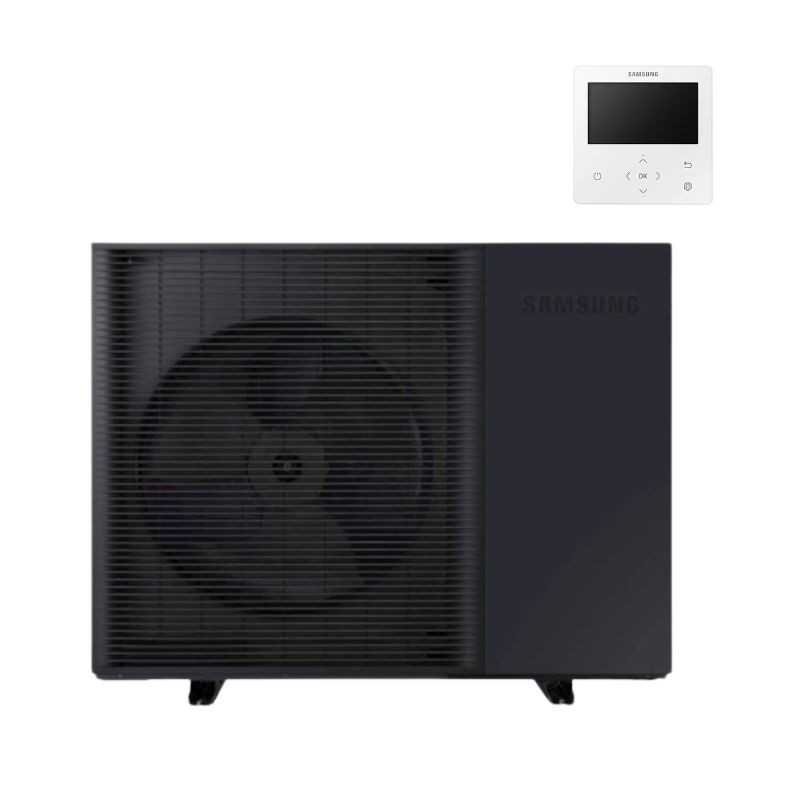

Aerotermia Monobloc AE160CXYBGK / EU EHS Mono R290 16KW Samsung Trif.

Thermal performance (400V)

Nominal power Heating (A7 / W35): 16.00 kW

Nominal power Heating (A7 / W55): 16.00 kW

Nominal consumption Heating (A7 / W35): 3,55 kW

Nominal consumption Heating (A7 / W55): 5,52 kW

Nominal power Cooling (A35 / W18): 14.00 kW

Seasonal efficiency Spaces (35 ° C / 55 ° C): Classification A +++ / A ++

Water outlet temperature (heat): 15 ° C to 75 ° C (maximum range)

Mechanical and electrical specifications

Digital controller included: MWR-WW10N (cable)

Gas Refrigerant Gas Natural / PCA: R290 (propane) / PCA = 3

Standard sound pressure (heat / cold): 51 dB (A) / 51 dB (A)

Water outlet temperature (cold): 5 ° C to 25 ° C

Maximum consumption current: 16.1 a

Advanced features: Control of 2 zones / smart network (Smart Grid)

Electrical supply / Frequency: Three-phase, 380-415V, 50Hz

✔️ Gas Refrigerant Gas Natural R290: The purified propane is the definitive response of the future against global warming. With an insignificant PCA of Solo 3, it offers exceptional thermodynamic properties to operate loosely with water at 75 ° C drive.

✔️ Premium driver MWR-WW10N: It is supplied as the operating nucleus of the installation. This intelligent cable control provides a very clear graphical interface, allowing the monitoring of energy consumption and the programming of advanced climatic curves.

✔️ Industrial phase rolling: When connecting to three-phase networks at 400V, it symmetrically distributes the large electrical charge required by the compressor between the three general lines, avoiding overloads per line and voltage drops in the building.

✔️ Integrated hydraulic module: It brings from the factory under the outdoor unit the circulating pump, the hydronic expansion vessel, the flow sensor and the safety valve, minimizing the necessary technical interior space.

✔️ Wi-Fi connectivity series and smartThings: Integrated wireless communication module that allows to link the aerothermia with the SmartThings application to manage the convenient historical comfort and audit remotely from a smartphone or tablet.

Is this three-phase 16 kW system compatible with conventional radiators?

Yes, excellently. Thanks to the thermal behavior of high-pressure natural gas R290, the machine directly reaches a water outlet of up to 75 ° C without activating support resistance. This allows to replace voluminous fossil boilers while maintaining intact aluminum pre-existing radiators or iron iron.

What functions does the MWR-WW10N controller include included in this set?

The MWR-WW10N knob allows to thoroughly regulate two independent air conditioning zones with different temperature claims (for example, radiators and radiant soil), to script scripts and audit the cumulative electrical consumption of the equipment.

Is the use of gas R290 (propane) in a residential or commercial installation is safe?

Fully safe. Being a purely monobloc architecture outside, the entire propane refrigerating cycle is sealed from the factory of Samsung and it is located outdoors. The unit incorporates factory security mitigation systems and the installer performs only ordinary water pipe connections towards the habitable interior.
