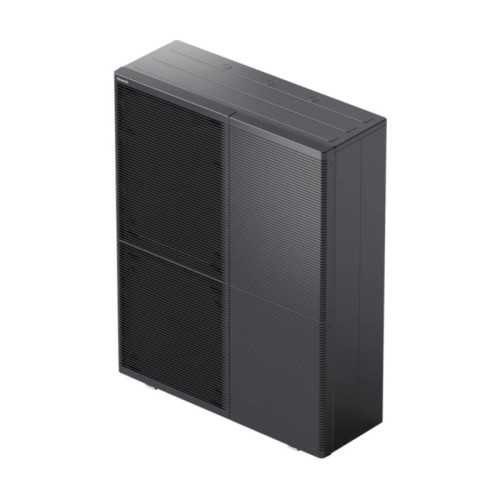

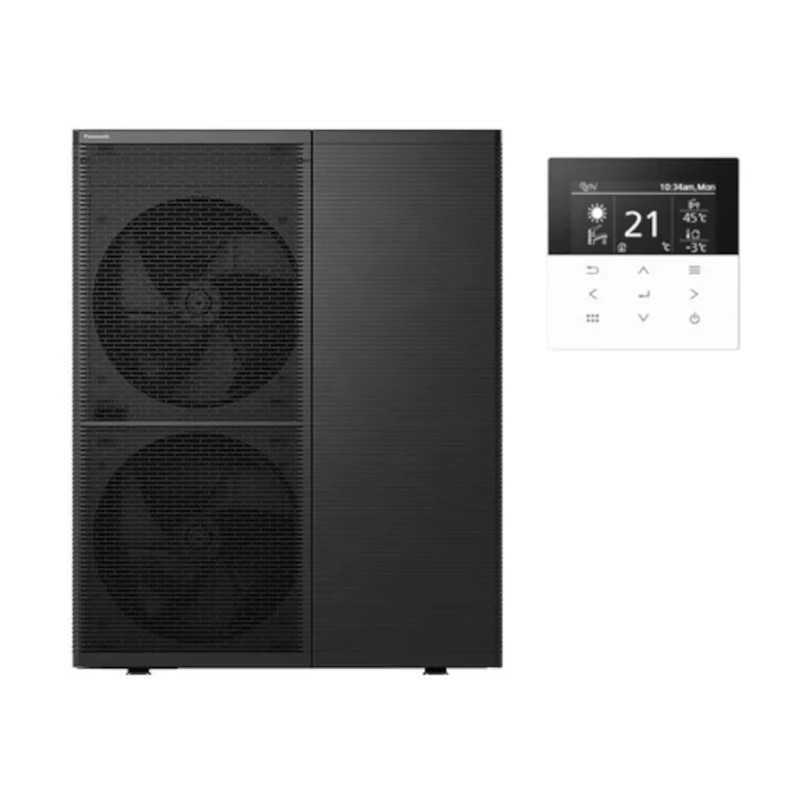

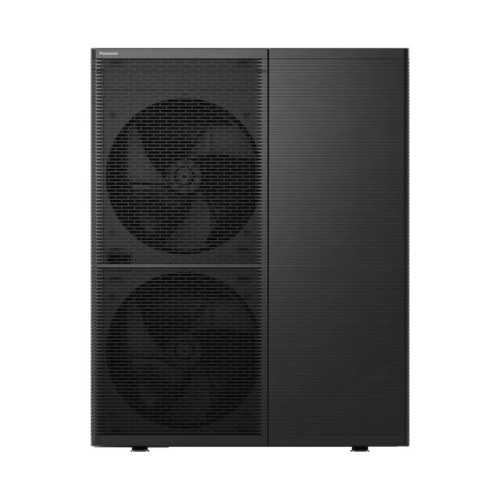

Aerotermia Monobloc WH-WXG09ME8 with CZ-RTW2TAW1C control Panasonic R290

Performance and seasonal efficiency

Nominal power (A + 7 ° C, W35 ° C): 9.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 5,23

Refrigerator capacity (A35 ° C, W7 ° C): 8,20 kW

Nominal EER (A35 ° C, W7 ° C): 2,82

SCOP temperate climate (W35): 5.00 (Tag A +++)

SCOP Warm weather (W35): 6,33

SCOP Cold Climate (W35): 4,45

SCOP temperate climate (W55): 3.50 (Tag A ++)

Mechanical specifications and installation

Dimensions (on. X x pr.): 1520 x 1200 x 430 mm

Net weight in vacuum: 163 kg

Sounding power of operation: 52 dB (A)

Gas Refrigerant Gas Natural / Load: R290 / 1,78 kg

Hydraulic water flow (Δt = 5): 25.8 l / min

Maximum impulse temperature: 75 ° C

Recommended electrical disconnector: 30 a

Minimum section of wiring: 3 x 4.0 mm² (three-phase 400V)

✔️ Refrigerant Gas Natural R290 (propane): A firm step towards sustainability. With a global heating potential (PCA) insignificant, it is the refrigerant of the future that offers the highest thermodynamic performance without environmental restrictions or tax rates.

✔️ Super silent chassis of comfort: Developed with an advanced acoustic insulation architecture that cushions the frequencies of the Inverter compressor, reducing the sound emissions at only 52 dB (A) for an ideal integration in residential environments.

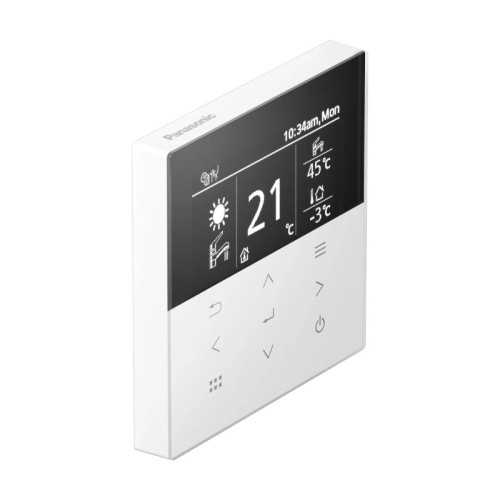

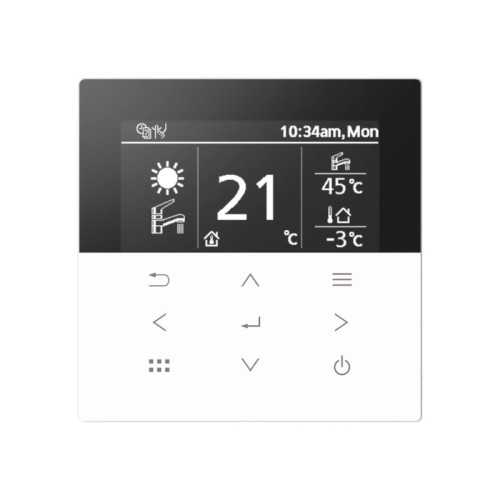

✔️ Premium control CZ-RTW2TAW1C included: Digital remote control with cable that acts as an advanced management control unit. It provides an extremely intuitive tactile interface, precise readings of historical consumption and integrated Wi-Fi connectivity.

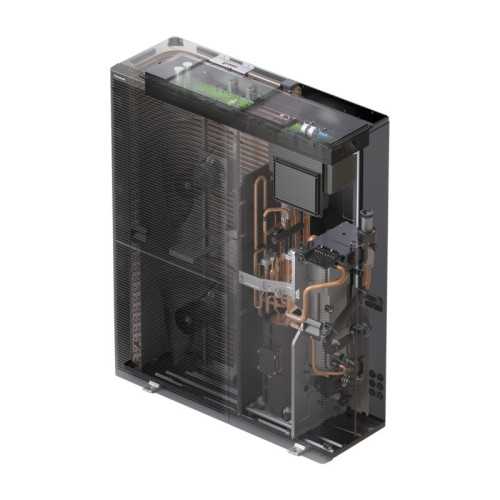

✔️ Hydraulic Advanced Inverter: It includes as standard an optimized expansion cup, high-retention magnetic water filter to protect the exchanger and a smart-to-class A hydraulic pump with integrated flow sensor.

✔️ Solar compatibility and flexibility of DHW: Optional intelligent synchronization with solar thermal or photovoltaic kits to produce hot water, taking directly the energy of the Sun directly, drastically minimizing the electricity invoice.

Is this three-phase 9 kW equipment compatible with an old installation of radiators?

Yes, totally. When using high pressure R290 refrigerant, the machine directly reaches a water outlet temperature of up to 75 ° C without the need for secondary electrical resistances. This allows substituting traditional gas or diesel boilers by feeding classic radiators with the required temperature without meanting comfort.

How does the T-CAP system respond to winter frost?

Traditional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. The Aquarea T-CAP models of Panasonic they incorporate an advanced injection into the compressor that allows them to keep the 9.00 kW of nominal capacity at low outer temperatures, effectively operating up to -28 ° C and ensuring constant heating without performance falls.

What advantages does the monobloc format of the M series?

Being a unit in exterior monobloc format, the entire refrigeration cycle comes hermetically sealed factory. The approved installer performs only water connections towards the interior of the building, which simplifies the installation and avoids the need to have F-gas refrigerated certificates inside the house.
