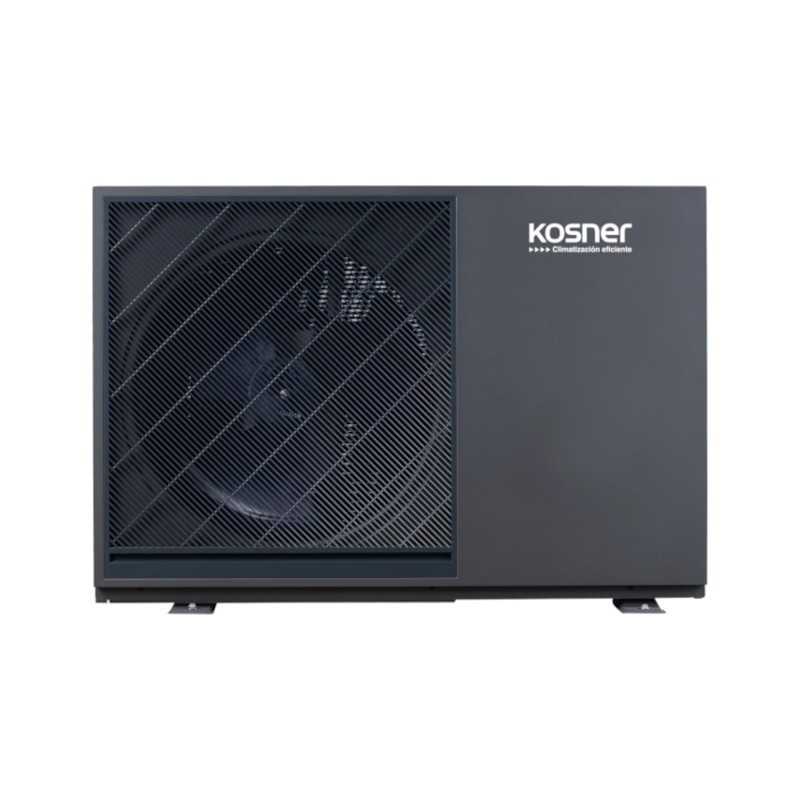

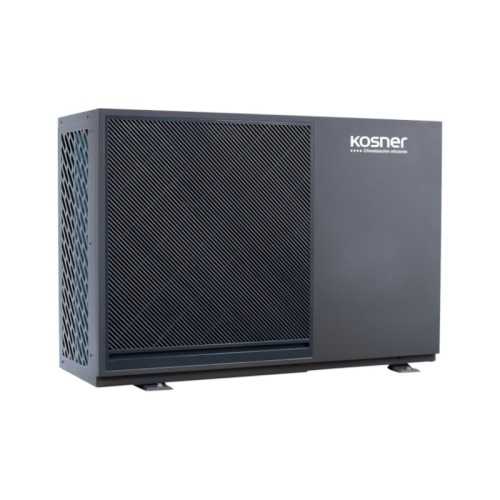

Aerotermia Pump Heat Monobloc Kosner Aquaris D HT 04 R-290

High temperature comfort at hand

The new Aerotéermal Heat pump Kosner Aquaris D HT 04 Monobloc establishes a new milestone in the residential air conditioning sector, offering a high-temperature inverter solution developed to replace traditional generators or provide service in demanding new works. This powerful 4 kW model efficiently combines heating cycles, refrigeration and healthy water production (DHW). Being configured in a compact monobloc format, it completely dispenses with the manipulation of indoor refrigeration lines, simplifying the technical work and ensuring that all heat is transmitted to the hydraulic circuit directly.

🌿 Refrigerant Gas Natural propane R-290 and Maximum energy certification

The great differential value of the Kosner Aquaris D HT 04 lies in its design based on the natural refrigerant propane R-290, an ecological alternative of very low environmental impact. Thanks to the magnificent thermodynamic properties of this gas, the system optimizes its mechanical benefits to achieve the maximum seasonal energy classification of A +++ / A +++ (W35 ° C / W55 ° C). With a Seer of up to 7.12 (with water at 18 ° C) and a 5.20 scop (with water at 35 ° C), this equipment minimizes the daily electricity consumption of your home, freeing you from fluctuations from energy rates while reducing your footprint of Carbon.

🔧 Integrated hydraulic architecture and ease of installation

The Aquaris D HT range has been meticulously developed to streamline the work of professionals installers abroad. Your self-supporting chassis hosts a factory complete hydraulic set that includes as standard: an electronic water pump variable, 6-liter expansion vessel, 3 bar safety valve, water flow switch, integrated water pressure sensor and a Refrigerant / water separator with automatic disappointing valve. Additionally, the basic supply incorporates rubber antivibratories for its lower base and a type water filter and to safeguard the impurities plaque exchanger. The electrical table is fully folding to ensure clean technical access to all internal components.

🌡️ Water drive at 75 ° C and resistance to severe climates

It is no longer necessary to change your ancient aluminum radiators or cast iron to go to the aerothermia. The Kosner Aquaris D HT 04 reaches water outlet temperatures up to 75 ° C in heating without the need to activate expensive electrical support resistances. The operational ranges of the cycle are extraordinary: in heating mode and production of DHW it maintains impeccable operability even with extreme winter temperatures below -20 ° C outer. In refrigeration mode at summer time, the system reverses its compression cycle efficiently to air-conditioning by refreshing soil or Fancoils up to 43 ° C of outside temperature.

🔌 Completely controlled management: series wifi and modbus

Connectivity is a priority in the new range of Kosner. Each unit includes as standard and loose the KDA-120 intelligent wall driver together with a 20 meter length communication cable. This intuitive touch screen control exerts centralized control functions and has integrated WiFi connectivity to link the equipment to the exclusive application of Kosner on any mobile device. From the app, the user can perform advanced weekly programming, change modes and visualize the detailed energy measurement of the equipment in real time. For applications in residential or industrial home automation, the Modbus Communication Protocol, facilitating integration into centralized automation systems.

🔇 Superior acoustic comfort using antivibratory technology

The reduction of the sound level has been key in the design of this equipment to ensure tranquility in residential areas. The Kosner Aquaris D HT 04 has an acoustically optimized fan and metallic layers combined with thermal and acoustic insulation cotton around the compressor. The compression engine rests on vibration reduce and double-layer rubber antivibratory blocks. Thanks to this comprehensive mechanical insulation, the unit registers a sound pressure of only 40 dB (A) to 1 meter, also providing two additional silent operating modes fully programmable by schedule.

🎯 Verified technical characteristics (Official data)

The technical data detailed in the following table faithfully reflect the official specifications of the manufacturer Kosner for the Aquaris D HT 04 model, extracted from the official technical reference catalog "Monobloc aquaris md Kosner R32.pdf " in its section of the HT range:
