Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC12J9E8-1 12 kW with three-phase feeding is the definitive technological response for balanced comfort in large single-family rooms located in severe winter areas. Thanks to the innovative T-CAP architecture, this system distributes the electrical consumption symmetrically between the three phases and preserves its nominal capacity of 12.00 kW in heating at temperatures up to -7 ° C without requiring the support of Electrical resistances Its exceptional seasonal performance with a scop of 4,96 Ensures maximum heating savings, air conditioning and hot water.
12.00 kW Constant capacity Three-phase A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

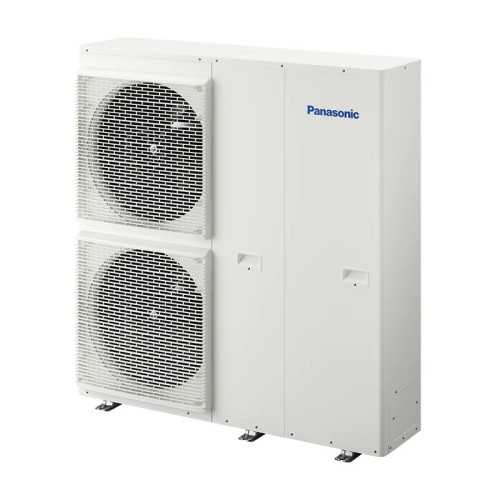

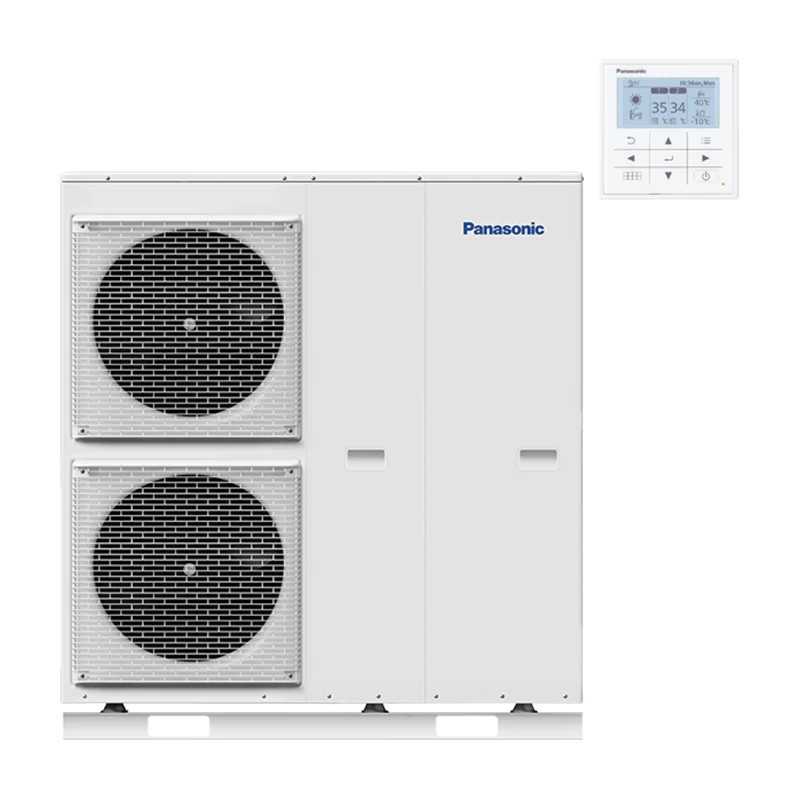

Aerotermia monobloc WH-MXC12J9E8-1 Panasonic Aquarea T-Cap Pump heat R32
Referencia: WH-MXC12J9E8-1
€7,149.37
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC12J9E8-1 12 kW with three-phase feeding is the definitive technological response for balanced comfort in large single-family rooms located in severe winter areas. Thanks to the innovative T-CAP architecture, this system distributes the electrical consumption symmetrically between the three phases and preserves its nominal capacity of 12.00 kW in heating at temperatures up to -7 ° C without requiring the support of Electrical resistances Its exceptional seasonal performance with a scop of 4,96 Ensures maximum heating savings, air conditioning and hot water.
12.00 kW Constant capacity Three-phase A +++ Scop 4.96
The most efficient and powerful air stop solution for your home in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc T-Cap | Three-phase j generation
Panasonic Aquarea T-Cap 12kw Three-phase
Model WH-MXC12J9E8-1: Maximum electric stability and guaranteed power against frost.
Network stability and uninterrupted heating power
The Monobloc heat pump Panasonic Aquarea T-Cap Wh-MXC12J9E8-1 it is established as the professional hydronic system ideal for large residential or commercial projects unified under three-phase electric networks at 400V. Unlike traditional air stopermia systems that reduce their thermal delivery as the external thermometer, exclusive technology descends T-Cap (Total Capacity) of Panasonic ensures the unchanged maintenance of its 12 kW of heat power in adverse conditions. Using high efficiency ecological gas R32, this equipment provides continuous heating, summer air conditioning and sanitary hot water with an excellent COP 4,80 and the maximum energy certification To +++ at low temperature.
As set under a purely monobloc structure, all refrigeration and hydraulic components are hermetically integrated into the outer chassis. Its three-phase feeding symmetrically distributes the electric current demanded by the Inverter compressor, protecting the lines of the property versus point overloads. It does not consume space within the housing or requires fluorine gas refrigeration interconnections, completing the assembly by simply by coupling direct water pipes towards the interior of the property.
Detailed technical sheet WH-MXC12J9E8-1
Energy efficiency (35 ° C / 55 ° C)
Heat capacity (A + 7 ° C, W35 ° C): 12.00 kW
NOMINAL COP (A + 7 ° C, W35 ° C): 4,80
Heat capacity (A + 7 ° C, W55 ° C): 12.00 kW
NOMINAL COP (A + 7 ° C, W55 ° C): 2,72
Refrigerator capacity (A35 ° C, W7 ° C): 10.00 kW
Nominal EER (A35 ° C, W7 ° C): 2,81
SCOP medium climate (W35 / W55): 4,96 / 3,57
Seasonal energy label (W35): To +++
Technical and hydraulic specifications
Dimensions (on. X x pr.): 1410 x 1283 x 320 mm
Net weight of the team: 151 kg
Maximum sound power (heat): 65 dB (A)
Gas Refrigerant Gas / Load: R32 / 1,75 kg
Nominal water flow (A7 / W35): 34,4 l / min
Water pipe connector: 1¼ inches thread
Integrated electrical resistance: 9,00 kW (three-phase)
Electrical supply: Three-phase, 400V, 50Hz
Featured Technologies Aquarea T-Cap
✔️ High temperature water drive: Advanced capacity to regulate stably and promote heating water directly up to 65 ° C, facilitating optimal adaptation to efficient radiator systems or mixed domestic networks.
✔️ Advanced integrated hydraulics: Factory, a smart-type variable speed recirculation pump, flow sensor with digital flowmeter and a magnetic water filter of high retention.
✔️ Three-phase support resistance of 9KW: It includes a powerful 8.00 kW integrated electric heating module set as standard to act in a stepped and automated way as backing or support under critical meteorological conditions.
✔️ Management with advanced advanced PCB: It offers the option of coupling an internal electronic card to advance advanced dual zone schemes, bivalent heating systems or smart grid controls.
Frequently asked questions
What benefit does T-CAP technology provide in a 12 kW three-phase model?
Conventional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. The T-CAP models Panasonic they incorporate an advanced logic into the compressor that allows to maintain the 12.00 kW of the nominal capacity constant at -7 ° C or -15 ° C exterior, guaranteeing that comfort in the housing does not suffer variations in the most icy days without overloading Power lines thanks to three-phase feeding.
How is the Sanitary Hot Water Service integrated (DHW)?
The Aquarea Monobloc has a native electronic control unit to coordinate the domestic circuit of DHW. It is only required to add an external three-way switch valve (such as the official PAW-3WYVLV-HW accessory) linked to a high efficiency compatible accumulator or interactulator of 200 or 300 liters.
Do you require complementary gas recharges during assembly?
No. As it is a compact closed circuit chassis, the outdoor Unit it contains a semetic preload of 1.75 kg of R32 gas sealed directly at the manufacturer's production facilities. The installer performs the connections together purely water pipes on the outside of the residence.
Do you need technical advice for your project?
As certified official partners Panasonic, our engineering department is at your disposal to optimize schemes, calculate your residential thermal losses or configure compatible inertial deposits.
Call 623 541 934
WH-MXC12J9E8-1
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- COP
- 4,74
- Scop (warm weather)
- 5,86
- EER
- 2,81
- Type
- Frío/Heat
- Maximum temperature Heating (ºC)
- 65
- Power Nominal heat (W)
- 12.000
- Heat consumption (W)
- 2.530
- Nominal cold power (W)
- 10.000
- Cold consumption (W)
- 3.560
- Energy efficiency
- A+++
- WiFi
- Opcional (Consultar modelo)
- High (mm)
- 1.410
- Width (mm)
- 1283
- Background (mm)
- 320
- Weight (kg)
- 151
