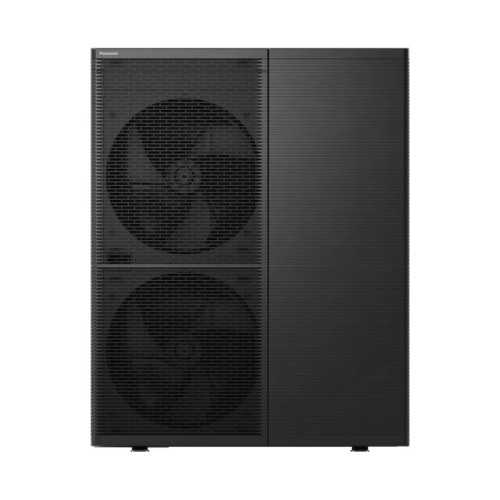

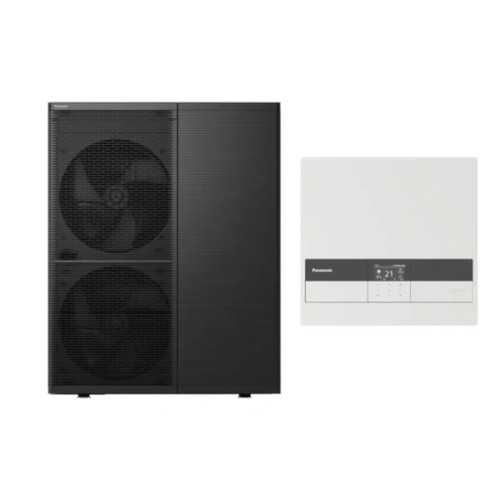

Aerotermia monobloc WH-WXG12ME5 with WH-CME5 control module Panasonic R290

Energy efficiency (35 ° C / 55 ° C)

Nominal power (A + 7 ° C, W35 ° C): 12.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 4,92

Nominal power (A + 7 ° C, W55 ° C): 12.00 kW

NOMINAL COP (A + 7 ° C, W55 ° C): 3,00

Refrigerator capacity (A35 ° C, W7 ° C): 10.00 kW

Nominal EER (A35 ° C, W7 ° C): 2,75

SCOP medium climate (W35): 4.80 (Label A +++)

SCOP medium climate (W55): 3.45 (Tag A ++)

Mechanical specifications and installation

Dimensions Outdoor Unit (Alxanxpr): 1520 x 1200 x 430 mm

Internal control module: WH-CME5 (installation wall)

Net weight Outdoor Unit: 171 kg

Sounding power (exterior): 53 dB (A)

Gas Refrigerant Gas Natural / Load: R290 (propane) / 1,78 kg

Maximum impulse temperature: 75 ° C

Recommended electrical disconnector: 30 a

Electrical supply: Single-phase, 230V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: The purified propane is the future response to global warming. It has exceptional thermophysical properties that allow you to work comfortably with water at 75 ° C drive.

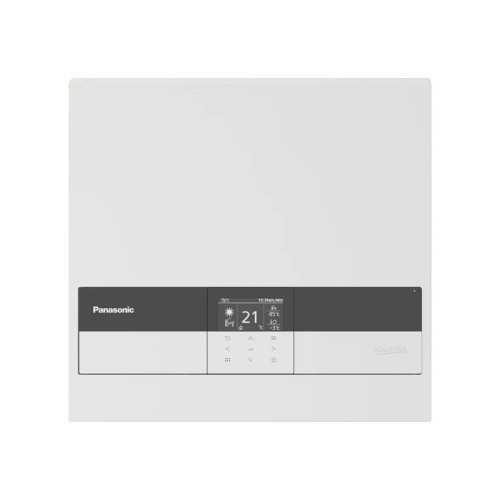

✔️ Internal connectivity module WH-CME5: It acts as the intelligent line of the system indoors. Centralizes the control terminals and communications, offering an extremely accessible technical interface and facilitating the interconnection with domotic catwalks and smart networks.

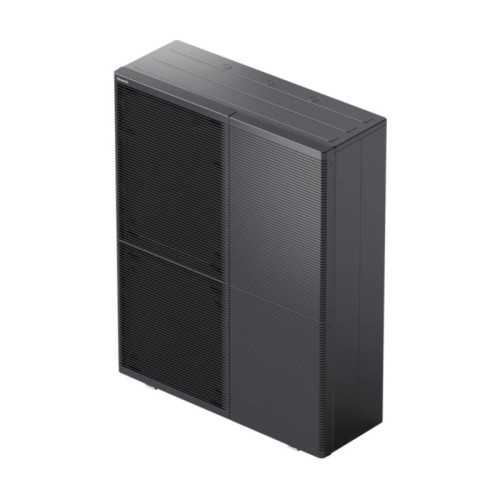

✔️ Super silent chassis of comfort: Developed with an advanced acoustic insulation architecture that cushions the vibrations of the Inverter compressor, lowering external emissions at only 53 dB (A) for an ideal integration without discomfort.

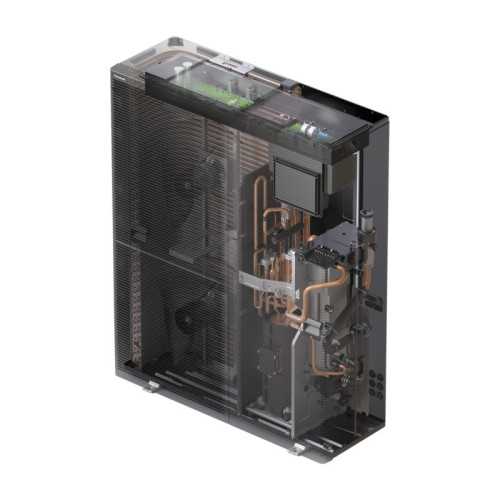

✔️ Hydraulic components integrated abroad: It houses an intelligent type A hydraulic pump with integrated flow sensor, optimized expansion cup and a magnetic water filter that traps ferrous sludge protecting the plaque exchanger.

✔️ Advanced solar compatibility: Automation List to directly be coupled to photovoltaic panel systems or solar thermal kits. It allows to produce sanitary hot water by taking advantage of clean energy surpluses, drastically minimizing the electric bill.

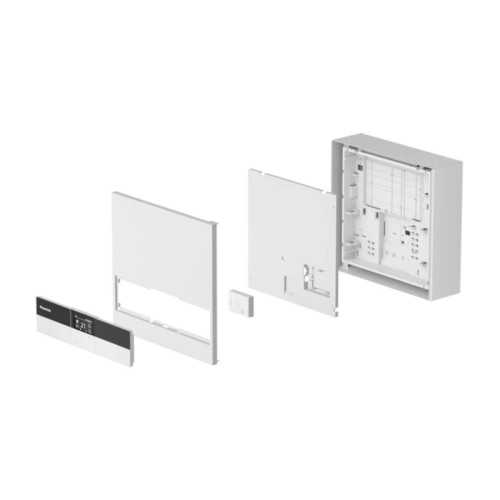

What function does the WH-CME5 control module meet exactly?

The WH-CME5 module is an internal wall component that centralizes the electrical connections, control probes and electronic water pump management logics. When we are located inside, it streamlines maintenance tasks and centralizes Wi-Fi and wired communications without the need to install bulky elements that consume living space on the ground.

Is this 12 kW single-phase system compatible with a network of traditional radiators?

Yes, perfectly. When using high pressure R290 refrigerant, the machine directly reaches a water outlet temperature of up to 75 ° C without activating support resistance. This allows to directly replace old fossil fuel boilers while maintaining pre-existing radiators with total thermal comfort.

How does T-CAP technology respond against extreme winter frosts?

Traditional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. The Aquarea T-CAP models of Panasonic 12 kW incorporate an advanced injection of refrigerant into the compressor that allows them to keep the 12.00 kW of nominal capacity at low outer temperatures, operating effective up to -28 ° C and ensuring constant heating without Performance falls.
