Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC16J9E8-1 Of 16 kW with three-phase feeding is the definitive technological response to solve the maximum thermal demands on large areas or single-family areas with severe winters. Thanks to the innovative T-CAP architecture, this high-capacity system balances electric consumption symmetrically between the three phases and preserves its nominal power of 16.00 kW in heating at temperatures up to -7 ° C without needing to activate Electric supports. Its exceptional seasonal performance ensures maximum savings in heating, air conditioning and hot water.
16,00 kW Constant capacity Three-phase A +++ maximum scop
The most powerful and efficient air stop solution for large projects in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

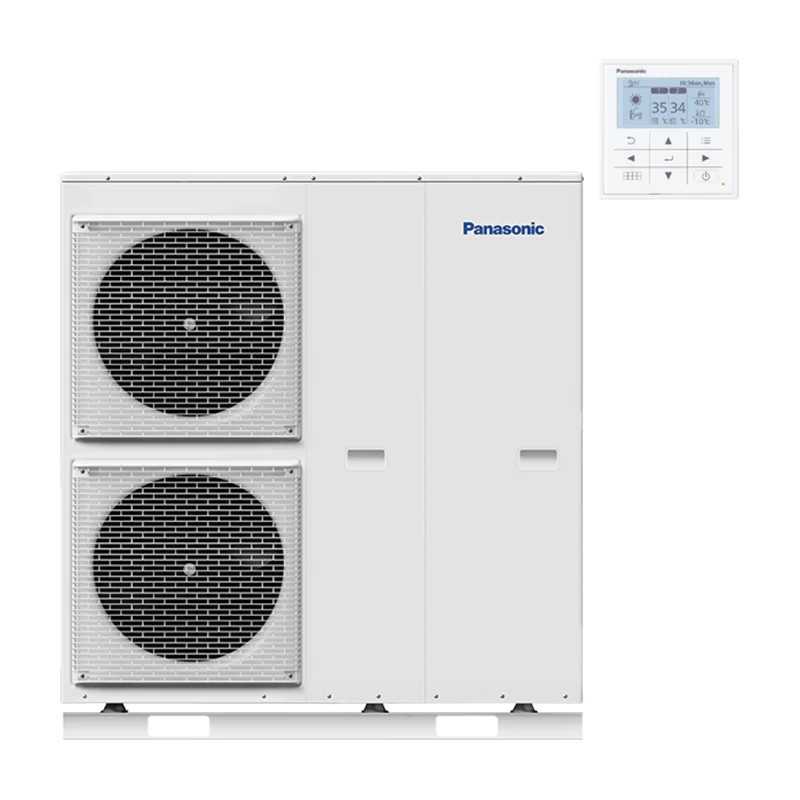

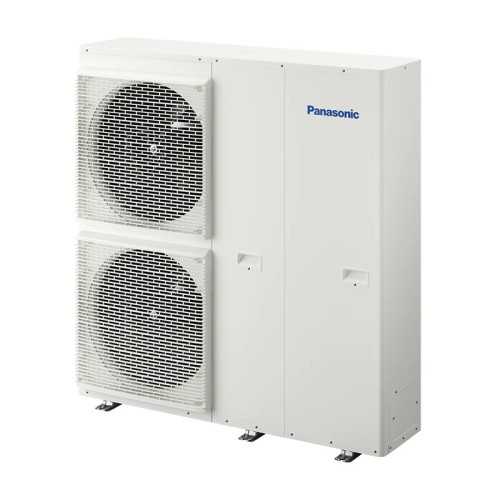

Aerotermia monobloc WH-MXC16J9E8-1 Panasonic Aquarea T-Cap Pump heat R32
Referencia: WH-MXC16J9E8-1
€8,396.57
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Constant power, comfort in extreme climates
The air pump airplane Panasonic Aquarea T-Cap Wh-MXC16J9E8-1 Of 16 kW with three-phase feeding is the definitive technological response to solve the maximum thermal demands on large areas or single-family areas with severe winters. Thanks to the innovative T-CAP architecture, this high-capacity system balances electric consumption symmetrically between the three phases and preserves its nominal power of 16.00 kW in heating at temperatures up to -7 ° C without needing to activate Electric supports. Its exceptional seasonal performance ensures maximum savings in heating, air conditioning and hot water.
16,00 kW Constant capacity Three-phase A +++ maximum scop
The most powerful and efficient air stop solution for large projects in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc T-Cap | Three-phase j generation
Panasonic Aquarea T-Cap 16kw Three-phase
Model WH-MXC16J9E8-1: Maximum thermal capacity and perfect stability in Networks of 400V.
Maximum power without losses against rigorous frost
The Monobloc heat pump Panasonic Aquarea T-Cap Wh-MXC16J9E8-1 it is established as the final power standard for large residential projects or commercial installations integrated in three-phase electric networks at 400V. Unlike conventional heat pumps that reduce their thermal delivery drastically as the outer thermometer, the exclusive technology descends T-Cap (Total Capacity) of Panasonic it guarantees that the system maintains its 16 kW of heat power in very adverse weather conditions. Using high efficiency ecological gas R32, provides continuous heating, summer air conditioning and hot water with highly optimized consumption and maximum seasonal energy label To +++ at low temperature.
When structuring under a purely monobloc conception, the entire mechanical and hydraulic circuit is hermetically integrated from the factory in the outdoor Unit. This completely protects the housing against the use of refrigerant lines in interior building stays, preventing any handling or risk of leakage in domestic spaces and free of useful square meters. Its three-phase diet symmetrically distributes the current intensity demanded by the Inverter compressor, protecting the general lines against overloads and completing the assembly simply by direct water connections.
Detailed technical sheet WH-MXC16J9E8-1
Energy efficiency (35 ° C / 55 ° C)
Heat capacity (A + 7 ° C, W35 ° C): 16.00 kW
NOMINAL COP (A + 7 ° C, W35 ° C): 4,28
Heat capacity (A + 7 ° C, W55 ° C): 16.00 kW
NOMINAL COP (A + 7 ° C, W55 ° C): 2,49
Refrigerator capacity (A35 ° C, W7 ° C): 12,20 kW
Nominal EER (A35 ° C, W7 ° C): 2,56
SCOP medium climate (W35): 4,51
Seasonal energy label (W35): To +++
Technical and hydraulic specifications
Dimensions (on. X x pr.): 1410 x 1283 x 320 mm
Net weight of the team: 151 kg
Maximum sound power (heat): 66 dB (A)
Gas Refrigerant Gas / Load: R32 / 1,75 kg
Nominal water flow (A7 / W35): 45.9 l / min
Water pipe connector: 1¼ inches thread
Integrated electrical resistance: 9,00 kW (three-phase)
Electrical supply: Three-phase, 400V, 50Hz
Featured Technologies Aquarea T-Cap
✔️ High water drive: Advanced capacity to regulate stably and promote heating water directly up to 65 ° C, facilitating optimal adaptation to traditional radiator systems or mixed domestic networks.
✔️ Hydraulic premium of great flow: Factory Incorporates a smart variable-speed-speed hydronic pump (consumption setting from 34 to 220 W) with flow sensor, digital flowmeter and rated magnetic water filter.
✔️ Three-phase support resistance of 9KW: It includes a powerful 9.00 kW integrated electric heating module configured to act automatically and staggered as emergency backing or fast defrosting under critical conditions.
✔️ Management with advanced advanced PCB: It offers the option of coupling an internal electronic card to regulate complex double zone schemes, bivalent heating systems or smart grid controls.
Frequently asked questions
What benefit does T-CAP technology provide in a three-phase 16 kW model?
Traditional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. T-CAP models incorporate an additional liquid injection into the compressor that allows to maintain the 16.00 kW of nominal capacity constant at -7 ° C or -15 ° C, guaranteeing stable comfort without resorting to electrical support resistances and maintaining A balanced distribution of phases.
How is the Sanitary Hot Water Service integrated (DHW)?
The Aquarea Monobloc has a native electronic control unit to coordinate the circuit of DHW. It is only required to add an external three-way switch valve (such as the official PAW-3WYVLV-HW accessory) linked to a high-efficiency compatible accumulator or interaumulator of 200 or 300 liters of large volume.
Do you require complementary gas recharges during assembly?
No. As it is a compact closed circuit chassis, the outdoor Unit it contains a semetic preload of 1.75 kg of R32 gas sealed directly at the manufacturer's production facilities. The installer performs the connections together purely water pipes on the outside of the residence.
Do you need technical advice for your project?
As certified official partners Panasonic, our engineering department is at your disposal to optimize schemes, calculate your residential thermal losses or configure compatible inertial deposits.
Call 623 541 934
WH-MXC16J9E8-1
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- COP
- 4,28
- Scop (warm weather)
- 5,86
- EER
- 2,56
- Type
- Frío/Heat
- Maximum temperature Heating (ºC)
- 65
- Power Nominal heat (W)
- 16.000
- Heat consumption (W)
- 3.740
- Nominal cold power (W)
- 12.200
- Cold consumption (W)
- 4.760
- Energy efficiency
- A+++
- WiFi
- Opcional (Consultar modelo)
- High (mm)
- 1.410
- Width (mm)
- 1283
- Background (mm)
- 320
- Weight (kg)
- 164
