Maximum power, insurmountable efficiency
The model LG HM051MRS.UA40 5KW is the perfect solution to optimize comfort in compact homes, newly built floors or single-family homes. With exceptional seasonal performance in low temperature heating that registers a scop of 4,46, it is positioned as one of the most profitable and stable systems of the domestic market. Designed to offer a comprehensive air conditioning, Impulsa Water up to 65 ° C and guarantees an agile and silent operation in any outer space.
5.50 kW Heating (nominal) A +++ Scop 4,46
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

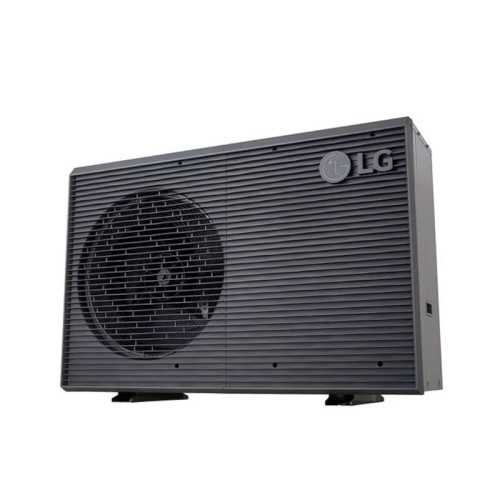

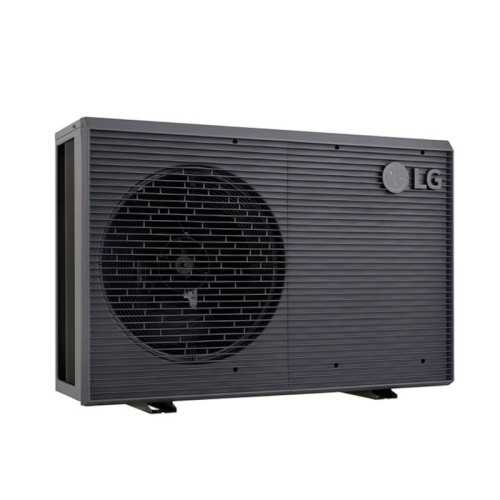

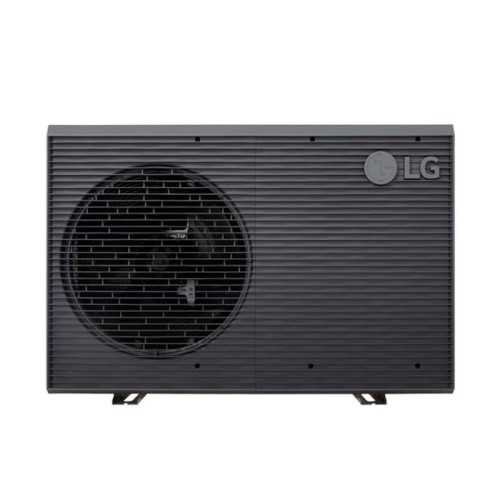

Aerotermia LG HM051MRS.UA40 THERMA V Monobloc S2
Referencia: HM051MRS.UA40
âŹ3,592.19
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Maximum power, insurmountable efficiency
The model LG HM051MRS.UA40 5KW is the perfect solution to optimize comfort in compact homes, newly built floors or single-family homes. With exceptional seasonal performance in low temperature heating that registers a scop of 4,46, it is positioned as one of the most profitable and stable systems of the domestic market. Designed to offer a comprehensive air conditioning, Impulsa Water up to 65 ° C and guarantees an agile and silent operation in any outer space.
5.50 kW Heating (nominal) A +++ Scop 4,46
Security policy
Delivery policy
Refund policy
Aerotermia Monobloc Domestic | R32 S2
LG Therma V Monobloc S2 5kw
Model HM051MRS.UA40: Innovation, low consumption and absolute comfort all year round.
Superior performance for modern home
The LG Therma V Monobloc S2 of 5KW (HM051MRS.UA40) It represents the ideal evolution in residential air conditioning for low and a half temperature. When using efficient refrigerant R32, LG He has developed a compact monobloc system capable of maintaining excellent stability in heating, cooling and sanitary hot water. Achieve a water drive temperature up 65 ° C. and operates with total solvency under rigorous winters with temperatures of up to -25 ° C exterior. Thanks to his scop of 4,46 At 35 ° C, it optimizes monthly electrical consumption and provides maximum energy label To +++.
The Monobloc S2 format concentrates all the components of the refrigeration and hydraulic cycle in a single outer chassis. This not only eliminates the need to dispose of a indoor Unit Occupying space in your home, but it radically simplifies technical installation tasks. By not requiring the manipulation of refrigerant gas lines in the inner rooms, the assembly is reduced to direct water pipe connections, significantly decreasing the start-up times and costs.
Full technical sheet HM051MRS.UA40
Thermal yield (35 ° C / 55 ° C)
Maximum heat capacity (W35): 5,50 kW
Maximum heat capacity (W55): 5,50 kW
NOMINAL COP (A + 7 / W35): 4,70
NOMINAL COP (A + 7 / W55): 2,70
SCOP medium climate (W35): 4,46
SCOP medium climate (W55): 3,20
Seasonal energy class: To +++
Dimensions, sound and limits
Measures (x al. X prof.): 1242 x 853 x 391 mm
Net weight of the unit: 94 kg
Sonora power (heat): 57 dB (A)
Gas Refrigerant Gas / Preload: R32 / 1.4 kg
Outdoor operation range (heat): -25 ° C at 35 ° C
Water connections (PT): Male thread, 1 inch (25.4 mm)
Exclusive technologies of LG
âïž Intelligent controller included: The price of the base supply includes both the outdoor Unit Compact monobloc as the official digital controller of LG To regulate precisely the parameters.
âïž Advanced Inverter Compressor: Modulate in an agile way your frequency to match the thermal loads of the home in heating and cooling, optimizing consumption and reducing mechanical wear.
âïž Optimized water flow: Ability to constantly hold a hydron flow rate of up to 15.80 liters per minute (at W35 ° C) to stabilize the thermal distribution in the emitters of the household.
âïž Sustainable Ecosystem R32: Use the state-of-the-art gas with a factory preload of 1.4 kg, which minimizes the direct environmental impact compared to ancient cooling mixtures.
Frequently asked questions
What water drive limits handle the Monobloc S2 range?
In heating mode, it can boost water from 15 ° C to a maximum limit of 65 ° C. In sanitary hot water mode (DHW), the operating range of output water can be raised directly to 80 ° C by the recommended hydraulic configurations and accessories of the circuit.
What accessories are recommended to enable the service of DHW?
To take advantage of the sanitary hot water management, it is recommended to incorporate compatible official components: the temperature probe for deposit of DHW (PhRSta0), the kit for control of interaction resistance (phutb) and three-way switch valve (OSHA-VAV).
Does it require a complementary gas load during its assembly?
No. When configured on a closed and compact monobloc system, it has a 1,4 kg airtight preload of R32 directly sealed from the production factory. The technician performs the assembly by unleasing only water pipes on the outside of the house.
Do you need help with your Aerotermia project?
In your climate warehouse we have an engineering department with extensive experience in the range LG Therma V. Ask us to design the schemes of its installation, select compatible deposits or receive a detailed budget to suit you.
Call 623 541 934
HM051MRS.UA40
Data sheet
- Brand
- LG
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- COP
- 4,40
- Scop (warm weather)
- 6,48
- EER
- 3,30
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 65
- Power Nominal heat (W)
- 5.500
- Heat consumption (W)
- 1.910
- Nominal cold power (W)
- 5.500
- Cold consumption (W)
- 1.670
- Energy efficiency
- A+++
- WiFi
- Opcional con Accesorio PWFMDD200
- High (mm)
- 853
- Width (mm)
- 1.242
- Background (mm)
- 391
- Weight (kg)
- 94
