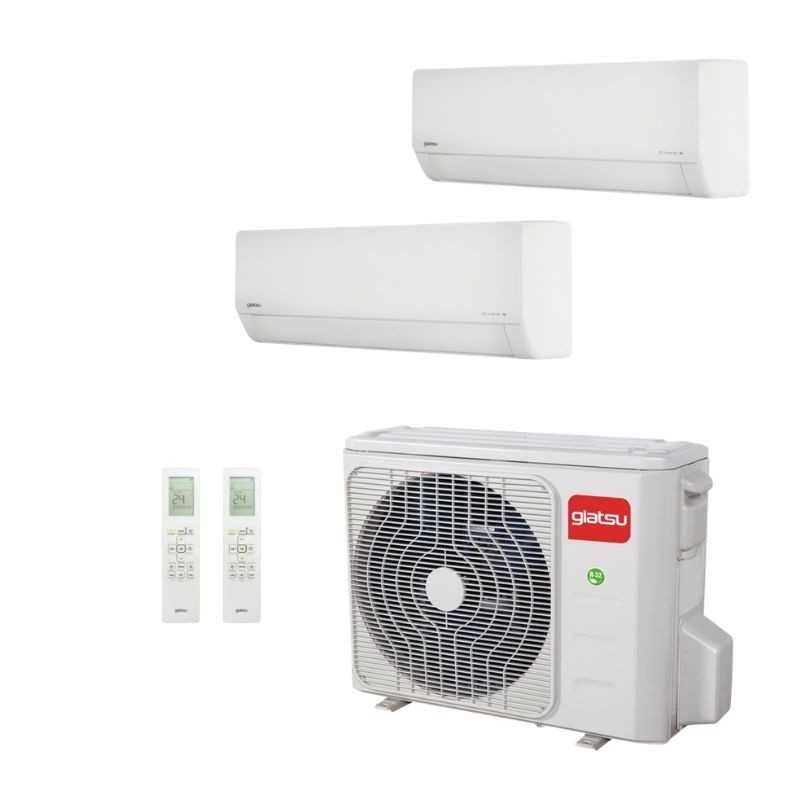

Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-18IX41B2R32 • 2x GIA-MSI-09AR3R32 • 5,20 kW
Advanced and symmetrical air conditioning for two stays Through a perfect combination for bedroom, offices or medium-sized rooms: two indoor units independent of the success series Giatsu AROMA 3 of 2.5 kW each (9,000 BTU). The whole system works connected to a single outdoor outdoor motor 5,20 kW Nominal power with two active ports, allowing to optimize the space on your façade or terrace when centralizing the installation. Enjoy the maximum daily well-being thanks to its integrated Wi-Fi connectivity, optimized management by artificial intelligence, high temperature sterilizing self-cleaning and high-performance ecological gas R32.
A single outdoor outdoor engine optimized for two independent stays
Wi-Fi control standard compatible with smartphone and voice commands
Advanced self-cleaning at 56 degrees to remove bacteria and mold
A ++ / A + excellent seasonal energy saving level inverter
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Multi Split 2x1 Giatsu GIA-MO2-18IX41B2R32 + 2X GIA-MSI-09AR3R32 AROMA 3
Referencia: 2025607445016
€902.84
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-18IX41B2R32 • 2x GIA-MSI-09AR3R32 • 5,20 kW
Advanced and symmetrical air conditioning for two stays Through a perfect combination for bedroom, offices or medium-sized rooms: two indoor units independent of the success series Giatsu AROMA 3 of 2.5 kW each (9,000 BTU). The whole system works connected to a single outdoor outdoor motor 5,20 kW Nominal power with two active ports, allowing to optimize the space on your façade or terrace when centralizing the installation. Enjoy the maximum daily well-being thanks to its integrated Wi-Fi connectivity, optimized management by artificial intelligence, high temperature sterilizing self-cleaning and high-performance ecological gas R32.
A single outdoor outdoor engine optimized for two independent stays
Wi-Fi control standard compatible with smartphone and voice commands
Advanced self-cleaning at 56 degrees to remove bacteria and mold
A ++ / A + excellent seasonal energy saving level inverter
Security policy
Delivery policy
Refund policy
Giatsu Multi Split 2x1 GIA-MO3-18IX41B2R32 AROMA 3
Outdoor Unit 5,20 kW connected to a symmetric combination of two indoor units aroma 3 of 2.5 kW each.
Two stays at the ideal temperature: perfect power balance and minimum consumption at home
The multi-split air conditioning system Giatsu with two interior units of the Symmetric range Aroma 3 of 2.5 kW is the ideal choice for simultaneously and totally independent two stays of your home, such as two bedrooms, double rooms or a work dispatch. By unifying the refrigeration operation in a single outer motor of 5.20 kW of nominal capacity, the set significantly decreases the visual impact on facades, patios or terraces, optimizing the outer space and reducing the fixings and wiring compared to the placement of multiple separate individual systems. Each of the two mural splits works autonomously, allowing you to light up only the area you need and set custom temperatures to enjoy a custom comfort without spending more energy.
In the technical section, the outdoor Unit it incorporates an advanced technological heart with its compressor Dc inverter Giatsu. This state-of-the-art engine effectively compensates by mechanical forces of internal rotation, which mitigates operating vibrations, reduces external noise and eliminates continuous starts and stops from the old teams, managing to stabilize electrical consumption in minimum values of Operation The outer exchange fins have an optimal anti-oxidation protection that ensures excellent durability against meteorological inclemences and urban environments. Working in harmony with last generation refrigerant gas R32, the system reaches excellent energy class coefficients To ++ in refrigeration and A + in Heating.
The great practical advantage of the mural units of the series Giatsu AROMA 3 it lies in its versatility, its intelligent functions and its characteristics designed to improve the purity of the ambient air. The splits integrate an advanced self-cleaning process that raises the internal temperature of the evaporator to 56 degrees, effectively eliminating dust, bacteria and mold accumulated to guarantee a much pure and healthier air. Its operation is extremely comfortable and silent, ideal to take care of your night rest in the bedrooms. In addition, with the Wi-Fi including serial and the use of artificial intelligence, you can control the machines from your smartphone or tablet, monitor the use or regulate the direction of the deflectors intuitively.
Technical characteristics

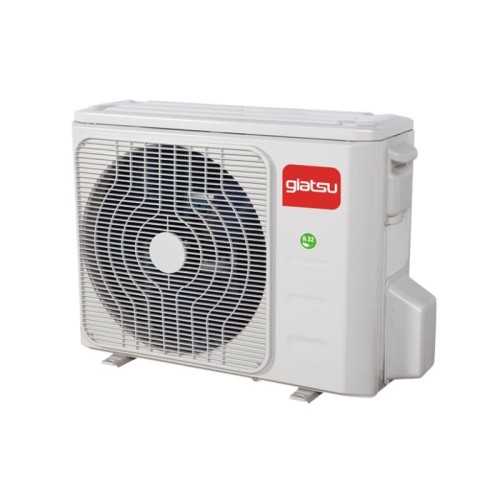

Performance of the Outdoor Unit (Gia-mo3-18ix41b2r32)
Cooling capacity (nominal): 5,20 kW (Work Range Inverter from 2.05 KW to 5,20 kW)
Capacity Heating (nominal): 5.27 kW (stable and heat efficient performance)
Seasonal energy classification (cold): A ++ (high efficiency)
Seasonal energy classification (heat): A + (guaranteed savings)
Compressor technology: DC Inverter of high seasonal reliability
Power supply: 220-240V (1 phase - 50Hz)
Gas Refrigerant Gas Ecological: R32 high thermal transfer

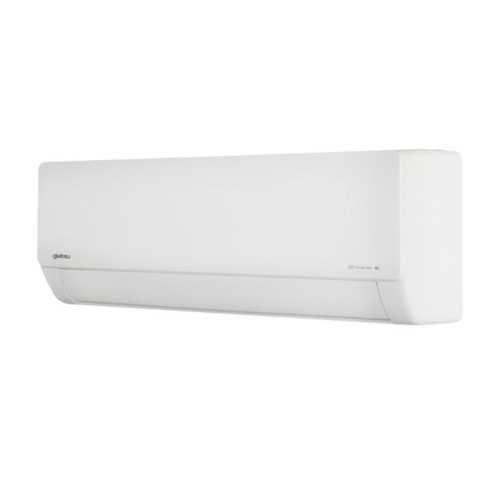

Symmetrical interior units (2x GIA-MSI-09AR3R32)
Commercial range / series: Giatsu Aroma 3 home multi
Individual refrigeration capacity: 2.60 kW (range of 1.1 kW to 3.2 kW for each split)
Individual heat capacity: 2.93 kW (range of 0.83 kW to 3.60 kW for each split)
Minimum sound pressure (silent mode): 19 dB (A) (ultrasilence)
Net dimensions of each split (an x at x PR): 723 x 286 x 199 mm
Net weight per mural unit: 7.4 kg (Lightened design of easy installation)
Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8
Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)
Technologies for daily comfort of the series Giatsu AROMA 3
✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. By linking with the mobile application on your smartphone or tablet, it allows you to control the two rooms independently or manage the basic functions using voice commands with Alexa and Google Home.
✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split executes an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, bacteria and mold accumulated, reducing odors.
✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.
✔️ Optimized design for installation and maintenance: The aroma 3 of 2.5 kW aroma incorporate practical elements such as a support with level included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.
✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.
Frequently asked questions
How does management by independent zones work with two interior units connected?
Independence in the air conditioning of the two stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can schedule a split in a bedroom in cold mode, keep the second unit completely off in the study or regulate different slogans, adapting the external compressor exactly to the defendant instantaneous expenditure.
Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?
No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.
What installation flexibility does this 5,20 nominal 520 kW system offer?
The system supports a flexible installation to adapt to the distribution of your home. The maximum vertical rate allowed between the outdoor Unit (installed in facade, patio or roof) and the interior units is 15 meters, while the maximum vertical unevenness between the indoor units mounted within the house is up to 10 meters, facilitating the laying of the refrigeration lines of Copper totally safely.
Do you need technical advice to plan your multi split installation of Giatsu?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and optimization of advanced multi-zone air conditioning systems Giatsu. If you have doubts about how to plan the layout of copper pipes (the two 2.5 kW splits of this set require independent symmetric refrigeration lines of 1/4 liquid and 3/8 gas), calculate the refrigerant volume from From the length of the pre-installation or integrate voice control, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
2025607445016
Data sheet
- Outdoor Unit
- GIA-MO2-18IX41B2R32
- Indoor Unit 1
- Gia-MSI-09ar3r32
- Indoor Unit 2
- Gia-MSI-09ar3r32
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.610
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 5.280
- Heat capacity (Kcal / h)
- 4.541
- Nominal heat consumption (W)
- 1.423
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 19/19
- Net weight (kg)
- 55
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 20
- Surface recommend UI2
- 20
- EU dimensions (anxfxh) mm
- 805 x 330 x 554
- Dimensions UI1 (ANXFXH) mm
- 723 x 199 x 286
- Dimensions UI2 (ANXFXH) mm
- 723 x 199 x 286
