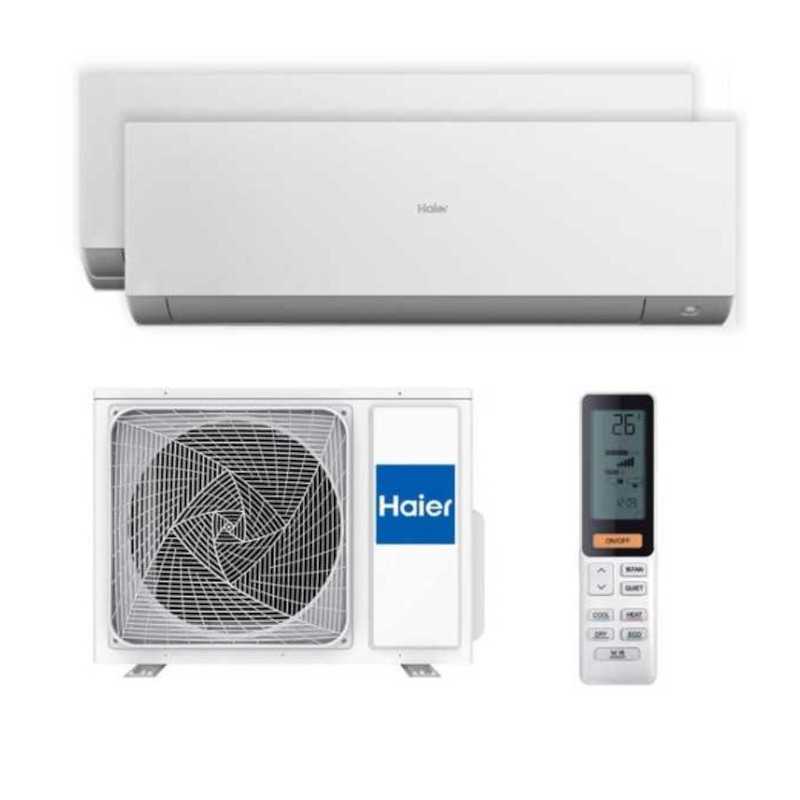

Air conditioning Multi Split 2x1 Haier 3U55S2SR5FA + AS25XCAHRA + AS35XCAHRA White Expert

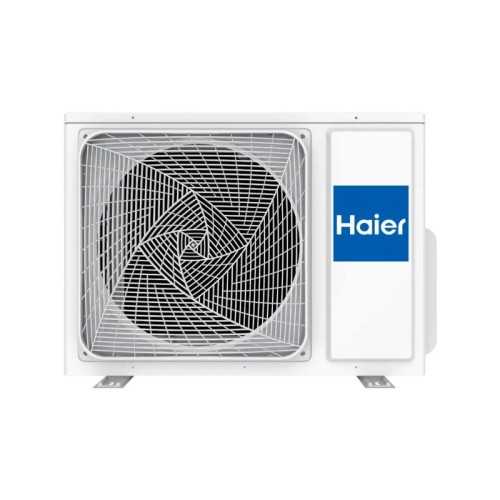

External system performance (3U55S2SR5FA)

Cooling capacity (nominal): 5.50 kW (Range: 2,10 kW - 6,80 kW)

Capacity Heating (nominal): 6,80 kW (Range: 2,40 KW - 7.60 kW)

Seasonal energy classification: A +++ (cold) / A ++ (heat)

Seer efficiency coefficient (cold): 8.50 (High performance)

Efficiency coefficient SCOP (heat): 4.60 (High performance)

Gas Refrigerant Gas Ecological / load: R32

Electrical supply from the set: Single-phase, 220-240V, 50Hz

Internal units included (Expert Gama)

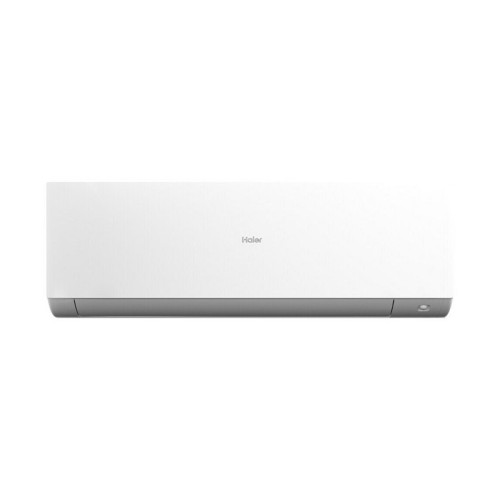

Split bedroom unit: 1x AS25XCAHRA (2,80 kW cold / 3,20 kW in heat)

Split Living Unit: 1x AS35XCAHRA (3.50 kW cold / 4,20 kW in heat)

TREATED AIR VOLUME (AS25 / AS35): 730 m3 / h / 800 m3 / h (high flow)

Minimum sound pressure (Quiet mode): 19 dB (A) / 20 dB (A) (Inaudible)

Active purification technology: Integrated device UVC Pro

Intelligent presence sensor: Eco-built-in series Sensor

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ UVC pro active purification system: The device generates plasma for advanced ionizar the water molecules of the air, giving rise to hydroxyl (OH) radicals that, added to the ultraviolet radiation of short wave, effectively neutralize virus, Allergens and bacteria in suspension, purifying the stay continuously.

✔️ Modular structure of easy installation and maintenance: The split revolutionizes traditional maintenance standards with an advanced modular assembly. With removing a single fixing screw, it allows you to disassemble the indoor fan, electronic card and drainage tray in seconds, facilitating deep hygienic cleaning without complications.

✔️ Intelligent Eco Presence Sensor: A high sensitivity sensor scans the occupation plane of the rooms constantly in search of users. If it detects movement, it optimizes the flow redirecting it indirectly to ensure comfort without direct annoying currents on the body, and reduces the power automatically when emptying the space.

✔️ Ventilation effect Coanda Plus: Aerodynamic structure of the slats that projects the jet of cold air parallel to the ceiling for a homogeneous distribution by gravity without currents, and directs the warm flow vertically to the floor in heating mode for a perfect thermal comfort.

✔️ Domotic connectivity series with HONEP: The integrated Wi-Fi module allows you to monitor and manage the system from any smartphone wirelessly. Modify temperatures, activate UVC Pro protocols or remote controlled program before arriving home, linking natively with Alexa and Google Assistant.

What actual advantage does provide installing a outdoor Unit 3U55 with only two splits (2x1)?

The advantage is excellent in terms of durability, seasonal performance and efficiency. As a outdoor Unit high capacity dimensioned with hydraulic architecture to withstand up to three independent refrigeration lines, working with only two interior units causes the Inverter compressor to operate completely loose. It reaches the stem temperatures faster, significantly reduces mechanical wear and offers impeccable thermal behavior even under weather conditions outdoor limit.

How does the control by independent areas of asymmetric capabilities (Expert 9K + 12K)?

Independence in air conditioning is total and is perfectly coordinated by outdoor Unit. Each Split Expert has its own thermal sensor and its own wireless control. You can have the split of 3.5 kW in the room at full performance in cold mode at 24 ° C while the 2,8 kW split of the bedroom remains completely off, modulating the exterior compressor its power in an accurate proportionate manner so as not to spend more energy.

Is the operation of the UVC Pro lamp for the people of the house?

It is 100% safe. The UVC Pro electronic generator is tightly encapsulated in the mechanical interior of the mural chassis, so the light rays are never projected to the outside of the habitable stays. The air flow is purified internally so that it passes through the evaporator filter, eliminating direct exposure risks.
