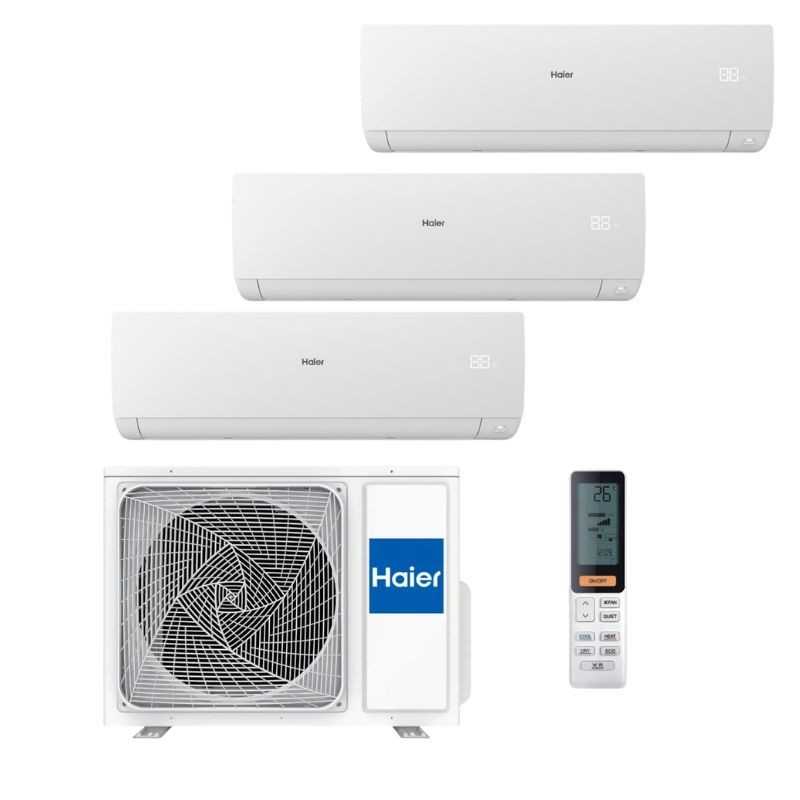

Multi Split 3x1 Haier 4U85S2SR5FA + AS25SBBHRA-MW + 2X AS35SBBHRA-MW Air Conditioning Flexis S White

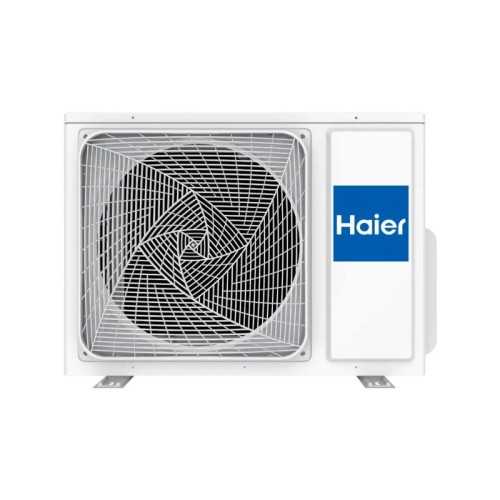

External system performance (4U85S2SR5FA)

Cooling capacity (nominal): 8.50 kW (range: 3,20 kW - 9.50 kW)

Capacity Heating (nominal): 9,60 kW (Range: 3.40 KW - 10.50 kW)

Seasonal energy classification (cold / heat): A +++ / A ++

Seer efficiency coefficient (cold): 8.50 (optimal performance)

Efficiency coefficient SCOP (heat): 4.60 (Optimal performance)

Compressor technology: A-Pam Twin Inverter high stability

Gas Refrigerant Gas Ecological / Connection: R32 / single-phase 230V

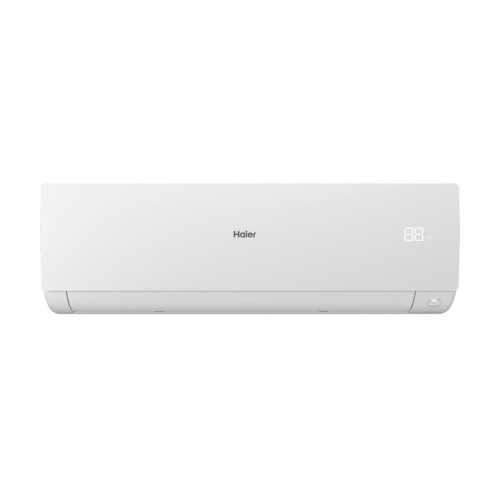

Internal units included (Flexis S series)

Split bedroom / dispatch unit: 1x AS25SBBHRA-MW (2.50 kW / 9,000 BTU / H)

Splith Units Salon / Spacious Areas: 2x AS35SBBHRA-MW (3.50 kW / 12,000 BTU / H X2)

Outside aesthetic finish: White Matte Textured Premium

Minimum sound pressure (Super Quiet mode): 16 dB (A) (Inaudible)

Active purification technology: UVC Pro Lamp and Ionizer

Intelligent presence sensor: Eco-built-in series Sensor

Dimensions of each split (an x at x PR): 856 x 300 x 197 mm

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ UVC Pro advanced purification system: Flexis S units incorporate an UVC Pro electronic module that emits ultraviolet radiation of integrated short wave and generates active plasma. When ionizing the water water molecules, it creates hydroxyl (OH) radicals that attack and neutralize the virus structure, bacteria, mold spores and suspension allergens, guaranteeing a clean air and Disinfected.

✔️ Thermal sterilization at 56 degrees (Steri-Clean): An automated high temperature internal disinfection protocol. The system freezes the evaporator to agglutinate the dust and impurities accumulated in the aluminum slats, eliminating them by means of a fast defrost, to later heat the internal battery at 56 ° C for 30 minutes, destroying the microorganisms by thermal shock.

✔️ Eco-intelligent presence sensor: Each split has a high resolution sensor that continuously scans the room plan. If it detects movement, the algorithm indirectly redirects the air flow (Coanda Plus effect) to provide perfect comfort without annoying currents over the body, reducing power automatically if the stay remains empty.

✔️ Ultrasilencious operation of 16 dB (A): Thanks to the aerodynamic optimization of the deflectors and the lightened cross-sectional fan, the friction of the air is reduced to minimum operational values. The Split works by emitting a slight murmur of 16 decibels in its lowest mode, which ensures a totally pleasant night break.

✔️ Ecosystem Hon App with integrated Wi-Fi: The factory wireless module allows you to manage the three interior zones from any smartphone. Turn on or off the units independently, modify the temperatures, activate the UVC Pro disinfection features or complex weekly operating profiles program, linking natively with Alexa and Google Assistant.

What actual advantage does provide installing a outdoor Unit 4U85 of four zones with only three splits (3x1)?

The advantage is excellent in terms of durability, seasonal performance and mechanical reliability. When connecting three indoor units (two of them with high demand as those of 3.5 kW) to a outdoor Unit industrial 8.5 kW nominal sized to feed up to four splits simultaneously, the Inverter compressor works in a fully loose manner. Reaches setpoint temperatures faster, significantly reduces the wear of the mechanical components and offers impeccable thermal behavior under extreme conditions.

How does the control by independent areas with asymmetric capabilities (9K + 12K + 12K) work?

Independence in the air conditioning of the three stays is total and absolute. Each matt White Flexis S unit includes its own temperature sensor, its motorized flow slats and its own remote control. You can have on the two spliths of 3.5 kW in day-to-date areas while the bedroom unit remains off, adapting the outer compressor exactly to instant proportional expenditure so as not to spend more energy.

Is the operation of the UVC PRO purifier for the people of the house?

It is 100% safe and is certified. The UVC PRO ultraviolet generation device is fully encapsulated and shielded hermematically in the internal structure of the Split wall chassis. The light rays purify the air as it passes through the evaporator's battery, preventing any type of projection to the outside of the rooms inhabited.
