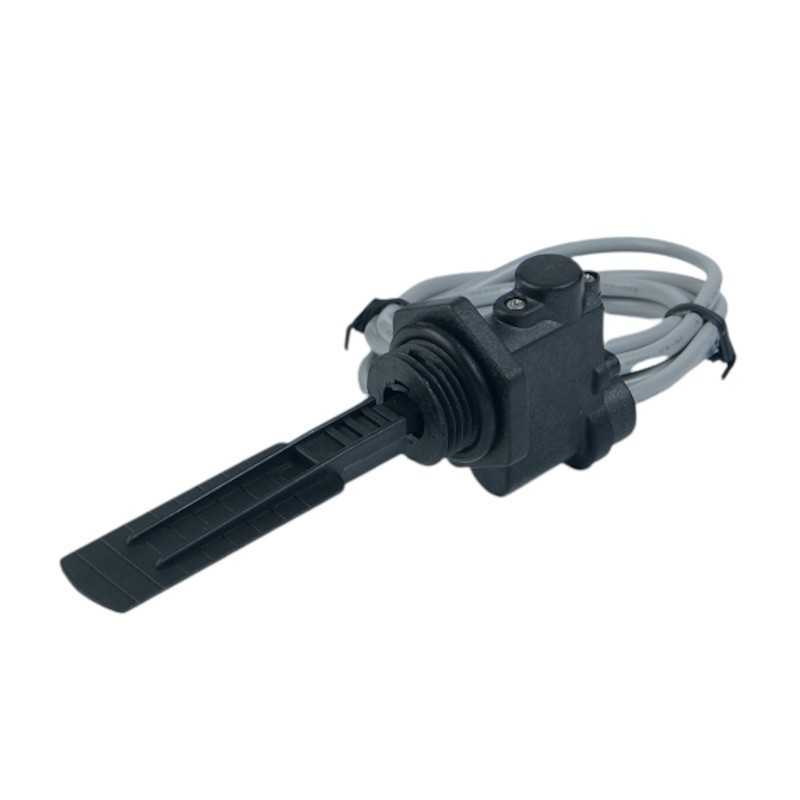

Water probe kit (flow sensor) BSV for Evobasic Chlorinator

Water probe kit BSV Evobasic

The definitive security shield for its saline electrolysis system. Original flow sensor BSV Electronic for automated physical protection against lack of flow.

Engineering technical study: the critical importance of flow control

In engineering applied to the chemical treatment of water, saline electrolysis generates an electrochemical reaction that breaks the dissolved salt molecules to release natural sodium hypochlorite. This process generates safe gaseous by-products under continuous flow conditions, but are highly destructive if the water remains stagnant. If the chlorinator continues to operate without liquid circulation, the temperature inside the vessel is exponentially elevated and the accumulation of hydrogen gas can fracture the cell or melt the PVC connections. The water probe kit or original flow sensor BSV Electronic it acts as a perimeter physical interlocking device. By constantly measuring the kinetic energy of the fluid, it transmits an instantaneous digital signal to the microprocessor of the Evobasic, isolating the electrical production circuit to the slightest decrease in the operating flow. Our technical department recommends its systematic installation to ensure global operational security of the technical plant.

📊 Original component tested under the manufacturer's hydraulic and electronic safety standards BSV Electronic.

Automated physical security for chlorinator: Robust palette sensor and chemical immunity

The water probe kit (Flow sensor) BSV it is presented as an indispensable active security element to complete the installation of any saline chlorination equipment of the Evobasic series. Manufactured under rigorous quality controls, the sensor uses an electromechanical mechanism of pallet or magnetic tongue of high sensitivity that is physically displaced upon receiving the water flow push. This design guarantees a rapid response and a low resistance to the water passage, ensuring that the equipment monitors the filtering of the pool without altering the load losses of the pumping system.

The body of the sensor is constructed with reinforced thermoplastic polymers and high quality chemical metal components, which gives it a total resistance against waters with high salinity rates and the presence of concentrated correcting additives as acid hydrochloric or sodium bisulfate. The kit includes the specific wiring provided with quick terminals adapted for direct connection on the Evobasic Chlorine Baseboard, facilitating a clean installation in the technical picture and guaranteeing an immune data transmission to the electromagnetic interference of the Local filtration.

Have this original sensor BSV it transforms its disinfection system into an intelligent and autonomous team. It will no longer depend exclusively on mutual electrical synchronization between the swimming pool and chlorinator. Faced with any unforeseen physical anomaly -as a skimmer obstructed by leaves, a saturated sand filter that drastically reduces the flow or an accidental drop-off of the filtration pump - the sensor will act perimetrally By sending the stop signal to the evobasic, turning on the alarm LED on the control panel and effectively protecting all your technical investment.

Recommendations for assembly and technical installation

To ensure a millimeter and free reading of false alarms, the water probe kit BSV always be installed in a vertical position on a stretch of horizontal drive of the drive, requiredly located after the sand filter and before the entrance to the vessel of the electrolysis cell. It is advisable to use a specific portassondas or a threaded bypass collar suitable for the diameter of its pipe (usually 50 mm or 63 mm).

When threading the sensor's body, Teflon Ribbon must be applied in the thread fillets to ensure a permanent hermetic sealing under pressure, paying special attention to the indicator arrow recorded in the sensor chassis, which must be aimed at it Sense that the direction of the circulating water flow. The connection of the wiring to the Evobasic chlorinator box is performed with the disconnected equipment from the electrical network, fitting the terminal in the corresponding socket on the plate following the instructions of the official scheme of BSV.
