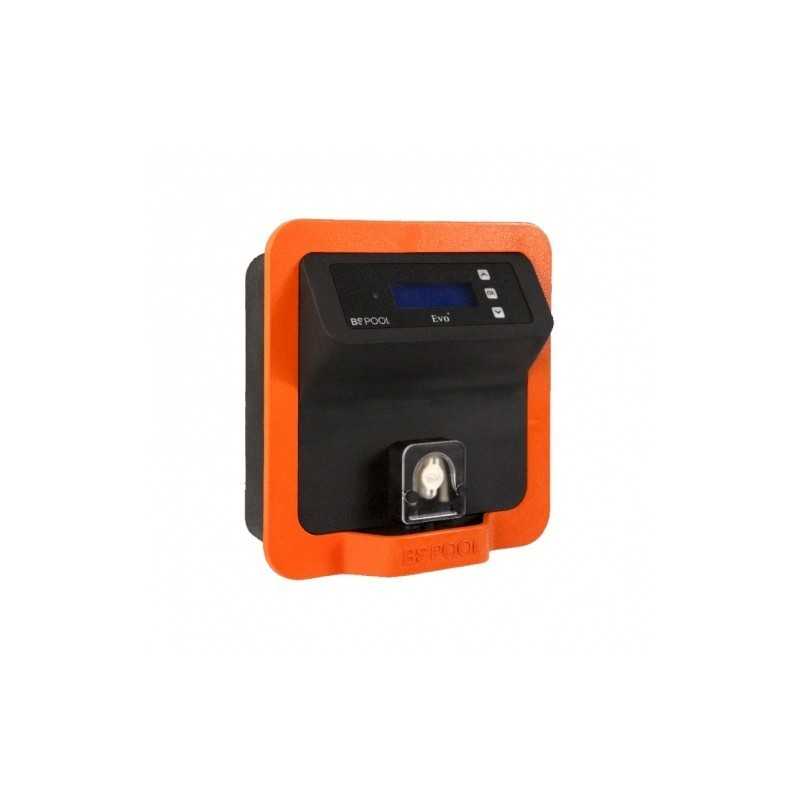

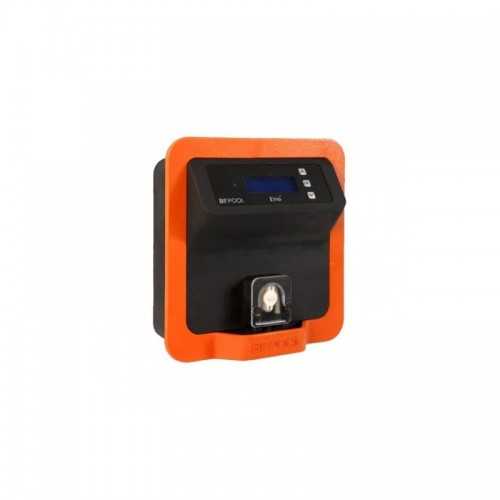

PH regulating equipment with 1,5L / h peristaltic pump BSV

BSV EVO Ph-P 1.5 L / H

The key to healthy and perfectly balanced water. Automated pH control with high precision peristaltic pump, interactive digital reading and integrated injection safety.

Technical Study: The critical importance of pH in efficient chlorination

In water treatment engineering for pools, the pH value is the master pillar on which all disinfection rests. If the pH deviates from its optimal range, even the most powerful disinfectant loses up to 70% of its destructive capacity against bacteria and algae, causing turbidity in the water and annoying irritations in the eyes and skin of the bathers. The analyzer and automatic dosing EVO PH-P solve this problem by a continuous correction loop. When measuring in real time and providing accurate micro-doses through its 1.5 l / h peristaltic circuit, the system maintains the perfect water balance naturally, drastically reducing the waste of corrective products. Our technical department calibrates these control schemes to stabilize the most demanding vessels.

📈 Coefficients of analysis and chemical injection validated with the industrial specifications of the series BSV DOSING SYSTEMS.

Intelligent Automation, Analytical Reading and Active Protection Against Overdosing

The automatic dosing equipment BSV EVO PH-P of 1.5 L / H represents an outstanding advance in the management of the water chemical treatment of private and collective pools. The chassis of the equipment incorporates an analytical reader connected continuously to a submerged pH probe in the tubing of the technical room. The internal processor mathematically evaluates the values detected within a real reading scale of 6 to 8. When confronting this data with the setpoint or set-point * previously defined by the user, the system calculates precisely the amount of Corrector that is needed to inject, activating the pump only when it is strictly indispensable to restore the optimal water balance.

The drive mechanism highlights by using a peristaltic technology pump. This system bases its operation on the rotary compression of a high strength flexible tube, a design that offers huge mechanical advantages over traditional pulse pumps: it is completely silent, self-centered and prevents the liquid from receding or suffer pressure losses due The gas bubbles trapped in the suction pipe. In addition, the Digital Panel has a specific manual priming function that simplifies the start-up tasks or the chemical garage changes, allowing to fill the injection circuit quickly and controlled.

Operational security has been treated with maximum technical rigor in EVO Ph-p software. One of the most advanced protection functions of the equipment is the automatic unemployment for injection time. This warning system prevents chemical disasters in the glass; If the regulator detects that the pH does not stabilize after injecting product uninterruptedly during a scheduled time interval, the microprocessor assumes the existence of an anomaly (such as a derivative probe, lack of water or breakage of Pipe), immediately blocking the operation of the peristaltic pump to avoid a dangerous overdose. All this is monitored by clear indicators on your screen and is complemented with a comfortable stand-by mode to perform hydraulic maintenance tasks with total safety.

Operational advantages of peristaltic design vs. Pulse

The choice of a system with peristaltic pump (EVO PH-P) versus the variants of magnetic impulses responds to strict criteria of comfort and accuracy in residential and semipublic pool facilities. The peristaltic system exerts a continuous pressure by rollers on an elastomerous flexible tube, which generates a volumetric displacement of the fully regular liquid and free of violent pressure peaks in the injection hoses.

This hydraulic regularity not only minimizes the wear of the joints and the injection collars in the main pipe, but completely eliminates the characteristic and annoying rhythmic pounding that produce magnetic pulse pumps in the booths Filtration Being a closed compression mechanism, it acts as a natural anti-return valve, preventing the corrective product from gravity freely to the vector when the main filtration system is in the rest state.

Are you looking to automate and perfect the chemical control of your pool?

On https://tualmacendelclima.com/en/ we are technical engineers specialists in hydraulic design, thermal control by air stopermia and automatic dosing of fluids. If you want to solve operative doubts about the installation of the bypass regulator, the compatibility with its saline chlorinator or the parameterization of the security injection time, our engineering department is at your entire disposal.
