Hydroten SNS D.50 - 1 "1/2

The definitive technical insertion solution for the protection and centralization of chemical instrumentation. Designed by hydrotten for 50 mm pipes with integrated inspection viewer.

Engineering Study: Hydrodynamic inspection and analytical centralization

In automation engineering for residential and collective pool technical premises, dispersed arrangement of analytical sensors increases load losses in the pipe and multiplies critical points with hydraulic leakage risk. The Triple Rack Hydroten SNS 101N500 solve this structural problem by offering a single point of centralized accommodation. When fixing solidly on the main channeling of 50 mm, it places the pH, redox sensor bulbs or water detectors in a constant and controlled laminar flow zone. Its differential advantage lies in the integrated viewer, which allows visually examining the degree of accumulation of lime or dirt in the electrodes without the need to depressurize the circuit. This is essential to ensure stable readings in chlorkers and dosing pumps, guaranteeing a natural and balanced chemical treatment. Our engineering department calibrates these assembly schemes to simplify maintenance and protect the most sensitive analytical components.

📈 Structural sealing and structural resistance coefficients under the industrial manufacturing regulations of hydrotten.

Smart multi-sensor accommodation: Permanent sealing and direct viewing

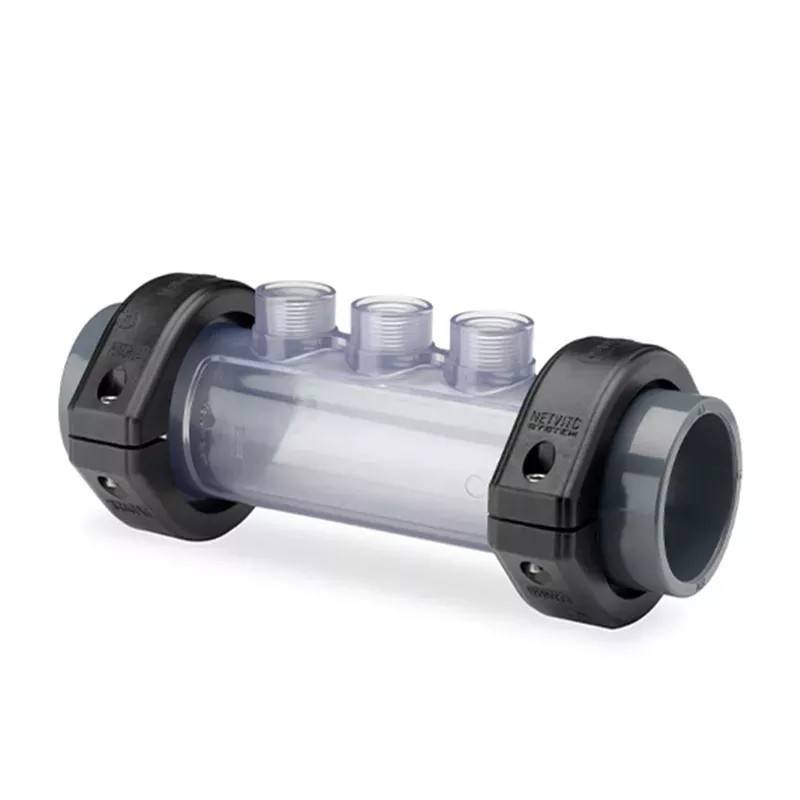

Triple Rack with Hydroten SNS D.50 - 1 "1/2 viewer is consolidated as a reference instrumentation accessory for professionals that seek to an aesthetically and functionally optimize the filtration booths. Injected into technical polymers Advanced high density, this component impeccably resists galvanic corrosion of salt treated pools and chemical effects of pH reducing products or concentrated disinfectants. The equipment chassis is integrated with total precision in the PVC pipes of 50 mm diameter by means of standard gluing joints, providing a transparent section that allows to check the passage of water and the actual state of the analytical electrodes.

The ease of assembly that this unified system provides makes the difference against traditional multiple drilling methods or the use of multiple serial bypass collars. The threaded connections integrated into the triple portasondas are accurately machined to support any steps, injector or 1 "and 1/2 inch standard clamping accessory. When centralizing the chemical pH and redox readings (ORP) together with the Water sensors or safety flows, the operator reduces the number of glued unions, decreasing pressure drops in the circuit and suppressing the annoying water capillary losses due to aging of handmade threads.

In addition to optimizing physical space in reduced technical rooms, this portrastandas significantly increases comfort during seasonal maintenance operations and periodic calibration of the pool. When the time comes to renovate or clean the probes with reactive solutions, the maintainer should simply unscrew the corresponding sensor from its threaded socket. This fast and clean maneuver is made in a few seconds without the need to cut PVC pipe sections or disarm the main bypass line of filtration, minimizing system stop times and facilitating continuous maintenance without complications.

Mounting criteria and installation in technical bypass

To ensure perfect performance and exact readings of the electrodes installed in the Triple Hydroten SNS portrasondas, it is advisable to place this component always in horizontal or vertical position after the sand filter of the pool and before the chlorinator cell Saline It is highly recommended to assemble in a bypass line provided with manual cutting valves.

This configuration in bypass enables completely isolating the hydraulic section of the viewfinder to perform routine calibration tasks with pattern liquids or clean the probes with acid solutions without the need to stop the main filtration cycle of the pool. When threading the specific portasondas or injectors in the 1 "and 1/2 inch jacks, it is essential to use Teflon tape or sealing joints to ensure a lasting hermetic seal, avoiding excessive tightening with tools Aggressive mechanics to protect the threads from the polymer thread.
