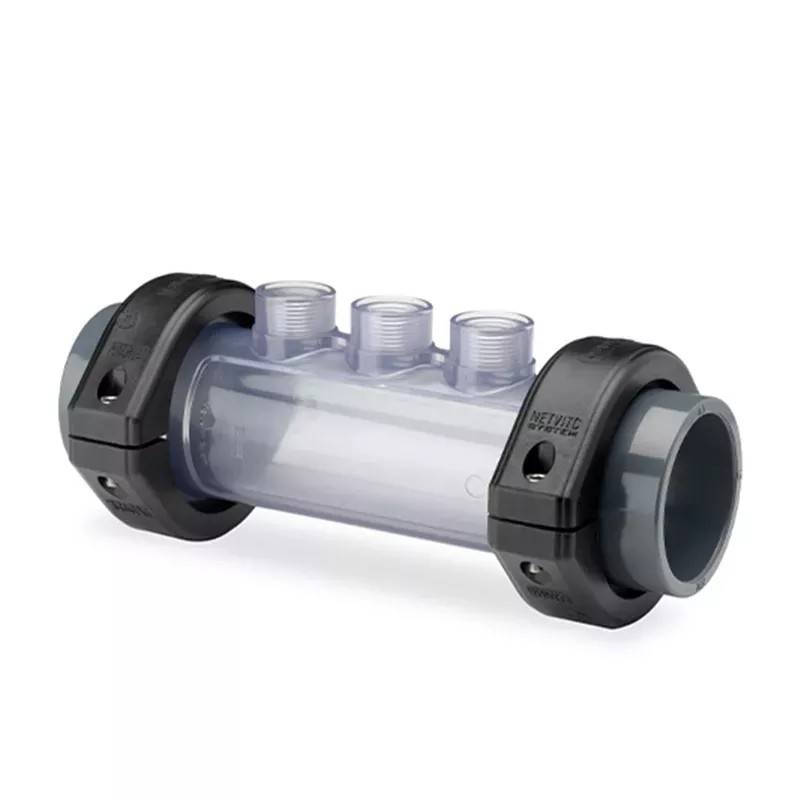

SNS SNS S / ENC 63-1 / 2 (recommended for water sensor)

Astralpool SNS S / ENC 63-1 / 2

The final technical insertion support for the protection of its sensors. Designed for 63 mm lines, 1/2 inch thread connection and optimized for safety water sensors.

Engineering Study: Secure Measurement and Stable Hydraulic Connection

In automation engineering for pool technical premises, the physical arrangement of analytical sensors determines the accuracy of the readings and the useful life of the electrodes. Insert a probe directly or inadequate exposes the crystal body to severe turbulence or mechanical tensions that cause breakage or erratic readings. The portatas SNS S / ENC 63-1 / 2 it provides the ideal hydrodynamic housing. When fixing solidly on the main channeling of 63 mm, it places the sensor bulb in the constant laminar flow area, allowing the water sensor to work in a protected environment but in direct contact with the liquid vein. This is critical to avoid false failure alarms and ensure a natural and efficient automated dosage. Our technical department calibrates these assembly schemes to protect the most sensitive components of your pool.

📈 Mechanical sealing and resistance coefficients tested under the industrial quality standards of Astralpool.

Safe accommodation for flow sensors: permanent sealing and technical modularity

The Astralpool SNS S / ENC 63-1 / 2 portrasounds is defined as a key instrumentation for any installer who seeks to professionalize the technical place of a large residential or collective pool. Manufactured with high density injected technical polymers, this accessory has been formulated to withstand continued exposure to fluids with high salt concentration and aggressive chemicals such as pH reducers or liquid chlorine. Its chassis is accurately adapted to PVC pipes of 63 mm in diameter, providing a top bypass with 1/2 inch female thread that acts as the perfect anchor point for analytical instrumentation.

The express recommendation of this model for the security water sensor ** responds to strict hydraulic reliability criteria. Water or flow sensors need stable immersion and oscillation-free vertical alignment to emit correct electronic readings towards the saline chlorinator. By using the SNS portrasondas, the operator avoids improvising direct drills or handmade threads in the PVC that would end up transferring due to pressure wear. This component guarantees a robust fixing that supports the startup pressure peaks of the filtration pump without suffering microding or water capillary leaks.

In addition to its advantages in operational security, this portrastandas significantly increases comfort in seasonal maintenance tasks of the pool. When the time comes to perform the hibernation, clean the sensor with acidic solutions or proceed to recalibration with pattern liquids, the operator simply should unscrew the sensor hosted on the 1/2 inch intake. This maneuver is carried out cleanly and agile in a few seconds, without the need to cut piping sections, take off PVC junctions or disassemble the main bypass line, reducing dead technical assistance times and optimizing operating costs of installation maintenance.

Mounting criteria and installation of the security sensor

To ensure impeccable operation of the security water sensor hosted on the SNS 63-1 / 2 portrasondas, it is advisable to install this accessory always in a section of horizontal or vertical pipe after the sand filter and before the cell of the Saline chlorinator. The assembly must preferably be performed on a bypass line provided with cutting valves.

This bypass arrangement allows to isolate the hydraulic section of the sensor during routine maintenance tasks without the need to stop the main filtration pump of the pool. When threading the sensor in the 1/2 inch intake, it is essential to use Teflon tape or sealing elastomers to ensure a permanent hermetic seal, avoiding tightening the accessory with aggressive metal tools to safeguard the integrity of The polymer thread fillets.
