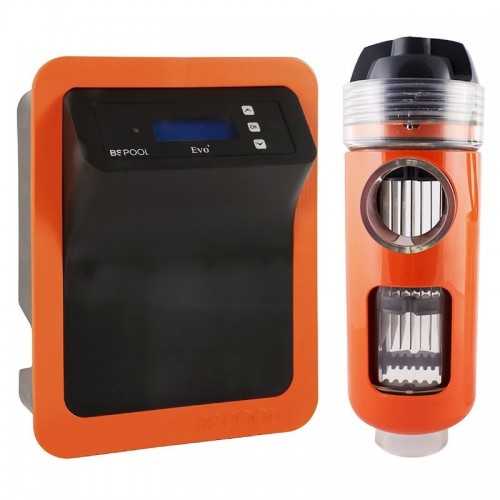

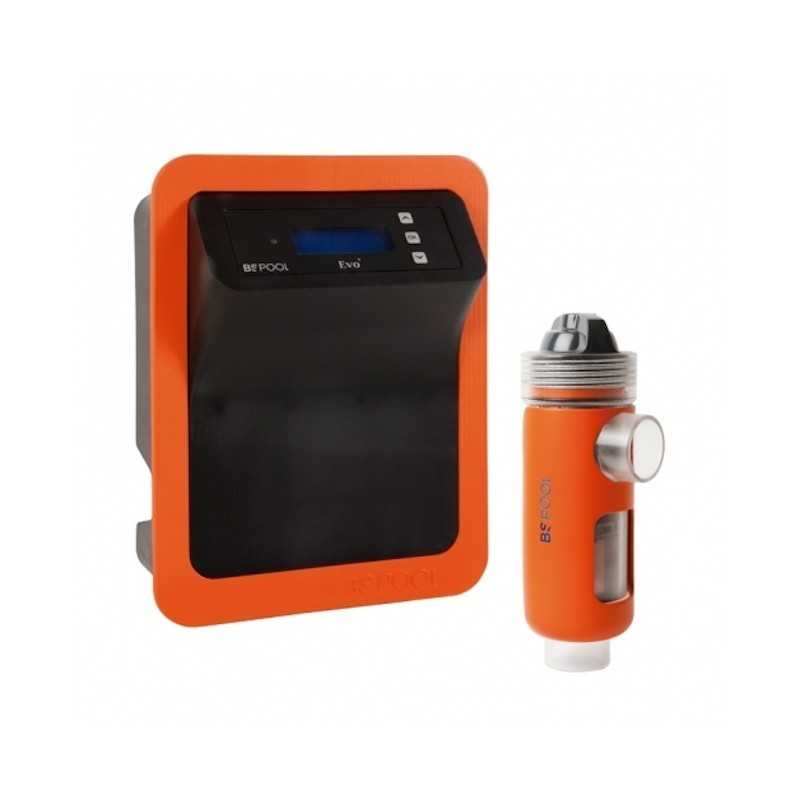

Evobasic Saline Chlorinator 25gr / h BSV

BSV Evo Basic 25

The excellence of large-scale natural chlorination. Automated disinfection through switched low consumption sources, maximum cell durability and null chemical manipulation.

Engineering Study: Natural disinfection by switched electrolysis

In residential hydraulic treatment projects, the use of traditional chlorinated industrial disinfectants generates harmful byproducts (chloramines) that irritate mucous membranes and degrade coatings. The saline chlorinator Evo Basic 25 it implements a sustainable physical-chemical principle: by applying an electric field regulated in a diluted salt stream (4 g / L), it generates a pure and natural disinfectant directly in the drive pipe. By completing its oxidant function, this agent is transformed into salt, operating in a perpetual and closed cycle. Thanks to its switched sources, the set optimizes the power transfer to the cell with a minimum thermal loss, reducing the weight of the electronics at only 4 kg. Our engineering department analyzes the filtration rates of its pool to coordinate the ideal electrochemical balance.

📈 All technical and consumer parameters corresponding strictly to the official specifications of the EVO Basic series of BSV.

Ecological closed cycle with self-cleaning cellular technology Longlifecell

Automatic saline chlorinator BSV EVO Basic 25 stands out as a premium and intelligent solution for the integral disinfection of private pools, completely eliminating the servitude of storing, dosing and manipulating hypochlorite calcium or chemical compounds derived. The operating core of the device monitors the passage of the water treated with a base salinity of 4 grams per liter to trigger the electrolysis process. When crossing the electrodes, the molecules dissociate constantly releasing 25 grams per hour of a pure disinfectant agent of high volatility, which instantly destroys organic matter, virus and microalges in suspension without leaving residues Binding Under solar radiation, free disinfectant recombines returned to its original state of common salt, ensuring clean and ecological maintenance.

The competitive advantage of this model lies in the integration of a ** last generation switched source **. Breaking with heavy magnetic transformers that generated high losses due to thermal dissipation, the EVO BASIC 25 operates with a higher efficiency, reducing the working temperature of the internal components and stabilizing a maximum current of 25 A under a consumption contained 187.5 W. This optimization drastically extends the useful life of the circuits and softens the energy expenditure derived from the long seasonal filtration days.

Durability is shielded in the titanium electrodes of the cell ** longlifecell **, projected to provide up to ** 10,000 hours ** operating. To counteract the scale incrustations caused by harsh water, the software manages a fully automatic polarity investment, resulting from calcium deposits without requiring manual cleanings with aggressive chemical reagents. System control is managed by an internal microprocessor coupled to a clear and intuitive digital display, which computes the effective service hours and incorporates automatic alerts due to lack of salt, operating as a continuous technical assistant in its bath installation.

Modular ecosystem and advanced optional automation

Chlorinator BSV EVO BASIC 25 stands out for an outstanding technical modularity on its electronic control board. Although the series operates as standard with manual regulation, it is fully prepared to integrate peripherals and expansion probes that automate reading and dosing by real chemical demand:

• Auto Kit (pH): Activates automatic regulation and introduces pH indicators and readings directly on the Digital Display.
• Kit Advanced (ORP): Add parametric control by redox potential, adjusting the production of natural chlorine to the instantaneous hygienic needs of the pool.
• Auxiliary sensor kits: Supports the addition of a temperature probe kit (Water True indication), Ampometric probe kit and safety water probe kit.
• Kit Connect (Eypools): It grants remote communication capabilities for advanced external monitoring of the entire technical premises.
