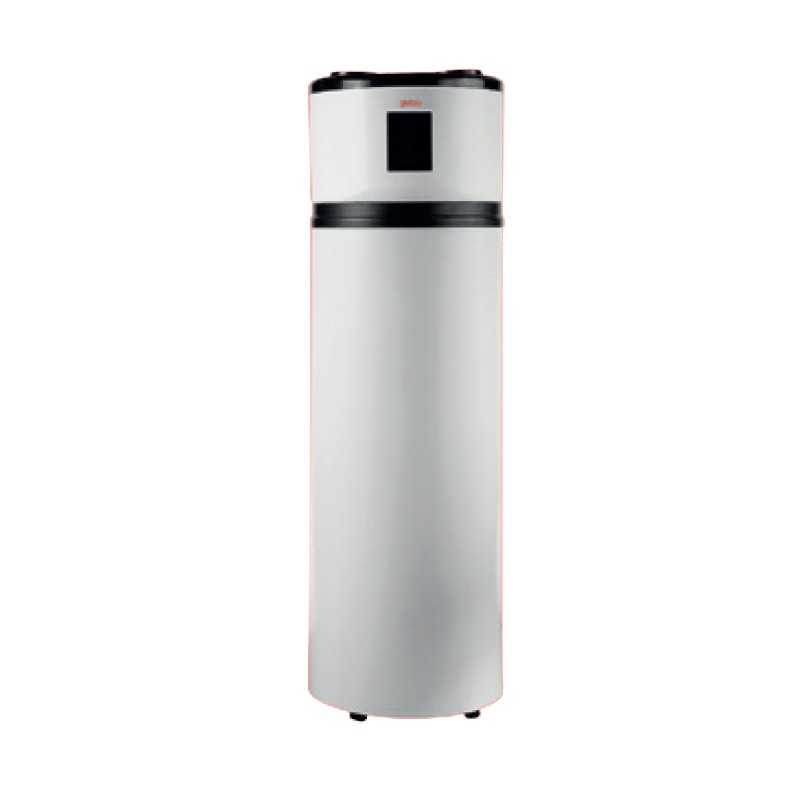

Heat Pump DHW Giatsu GIA-ATS-300SR290A Inox
Heat Pump premium aerothermal maximum capacity with integrated solar winder for sanitary hot water with stainless steel AISI 304 of 300 liters and advanced hybrid technology with natural R290 coolant. This maximum efficiency equipment Giatsu combines A+ rating in both climates, low maintenance electronic anode, anti-legionela protection up to 70°C, exceptional COP of 3,8 (maximum of the series), recovery time of 8h:00min in warm weather, integrated solar winder of 10 meters with 1m2 exchange, Smart Grid Ready, reinforcement resistance of 1.55 kW and ultra silent sound level of only 41 dB, ideal for very large energy applications of 5-6.
- ▷ Maximum capacity: 300L solar hybrid + AISI 304 stainless
- ▷ Maximum series COP: 3,8 with SCOP 3,55 - Leader efficiency
- ▷ Hybrid System: Aerotermia A+ + solar 10m integrated
- ▷ Commercial application: Families 5-6 people + small hotels
- ▷ Ecological R290: GWP 3 with maximum sustainable capacity
- ▷ No maintenance: Electronic anode + Smart Grid Ready
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-ATS-300SR290A - AISI 304 Inox + Solar Serpentine - R290 (0.15 kg) - Smart Grid
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump Giatsu GIA-ATS-300SR290A Inox
Referencia: GIA-ATS-300SR290A
€2,063.84
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Giatsu GIA-ATS-300SR290A Inox
Heat Pump premium aerothermal maximum capacity with integrated solar winder for sanitary hot water with stainless steel AISI 304 of 300 liters and advanced hybrid technology with natural R290 coolant. This maximum efficiency equipment Giatsu combines A+ rating in both climates, low maintenance electronic anode, anti-legionela protection up to 70°C, exceptional COP of 3,8 (maximum of the series), recovery time of 8h:00min in warm weather, integrated solar winder of 10 meters with 1m2 exchange, Smart Grid Ready, reinforcement resistance of 1.55 kW and ultra silent sound level of only 41 dB, ideal for very large energy applications of 5-6.
- ▷ Maximum capacity: 300L solar hybrid + AISI 304 stainless
- ▷ Maximum series COP: 3,8 with SCOP 3,55 - Leader efficiency
- ▷ Hybrid System: Aerotermia A+ + solar 10m integrated
- ▷ Commercial application: Families 5-6 people + small hotels
- ▷ Ecological R290: GWP 3 with maximum sustainable capacity
- ▷ No maintenance: Electronic anode + Smart Grid Ready
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: GIA-ATS-300SR290A - AISI 304 Inox + Solar Serpentine - R290 (0.15 kg) - Smart Grid
Security policy
Delivery policy
Refund policy
Heat Pump DHW Giatsu GIA-ATS-300SR290A Inox
Premium Hybrid System 300L 日本語 AISI 304 + Solar Serpentine Δ COP 3,8 Leader
Premium Hybrid System Maximum Capacity: 300L + Solar + Inoxidable
The heat pump DHW GIA-ATS-300SR290A of Giatsu represents the technological culmination in hybrid systems for sanitary hot water, combining the maximum capacity of 300 litres with stainless steel AISI 304 and integrated solar winding factory. With A+ energy rating in both climates and the leading POP of 3.8 (above the 200L model), this premium team offers up to 85% of energy savings by combining maximum efficiency aerothermics with free thermal energy, eliminating practically maintenance thanks to the natural R290 refrigerant electronic and revolutionary anode.
Designed for very large families of 5-6 people and light commercial applications looking for maximum capacity without compromising efficiency or sustainability, the GIA-ATS-300SR290A incorporates integrated solar winder of 10 meters with 1m2 of exchange surface and G 3/4" connections ready to connect thermal solar panels. Its stainless steel tank AISI 304 with a thickness of 1.5 mm and electronic anode ensures maximum durability without maintenance, while the R290 coolant with GWP of only 3 sets new sustainability standards in premium hybrid systems.
Optimized dimensions of Ø640×1850 mm and weight of 87 kg facilitate professional installation, while the ultra silent sound level of 41 dB and the Smart Grid Ready function allow perfect integration into modern homes and smart networks. With 8h:00min recovery time in warm weather, 1.55 kW reinforcement and automatic anti-legionela protection up to 70°C, this model represents the technological culmination for users seeking to combine maximum capacity (300L), leading energy efficiency (COP 3), absolute sustainability (R290 + solar) and maintenance-free durability in the most advanced hybrid system on the market.
Technical Specifications Hybrid System Maximum Capacity
Capacity and Performance Leader
- Capacity: 300 litres (maximum series)
- Total power: 1.60 kW
- Nominal power: 432W
- COP: 3,8 (absolute leader)
- SCOP medium climate: 3.11 (A+)
- SCOP warm climate: 3.55 (A+)
Premium Solar Hybrid System
- Solar serpentin: Factory integrated
- Coil length: 10 meters
- Coil diameter: 22 mm
- Exchange area: 1 m2
- Coil material: AISI 304
- Solar connection: G 3/4"
Advanced Operational Characteristics
- Time recovery: 9h:54min (average) / 8h:00min (heated)
- Resistance: 1.55 kW
- Temp. anti-legionela: 70°C
- Maximum DHW: 75°C
- Maximum pressure: 10 bar
- Certification: Keymark
Premium Technology
- Deposit: AISI 304 stainless steel (1.5 mm)
- Protection: Electronic record
- Refrigerant Gas: R290 (0.15 kg)
- GWP: 3 (ecological)
- Sound level: 41 dB(A)
- Smart Grid: Ready
Connectivity and Installation
- Dimensions: Ø640×1850 mm
- Net weight: 87 kg
- WiFi: Integrated
- Air flow: 350 m3/h
- Ventilator: 60W/1130 rpm
- Code: GIA-ATS-300SR290A
Exclusive Advantages Hybrid System Maximum Capacity
COP Leader 3rd Series
Maximum efficiency of the entire range. Higher even to the 200L model. Perfect optimization great volume.
Maximum Solar Hybrid
300L + winder 10m + aerotermia A+. Triple technology for maximum savings 85%.
Very Large Families
5-6 people + light commercial. Specific XL profile for maximum daily consumption.
AISI 304 + 300L
Maximum stainless capacity + electronic anode. No big maintenance.
How does the Hybrid 300L System work?
Русский
Maximum Priority Solar Mode
With 300L, the integrated solar winder maximizes free energy. Ideal large volumes hot water.
▪
Aerotermia COP 3.8
Without sun, leading aerotermia COP 3,8 automatically enters. Maximum efficiency even great capacity.
🏢
Hybrid Commercial Mode
Solar + simultaneous aerotermia for commercial applications. Hotels, offices, intensive use.
Comparison Hybrid ATS Series: 200L vs 300L
| Feature | GIA-ATS-300SR290A (300L) | GIA-ATS-200SR290A (200L) |
|---|---|---|
| Capacity | 300L (+50%) | 200L |
| Maximum COP | 3.8 | 3,61 |
| Target users | 5-6 people + commercial | 4-5 persons |
| Dimensions diameter | Ø640 mm | Ø560 mm |
| Net weight | 87 kg | 77 kg |
| Applications | Domestic XL + Commercial | Large Domestic |
Ideal applications Hybrid system 300L
👨👩👧👦👶👶
Very Large Families
5-6 high consumption
🏢
Commercial Ligero
Hotels, offices, clinics
Русский
Thermal Solar Maximum
Large solar panels
▪
Single Houses
Multiple bathrooms simultaneously
🌟
Maximum Sustainability
Eco-premium projects
Technical information
Reference code: GIA-ATS-300SR290A - AISI 304 Inox 300L + Integrated Solar Serpentine
Refrigerant Gas: R290 (0.15 kg) - GWP: 3 - CO2 eq: 0,00045T
Mandatory installation: Hydraulic security group 3/4" + siphon according to regulations
Certifications: Keymark European Δ Smart Grid Ready ♥ Integrated WiFi Δ COP 3,8 leader
SYSTEM TREAM 300L S
Maximum Capacity + Solar Energy + Ecological R290
Triple Premium Technology
300L AISI 304 + Serpentine Solar 10m + Aerotermia A+
The most advanced market solution for very large families
▪ COP Leader 3
Maximum Efficiency of the Series
Superior to model 200L - Optimization perfect high volume
Maximum save 85%
Solar + Aerotermia + Electrical Network
Summer: free solar energy - Winter: aerotermia A+
100% 100% Sustainable
R290 GWP 3 + Solar Energy
Refrigerant Gas natural + renewable source = zero impact
▪ 300L for families 5-6 persons
💎 AISI 304 without maintenance
🔇 Only 41 dB ultra silent
Русский Integrated solar serpentine 10m
▪ Smart Grid + WiFi integrated
🌿 R290 natural coolant
REVOLUTIONARY TECHNOLOGY
Unique 300L hybrid with integrated solar winding factory
Ideal for installations with existing or future thermal panels
▷ INCLUDING PROFESSIONAL INSTRUMENT
️ Extended warranty
🔧 National Technical Service
📋 Keymark certification
🌿 Ecological Certificate
GIA-ATS-300SR290A
Data sheet
- Brand
- Giatsu
- Refrigerant Gas
- R290
- Consumption profile
- XL
- Capacity (L)
- 300
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Electrónico
- Energy efficiency DHW
- A+
- SCOP
- 3,11
- COP (Tª Air 14ºC)
- 3,11
- Weather Heating Accumulator (Tª Air 7ºC)
- 6h:20min
- Power Electrical Resistance (W)
- 1.550
- Maximum production temperature DHW with heat pump
- 65
- Max. DHW with support electrical resistance
- 75
- Additional coil
- Sí
- Additional coil surface (m2)
- 1,00
- Sound level DB
- 55
- High (mm)
- 1.850
- Width (mm)
- 640
- Background (mm)
- 640
- Weight (kg)
- 87
- WiFi
- Incluido
