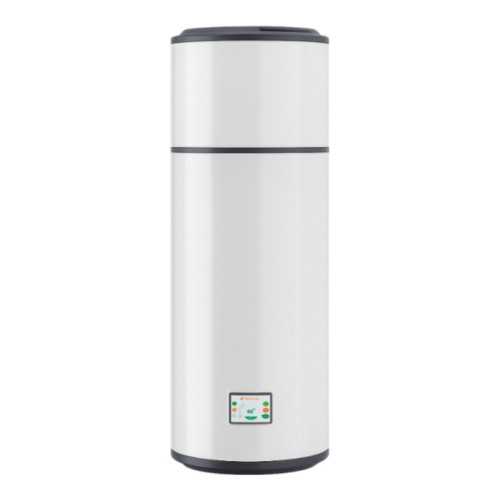

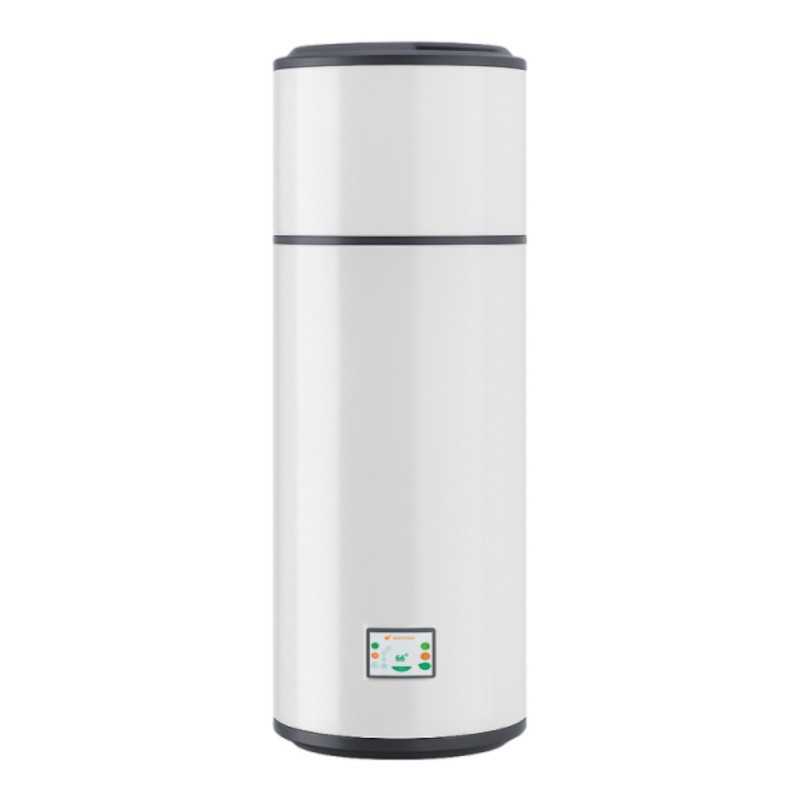

Heat Pump DHW Mitsubishi Electric ATW-DHW-DV160 PRO
NOVEDAD Gama Ecodan PRO 日本語 160L Compact R290 Ecological Δ Mural/Pie
La Heat Pump DHW Mitsubishi Electric ATW-DHW-DV160 PRO revolutionizes the concept of aerothermal versatility as an exclusive PRO model of the Ecodan Gama. With 160 litres in ultra-compact format 1370×Ø580mm, it integrates organic coolant R290 (only 150g), exceptional COP of 3,83 and unique possibility wall or foot mount. Its record 4h 20min warming time, maximum temperature of 65°C and 47kg feather weight make it the perfect solution for reduced spaces that demand maximum Japanese efficiency, absolute sustainability and unprecedented installation flexibility.
▪ MODEL PRO
Exclusive Gama Ecodan
R290 Ecological
Only 150g natural
Mural/Pie
Unique versatility
・ 4h 20min
Record heating
Key Specifications
Capacity: 160 litres
Exceptional COP: 3,83 (14°C)
Useful water 40°C: 179L
Refrigerant Gas: R290/150g
Installation: Wall or foot
Record time: 4h 20min
Weight feather: 47kg
Max temperature: 65°C BC
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump Mitsubishi Electric ATW-DHW-DV160 PRO
Referencia: ATW-ACS-DV160 PRO F
€1,696.03
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Mitsubishi Electric ATW-DHW-DV160 PRO
NOVEDAD Gama Ecodan PRO 日本語 160L Compact R290 Ecological Δ Mural/Pie
La Heat Pump DHW Mitsubishi Electric ATW-DHW-DV160 PRO revolutionizes the concept of aerothermal versatility as an exclusive PRO model of the Ecodan Gama. With 160 litres in ultra-compact format 1370×Ø580mm, it integrates organic coolant R290 (only 150g), exceptional COP of 3,83 and unique possibility wall or foot mount. Its record 4h 20min warming time, maximum temperature of 65°C and 47kg feather weight make it the perfect solution for reduced spaces that demand maximum Japanese efficiency, absolute sustainability and unprecedented installation flexibility.
▪ MODEL PRO
Exclusive Gama Ecodan
R290 Ecological
Only 150g natural
Mural/Pie
Unique versatility
・ 4h 20min
Record heating
Key Specifications
Capacity: 160 litres
Exceptional COP: 3,83 (14°C)
Useful water 40°C: 179L
Refrigerant Gas: R290/150g
Installation: Wall or foot
Record time: 4h 20min
Weight feather: 47kg
Max temperature: 65°C BC
Security policy
Delivery policy
Refund policy
La Heat Pump DHW Mitsubishi Electric ATW-DHW-DV160 PRO redefines the standards of versatility and sustainable innovation as the exclusive PRO model of the new Ecodan Gama. This revolutionary unit of 160 liters stands out as the only one on the market that combines organic refrigerant R290 (just 150g), possibility of wall or foot assembly and Japanese technology of maximum efficiency in ultra-compact format.
Its exceptional COP of 3,83 and capacity to generate 179 litres of useful water at 40°C from a 160L deposit sets new record in thermal use, while its record heating time of only 4h 20min and maximum temperature of 65°C far exceed conventional performances. The premium construction in stainless steel F18 Duplex 2205 with feather weight of 47kg facilitates installation without structural limitations.
Pioneer in sustainability, employs R290 natural refrigerant with minimal environmental impact, while its ultra-compact dimensions of only 1370×Ø580mm and wall or foot mounting flexibility make it perfect solution for reduced spaces, premium apartments and projects with dimensional restrictions. The ErP Ready compatibility ensures complete preparation for future photovoltaic installations.
▪ Model PRO Exclusive
Series: PRO Exclusive Ecodan
Exceptional COP: 3,83 (14°C)
Classification: A+ energy
Profile: M (medium) optimized
Organic Revolution R290
Refrigerant Gas: R290 natural
Minimum charge: Just 150g
Impact: Minimum environmental
Sustainability: Ecological maximum
Ver Unique versatility
Amount: Wall or foot
Dimensions: 1370×580mm
Weight feather: Only 47kg
Flexibility: Installation without limits
▪ Performance
Capacity: 160L → 179L useful
Record time: 4h 20min
Max temperature: 65°C BC
Thermal power: 1750W
️ Premium Construction
Material: Stainless Steel F18 Duplex 2205
Isolation: Polyurethane 50mm
Maximum pressure: 7 bar
Durability: Japanese construction
Simplified installation
Conduct: Ø160mm up to 22m
Connections: 19,05mm (3⁄4")
Sonority: 53 dB(A)
Flexibility: Single wall/foot
Exclusive Advantages Model PRO
▪
MODEL PRO Unique
Exclusive Gama Ecodan
🌿
R290 150g Minimum
Maximum sustainability
🔧
Mural/Pie Unique
Absolute versatility
▪
4h 20min Récord
Faster heating
▪
Premium Apartments
Reduced spaces with versatile wall/foot mounting and maximum ecological efficiency
🌿
Ecological projects
Sustainable constructions with natural R290 coolant and minimal impact
🔧
Facilities
Projects with dimensional restrictions that require wall/foot flexibility
Técnica Technical information
Energy classification: A+ according to regulation (EU) 812/2013. Charging profile: M (medium) optimized.
Installation: Wall or foot mounting. Conducts Ø160mm up to 22m. Dimensions ultracompactas 1370×Ø580mm. Weight 47kg.
Operation: Refrigerant Gas R290/150g ecological. Maximum temperature 65°C BC, 70°C support. Air range -5°C ~ +40°C.
Regulations: It meets European directives. CE marking. Antilegionella function included. Not manufactured by Mitsubishi Electric, check availability.
▪ MODEL PRO MITSUBISHI ELECTRIC DV160
EXCLUSIVO Gama Ecodan Δ R290 Ecological Δ Mount Mural/Pie Δ COP 3,83
▪
MODEL PRO
Exclusive Gama Ecodan
🌿
R290 150g
Minimum ecological
🔧
MURAL/PIE
Unique versatility
▪
4H 20MIN
Record heating
Why choose the MODEL PRO DV160?
▪
EXCLUDING PRO
Unique series model
🌿
MÁX ECOLÓGICO
R290 only 150g
🔧
LIBRE INSTALMENT
Wall or foot 47kg
▪
RÉCORD VELOCITY
4h 20min faster
S️ Guarantees Model PRO
▷ Warranty Mitsubishi Electric
▷ Exclusive PRO model
▷ Organic R290
▷ Wall/foot
▷ Stock available
▷ 47kg weight feather
ATW-ACS-DV160 PRO F
Data sheet
- Brand
- Mitsubishi Electric
- Refrigerant Gas
- R290
- Consumption profile
- L
- Capacity (L)
- 160
- Type of installation
- Suelo
- Type
- Compacta
- Power consumed Nominal (W)
- 254
- Energy efficiency DHW
- A+
- COP (Tª Air 14ºC)
- 3,20
- Weather Heating Accumulator (Tª Air 7ºC)
- 7h: 15min
- Power Electrical Resistance (W)
- 1.500
- Maximum production temperature DHW with heat pump
- 65
- Max. DHW with support electrical resistance
- 75
- Additional coil
- No
- Sound level DB
- 49
- High (mm)
- 1.531
- Width (mm)
- 530
- Background (mm)
- 550
- Weight (kg)
- 53
- WiFi
- Integrado
