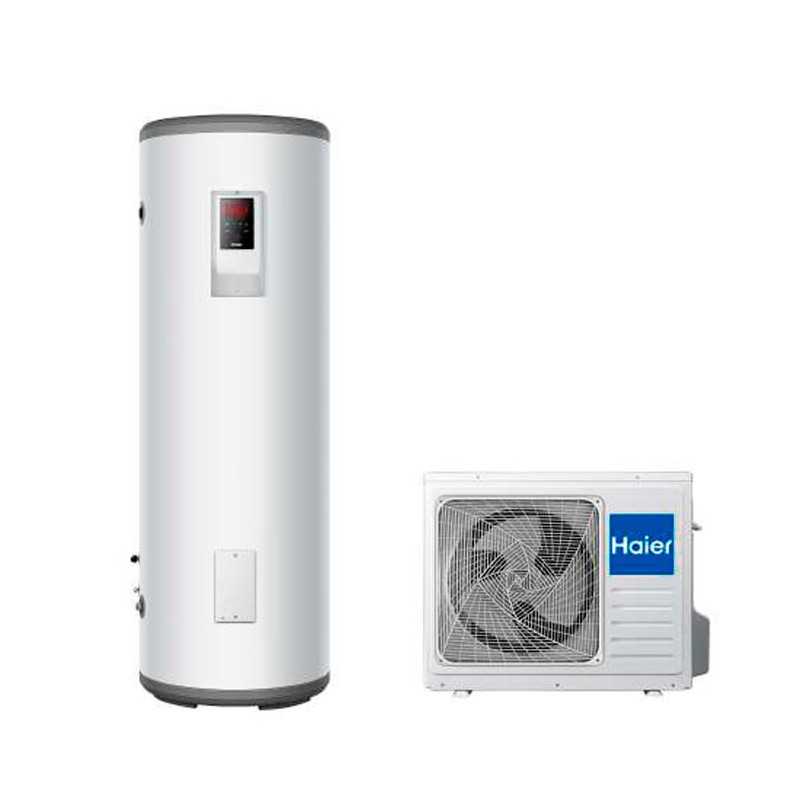

Haier HP300S1 DHW Heat Pump

Heat Pump DHW Haier HP300S1

Experience a new standard of efficiency and comfort with the Split Aeroterm with Heat Pump Haier. Designed to deliver exceptional performance, this air conditioning system is the smart choice for your home.

Thermos with heat pump HaierAre available in 200 and 300 L capacity, offering a lot of hot water for the home

This type of water accumulator with heat pump, provides the hot water thanks to the heat in the air, obtaining an energy saving, as they only use the energy needed to make the compressor and the fan work

Thanks to the micro-channel capacitor you get a higher contact surface, ensuring superior heat transfer performance and lower energy consumption

The HP300S1 aerothermic has the particularity regarding the other models of its aerothermal range that has a outdoor Unit and the tank separately, which must be connected by frigorny line (as an air conditioner is treated). This type of installation is beneficial on many occasions.

The tank has an insulation of 500 mm polyurethane foam, providing excellent thermal insulation and achieving minimize heat loss. In addition, it has a vitrified coating capable of resisting up to 850oC protecting the tank against corrosion

On the other hand, the new HP300S1 heat pump aerothermal accumulator Haier has two magnesium anodes to protect the tank from corrosion of the water. In addition, the system is certified with an IPx4 degree of protection for use in wet environments and to ensure a long service life

The split aeroterm Haier HP300S1 has multiple security systems. It has protection against freezing, defrosting, temperature protection, overload protection and legionla protection

In addition, with its 5" LED display with simple and easy-to-smart touch control you can configure and control the aeroterm to achieve greater efficiency and better use of the equipment thanks to its 5 working modes

CHARACTERISTICS HP300S1 Heat Pump

·     Micro-channel Condenser: greater contact surface and less energy consumption.

·     Powerful Compressor: Fast and effective heating.

·     Intelligent operation: works during the hours with lower electrical rates.

·     A+ Energy Class: guarantees exceptional energy efficiency.

·     COP Up to 3.8: Leading performance coefficient in your class, ensuring optimal performance.

·     50 mm PUF insulation: ensures heat retention and sustained efficiency.

·     Timer Out of Hours Punta: full control over operation, optimizing electrical consumption.

·     Capacity: 200 and 300 L

·     Maximum Water Temperature: reaches up to 65 °C using only the heat pump.

·     3 years Total Guarantee

SPLIT CONTROL PANEL

5" LED display with touch control that allows access to the 5 work modes of the aerotermo

·     AUTO Mode:The heat pump works primarily and the electric heater works as support.

·     ECO Mode:The heat pump works 24 hours a day, but the electric heating only works outside the peak hours

·     ECO+ Mode:Both the heat pump and the electric heater only work outside the peak hours.

·     VACATIONS mode:The unit stays in wait mode during the holidays and is automatically restarted to prepare enough hot water only one day before the user returns on vacation.

·     TURBO Mode:Heat pump and electric heater work at the same time to supply hot water quickly

PRINCIPLES

·     Protection of low isolation:A differential relay protects the heat pump in case of failure in the connection to the ground.

·     Protecting the compressor: after a power cut, the compressor waits 10 minutes before starting again.

·     Frost protection:If the tank temperature is less than 7oC, the resistances are activated until reaching 15oC.

·     Defrosting: the 4-way valve reverses the cycle to defrost the evaporator.

·     Temperature protection:the heat pump stops working if the operating temperature is out of the allowed limits.

·     Overload protection:The fan is controlled according to ambient temperature to protect the overload compressor.

·      Anti legionela:tank temperature rises automatically to 65oC every 7 days, to destroy any bacteria formed inside.

FUNCIONAMIENT AEROTERMO WITH BOMBA DE CALOR

The heat pump takes the surrounding air heat and transfers it to the water in a closed tank. The coolant (R134A) changes the state, using compression and expansion cycles, absorbing the heat from the air at low temperature and transferring it to the sanitary water at a higher temperature

TECHNICAL DATA HP300S1
